Descriere

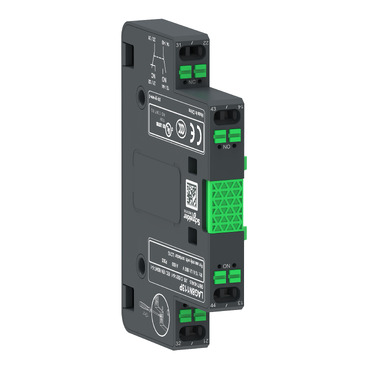

Bloc de contacte auxliare pentru contactor TeSys Giga, 1NO + 1NC, montare pe lateral, terminale push-in L1/R1
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Type of electric connection | Spring clamp connection |
| Model/type | |
| Model | Integrable |
| Lamp holder | None |
| Number of fault-signal switches | 0 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 10 A |
| Mounting/installation | |
| Mounting method | Side mounting |
| Package 1 | |
| volume | 226,1 cm3 |
| weight | 60 g |
| length | 9,5 cm |
| width | 6,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481047892 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 3,979 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 64 |
| qmin | 64 |
| um | CT |
| gtin | 13606481047899 |
