Descriere

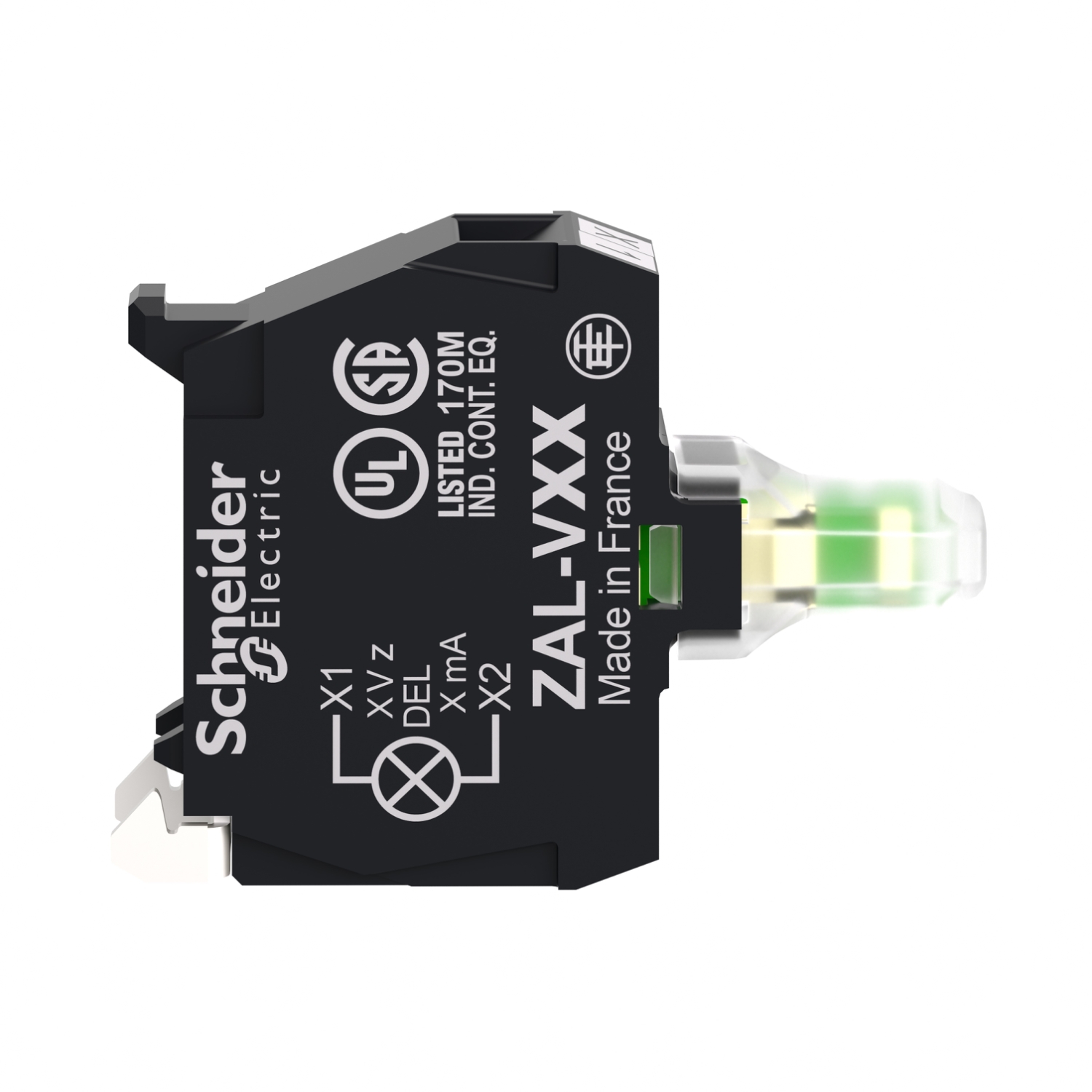

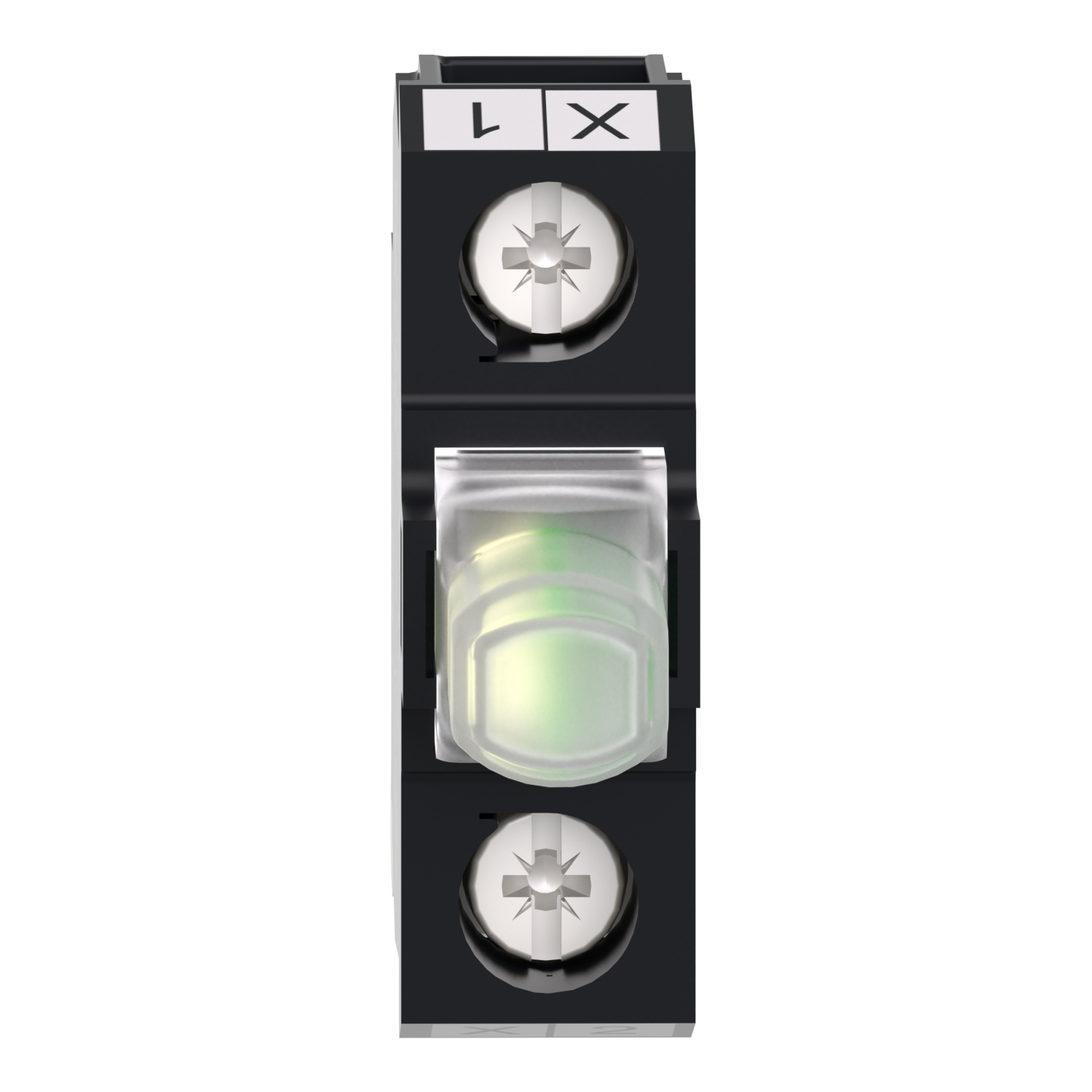

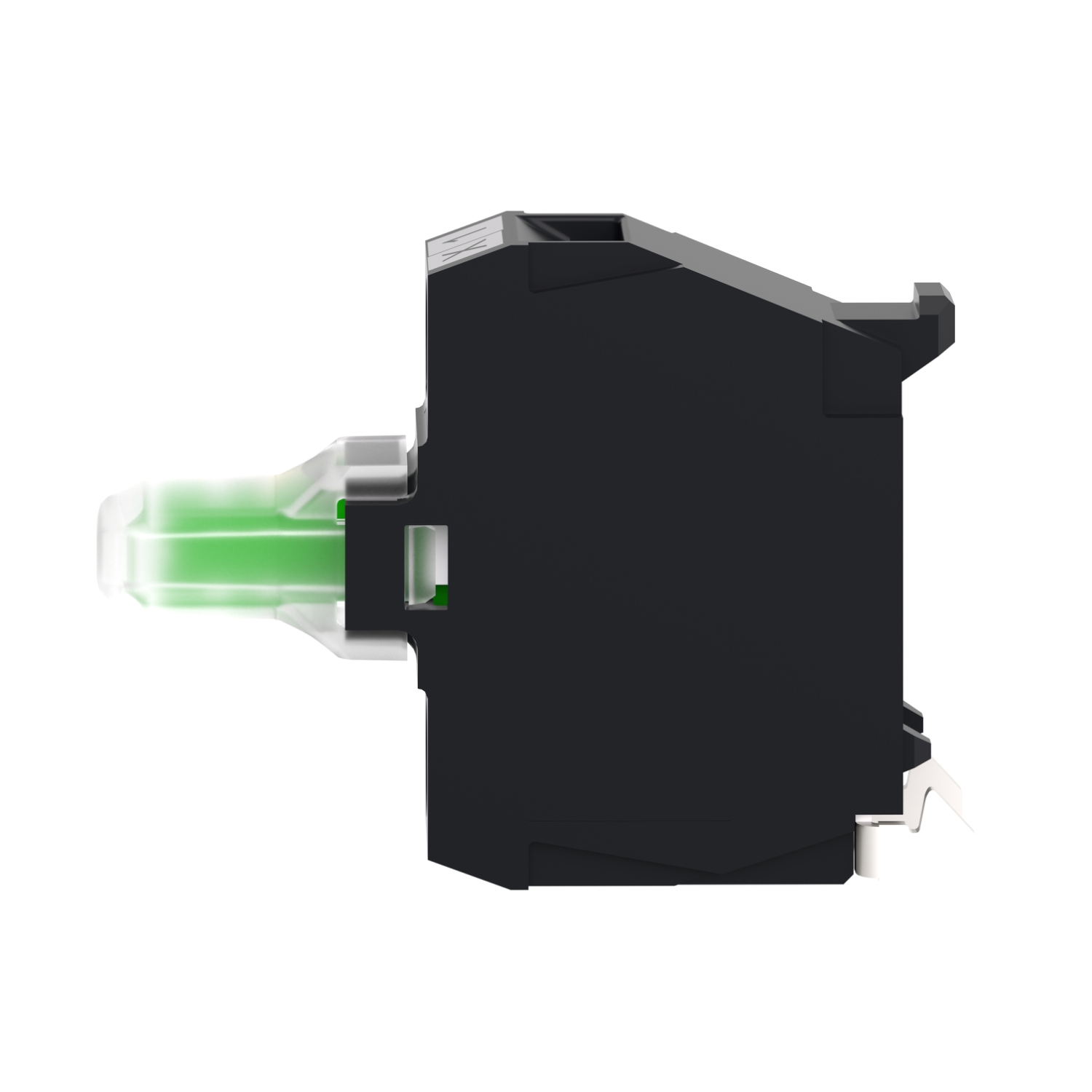

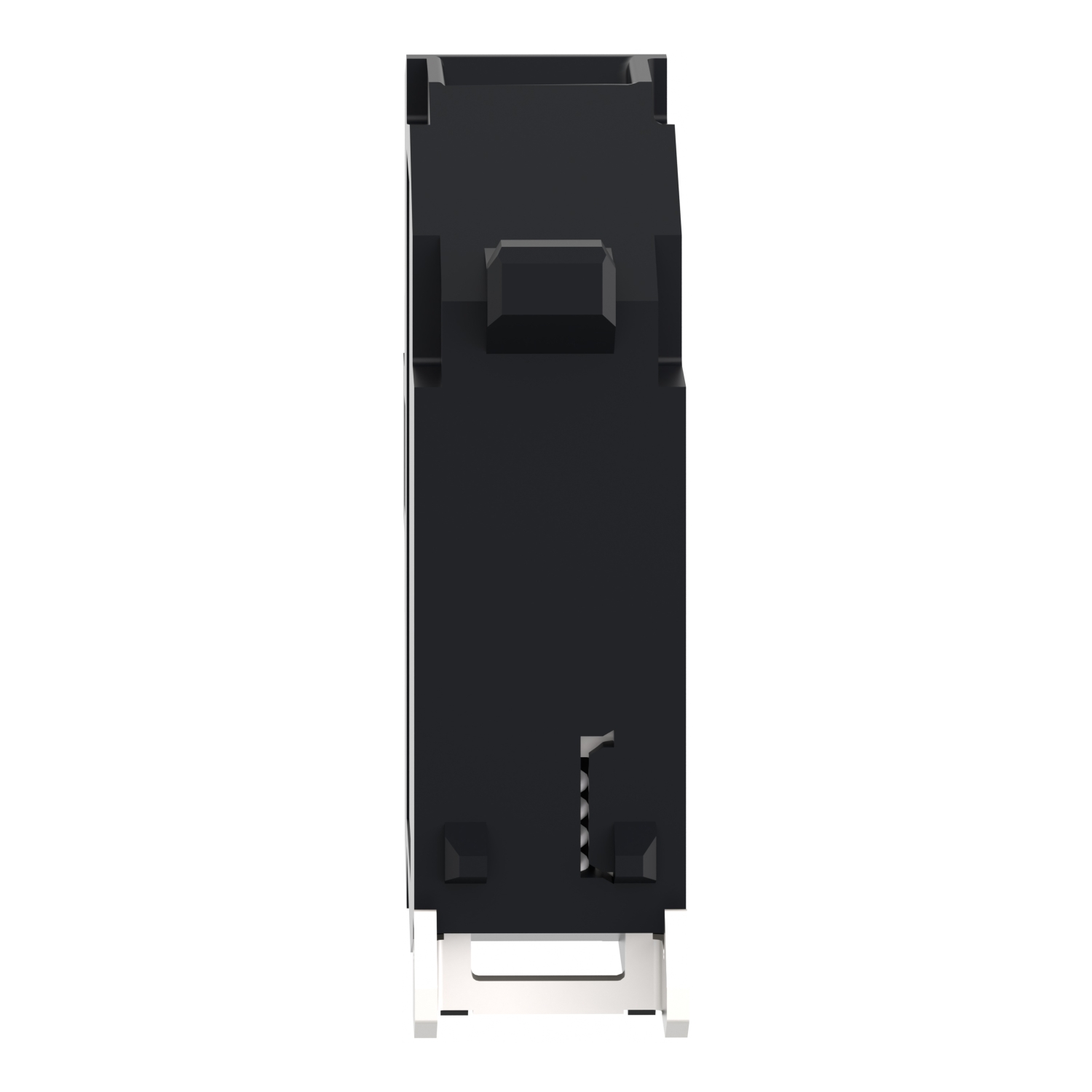

Bloc De Lumini Pentru Post De Comanda - Alb - Led Integral - 230 - 240 V
Documente
Specificatii
| Model/type | |
| With light source | Yes |
| Lamp type | LED |
| With integrated diode | Yes |
| Lamp holder | None |
| Mounting/installation | |
| Type of fastening | Floor fastening |
| Connection | |
| Connection type auxiliary circuit | Screw connection |
| Electrical | |
| With integrated voltage decreasing resistor | No |
| Rated voltage Ue at AC 50 Hz | 230 V |
| Rated voltage Ue at DC | - |
| Voltage type for actuating | AC |
| Rated voltage Ue at AC 60 Hz | 230 V |
| Colour | |
| Colour light source | White |
| Options | |
| Transformer integrated | No |
| Package 1 | |
| volume | 16,83 cm3 |
| weight | 10 g |
| length | 4,5 cm |
| width | 3,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110115215 |
| Package 2 | |
| volume | 143,55 cm3 |
| weight | 58 g |
| length | 5,5 cm |
| width | 4,5 cm |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 13389110115212 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 4,964 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 400 |
| qmin | 400 |
| um | CT |
| gtin | 43389110115213 |
Recomandari
