Descriere

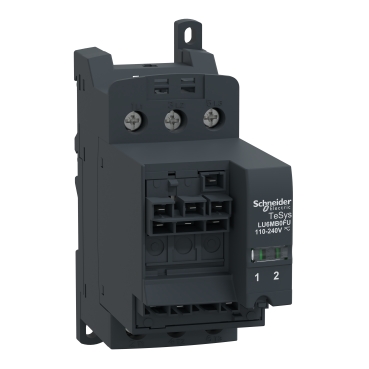

Bloc Inversor Lu6 - 32 A - 110 - 240 V C.C./C.A. 50 - 60 Hz - Montare Separata
Documente
Fisa tehnica
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | - |
| Number of normally open contacts as main contact | - |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 110 V |
| Rated control supply voltage AC 60 Hz | 110 V |
| Rated operation power at AC-3, 400 V | 18.5 kW |
| Rated operation power NEMA | 14.9 kW |
| Rated operation current Ie at AC-1, 400 V | - |
| Voltage type for actuating | AC/DC |
| Rated operation current Ie at AC-3, 400 V | 38 A |
| Rated control supply voltage DC | 110 V |
| Mounting/installation | |
| Suitable for rail mounting | Yes |
| Model/type | |
| Function | Reversing contactor |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 1074,45 cm3 |
| weight | 444 g |
| length | 13 cm |
| width | 5,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110106664 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 4,722 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 43389110106662 |
