Descriere

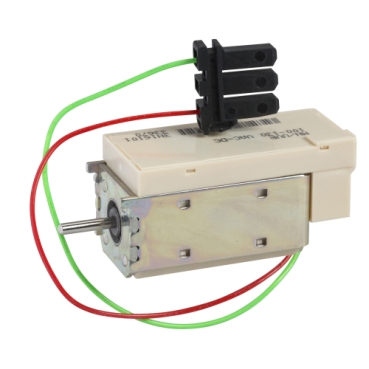

Bobina Declansare La Tensiune - Mx Sau Xf - 200 - 250 V C.C./C.A. 50/60 Hz
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 200 V |
| Rated control supply voltage AC 60 Hz | 200 V |
| Voltage type for actuating | AC/DC |
| Rated control supply voltage DC | 200 V |
| End value adjustment range undelayed short-circuit release | - |
| Application | |
| Suitable for motor safety switch | No |
| Suitable for power circuit breaker | Yes |
| Suitable for off-load switch | Yes |
| Suitable for overload relay | No |
| Connection | |
| Type of electric connection | Flat plug-in connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | - |
| Package 1 | |
| volume | 162,36 cm3 |
| weight | 151 g |
| length | 8,2 cm |
| width | 6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430336624 |
| Package 2 | |
| volume | 2197,8 cm3 |
| weight | 1,557 kg |
| length | 18,5 cm |
| width | 13,2 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13303430336621 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 18,64 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 43303430336622 |
