Descriere

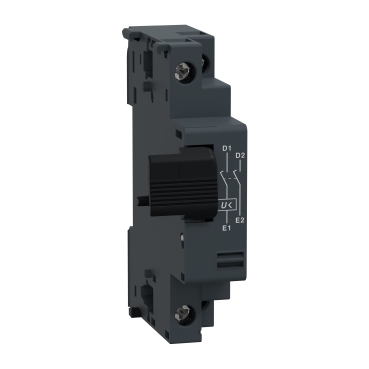

Releu Declansare La Tensiune - Tesys Gv-Ax - 415 - 440 V C.A. 50 Hz
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 415 V |
| Rated control supply voltage AC 60 Hz | - |
| Voltage type for actuating | AC |
| Rated control supply voltage DC | - |
| Application | |
| Suitable for motor safety switch | Yes |
| Suitable for power circuit breaker | Yes |
| Suitable for off-load switch | No |
| Suitable for overload relay | No |
| Connection | |
| Type of electric connection | Screw connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Options | |
| Delayed | No |
| Package 1 | |
| volume | 267,75 cm3 |
| weight | 130 g |
| length | 9 cm |
| width | 8,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110346336 |
| Package 2 | |
| volume | 9000 cm3 |
| weight | 2,289 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 16 |
| qmin | 16 |
| um | CT |
| gtin | 23389110346330 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 88,3 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 512 |
| qmin | 512 |
| um | PF |
