Descriere

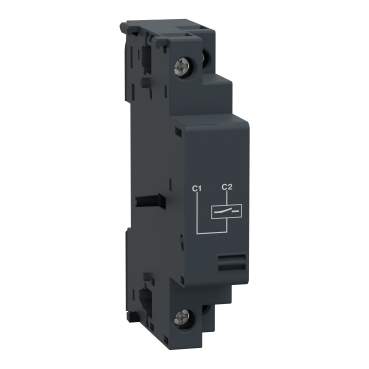

Releu Declansare La Tensiune - Tesys Gv-As - 415 - 440V C.A. 50 Hz
Documente
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 415 V |
| Rated control supply voltage AC 60 Hz | 480 V |
| Rated control supply voltage DC | - |
| Voltage type for actuating | AC |
| End value adjustment range undelayed short-circuit release | - |
| Application | |
| Suitable for motor safety switch | No |
| Suitable for power circuit breaker | Yes |
| Suitable for off-load switch | No |
| Suitable for overload relay | No |
| Connection | |
| Type of electric connection | Screw connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | - |
| Package 1 | |
| volume | 271,908 cm3 |
| weight | 113 g |
| length | 8,3 cm |
| width | 3,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110344127 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 3,876 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 32 |
| qmin | 32 |
| um | CT |
| gtin | 13389110344124 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 70,016 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 512 |
| qmin | 512 |
| um | PF |
