Descriere

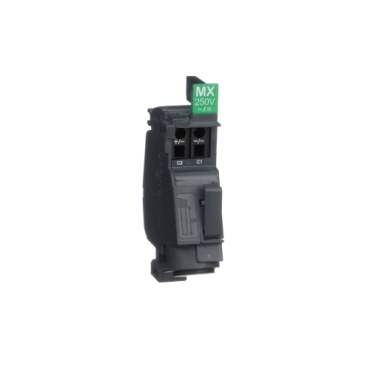

Ramificatie (Arc) Mx-208 - 240 V Ac 60Hz-220…240 50Hz-277 V Ac 60Hz-250 V Dc
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 220 V |
| Rated control supply voltage AC 60 Hz | 208 V |
| Rated control supply voltage DC | 250 V |
| Voltage type for actuating | AC/DC |
| End value adjustment range undelayed short-circuit release | - |
| Application | |
| Suitable for motor safety switch | No |
| Suitable for power circuit breaker | Yes |
| Suitable for off-load switch | Yes |
| Suitable for overload relay | No |
| Connection | |
| Type of electric connection | Spring clamp connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | - |
| Package 1 | |
| volume | 178,5 cm3 |
| weight | 59 g |
| length | 8,5 cm |
| width | 6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606485413075 |
| Package 2 | |
| volume | 1008 cm3 |
| weight | 651 g |
| length | 14 cm |
| width | 8 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606485413072 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 5,2 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 80 |
| qmin | 80 |
| um | CT |
| gtin | 43606485413073 |
