Descriere

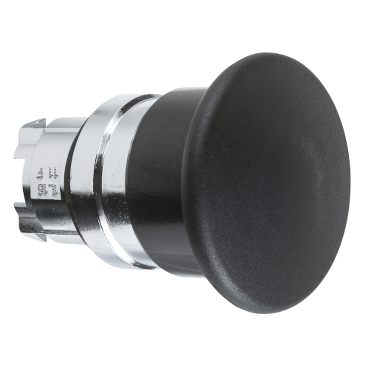

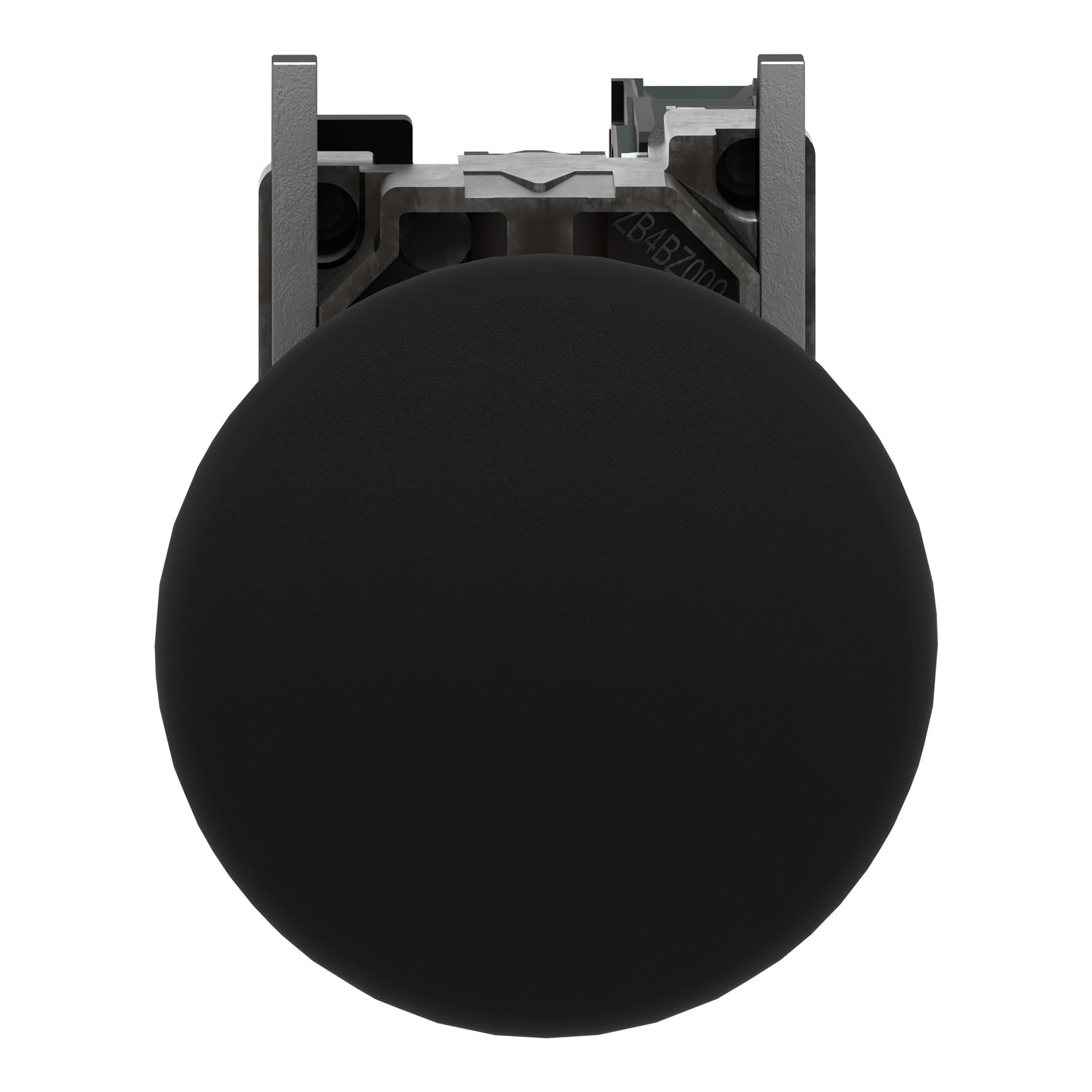

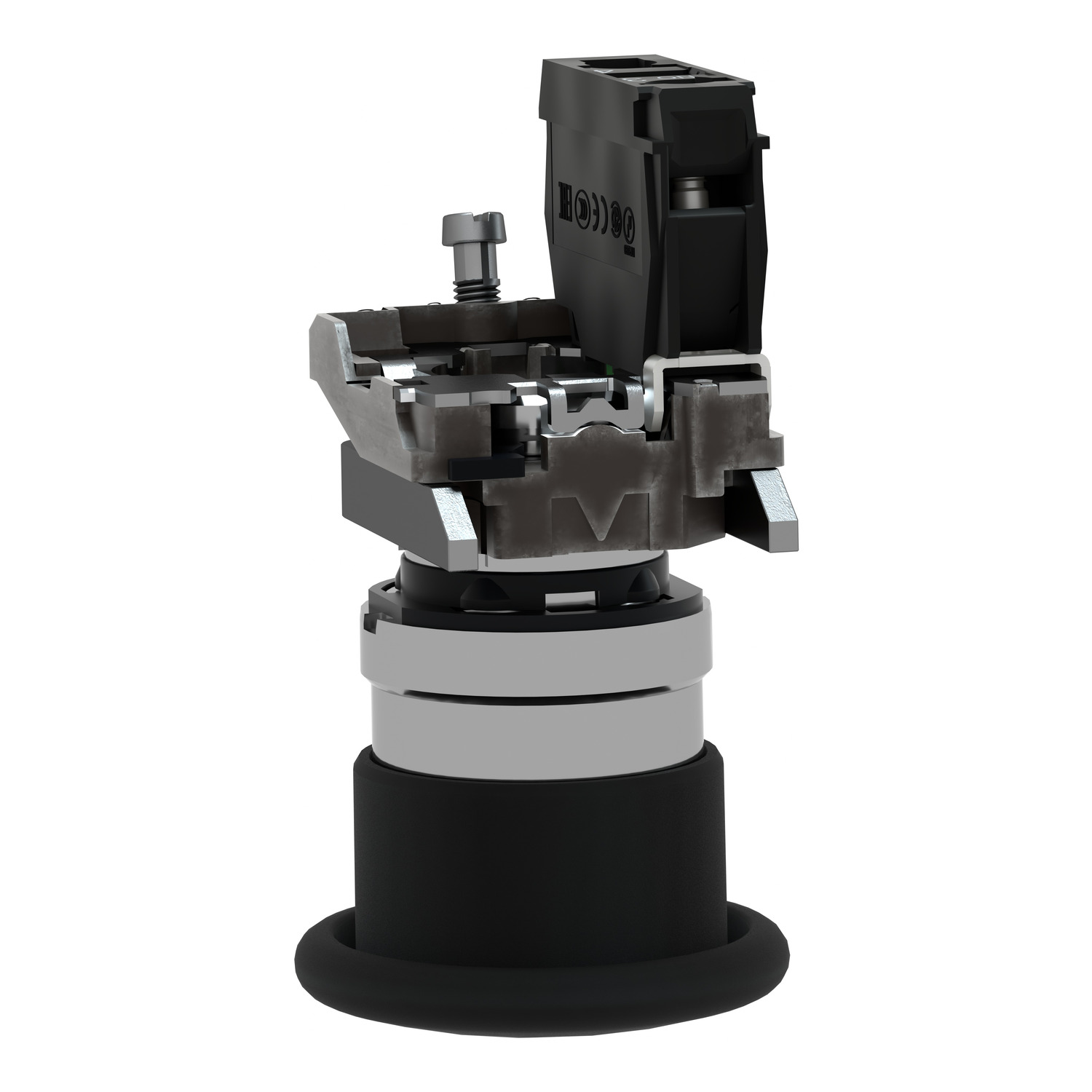

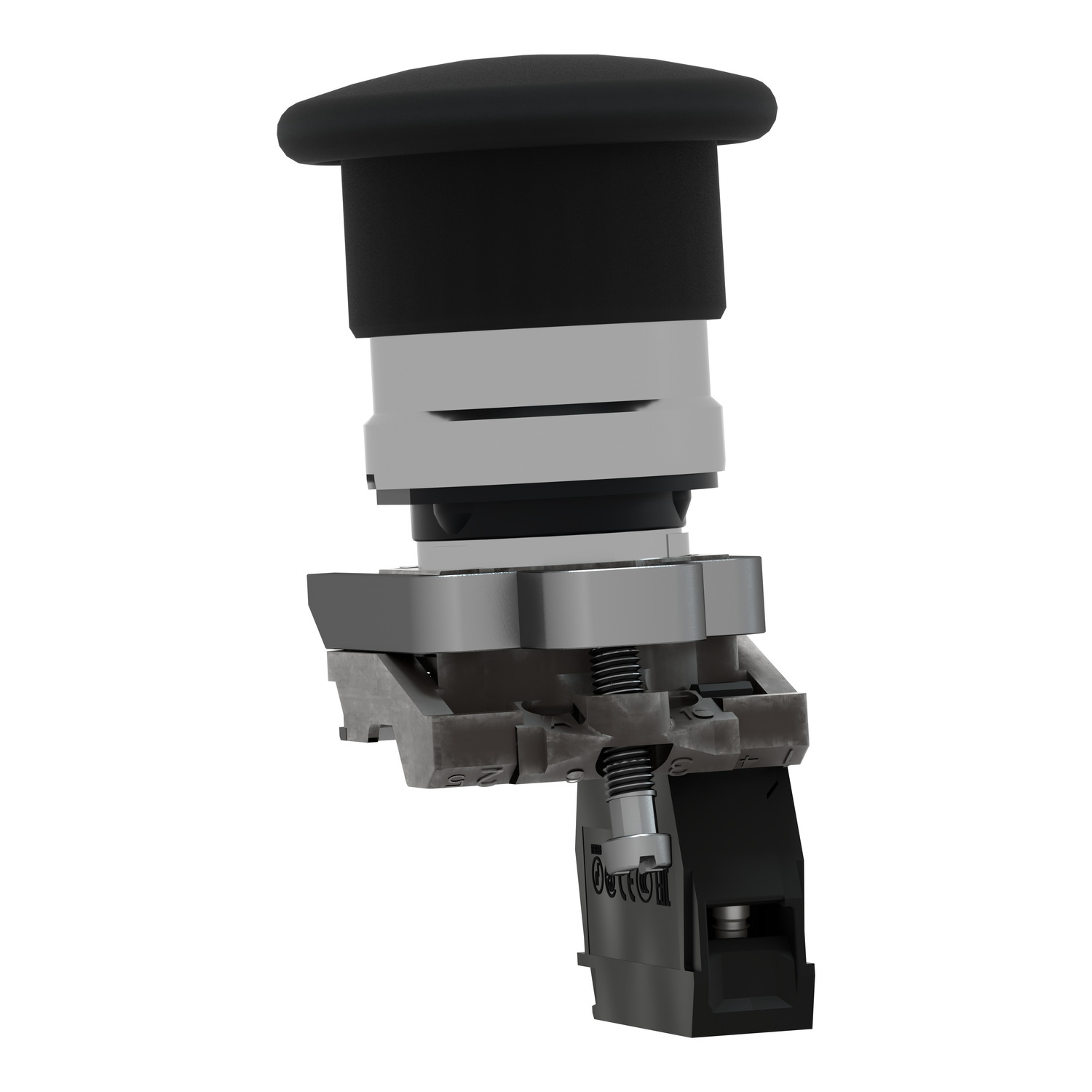

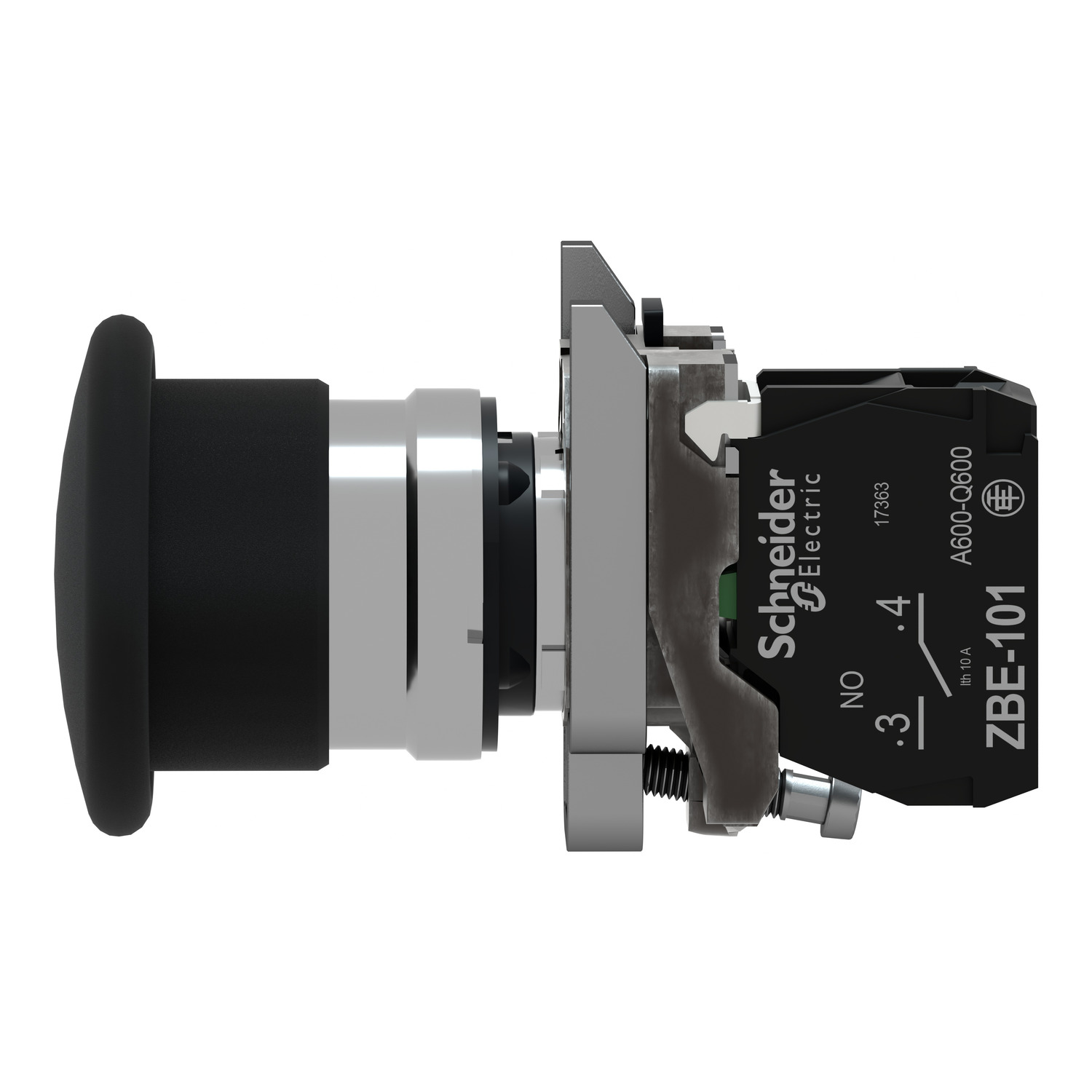

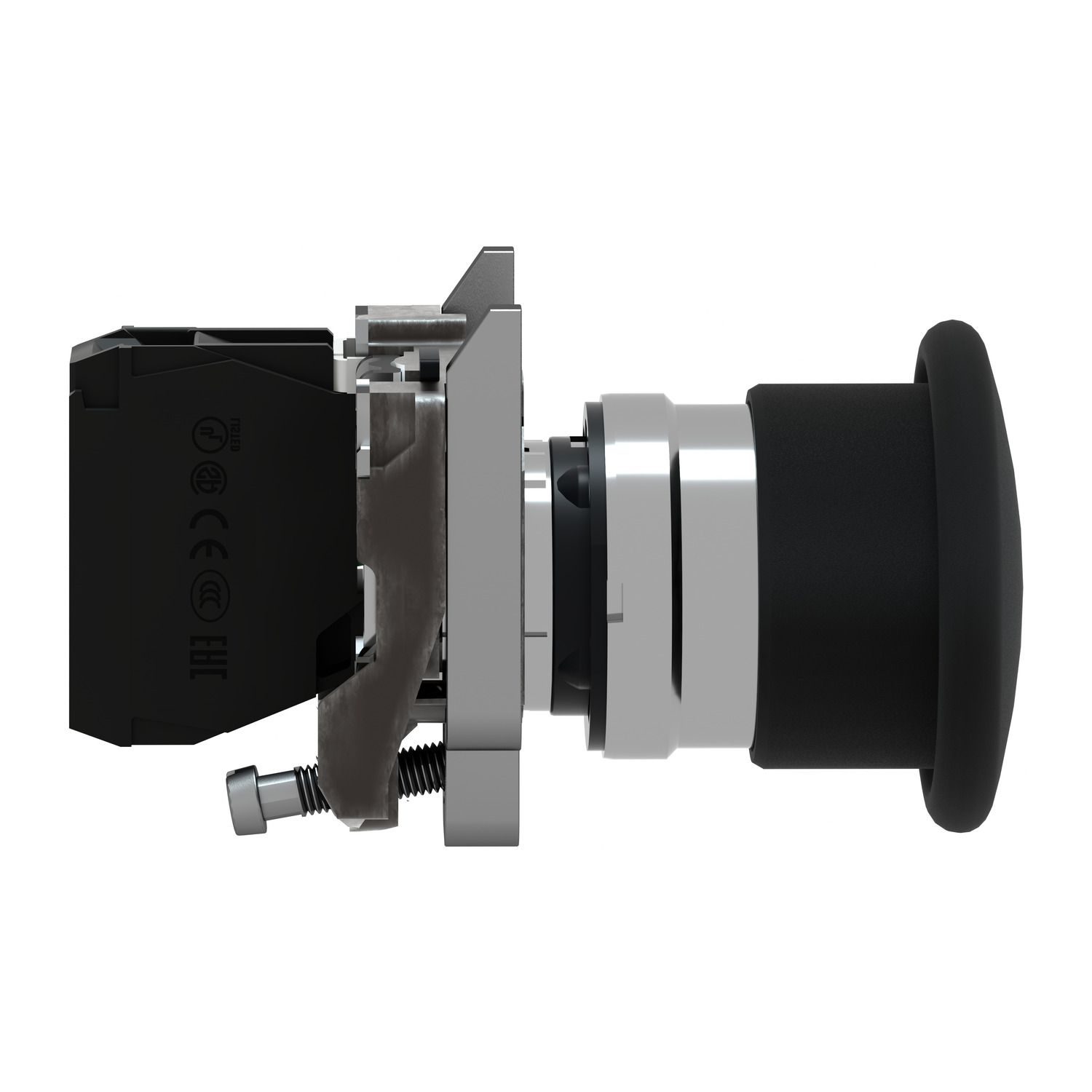

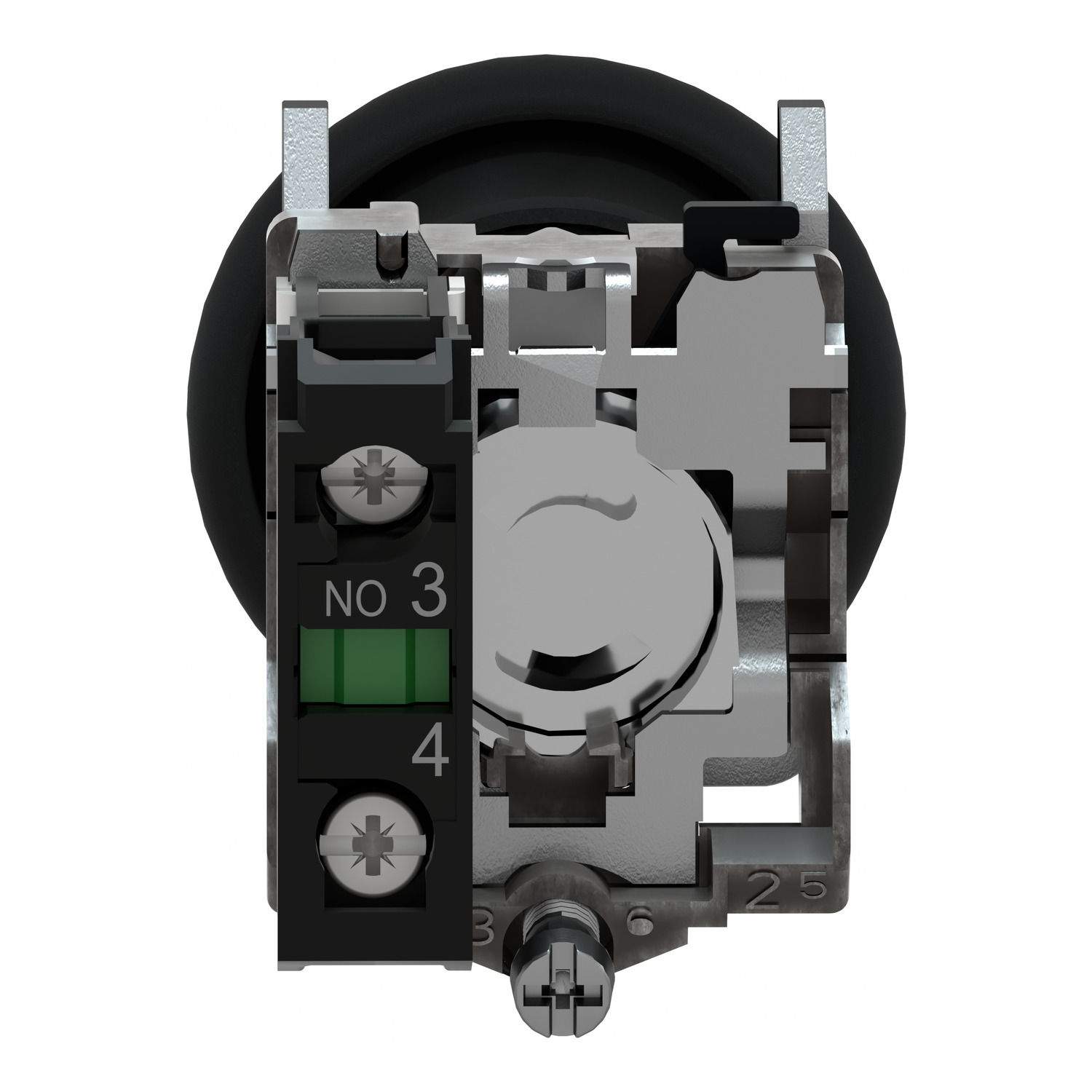

Buton complet negru cu capt tip ciuperca Ø40 mm, Ø22 cu revenire cu arc 1NO
Documente
Specificatii
| Options | |
| Spring-return | Yes |
| Switching function latching | No |
| Colour | |
| Colour front ring | Chrome |
| Colour button | Black |
| Connection | |
| Type of electric connection | Screw connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Electrical | |
| Supply voltage lamp | - |
| Measurements | |
| Width opening | - |
| Hole diameter | 22.5 mm |
| Height opening | - |
| Material | |
| Material front ring | Metal |
| Model/type | |
| Type of button | Mushroom |
| Construction type lens | Round |
| With front ring | Yes |
| Number of command positions | 1 |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 4X |
| Application | |
| Suitable for lighting | No |
| Package 1 | |
| volume | 218,7 cm3 |
| weight | 126 g |
| length | 9 cm |
| width | 4,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110118865 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 5,53 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 42 |
| qmin | 42 |
| um | CT |
| gtin | 43389110118863 |
