Descriere

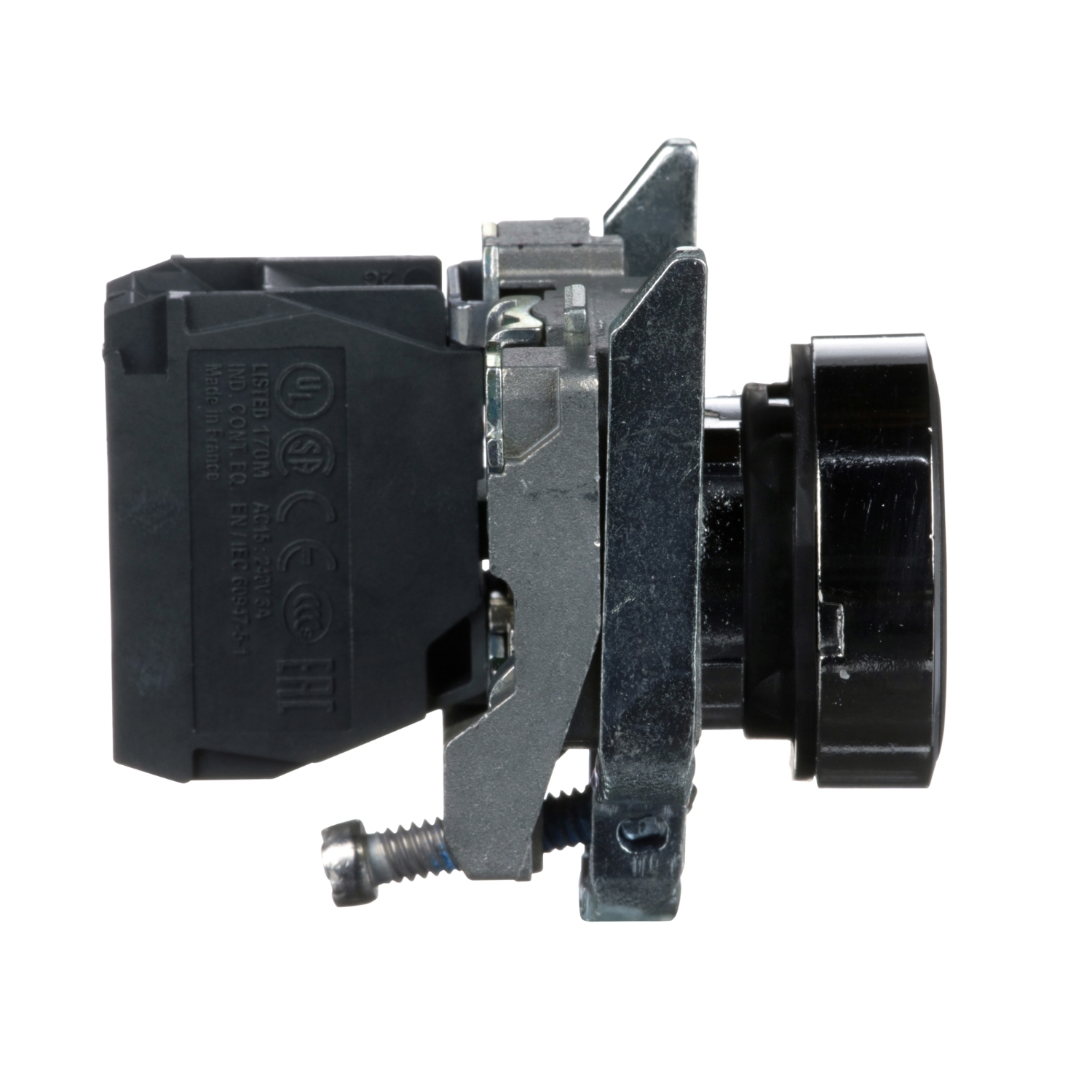

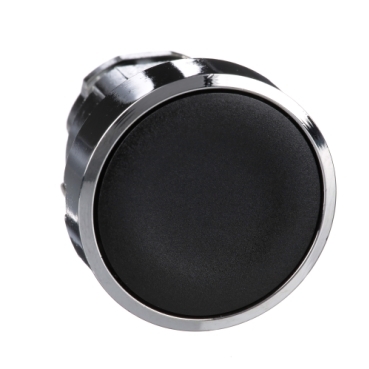

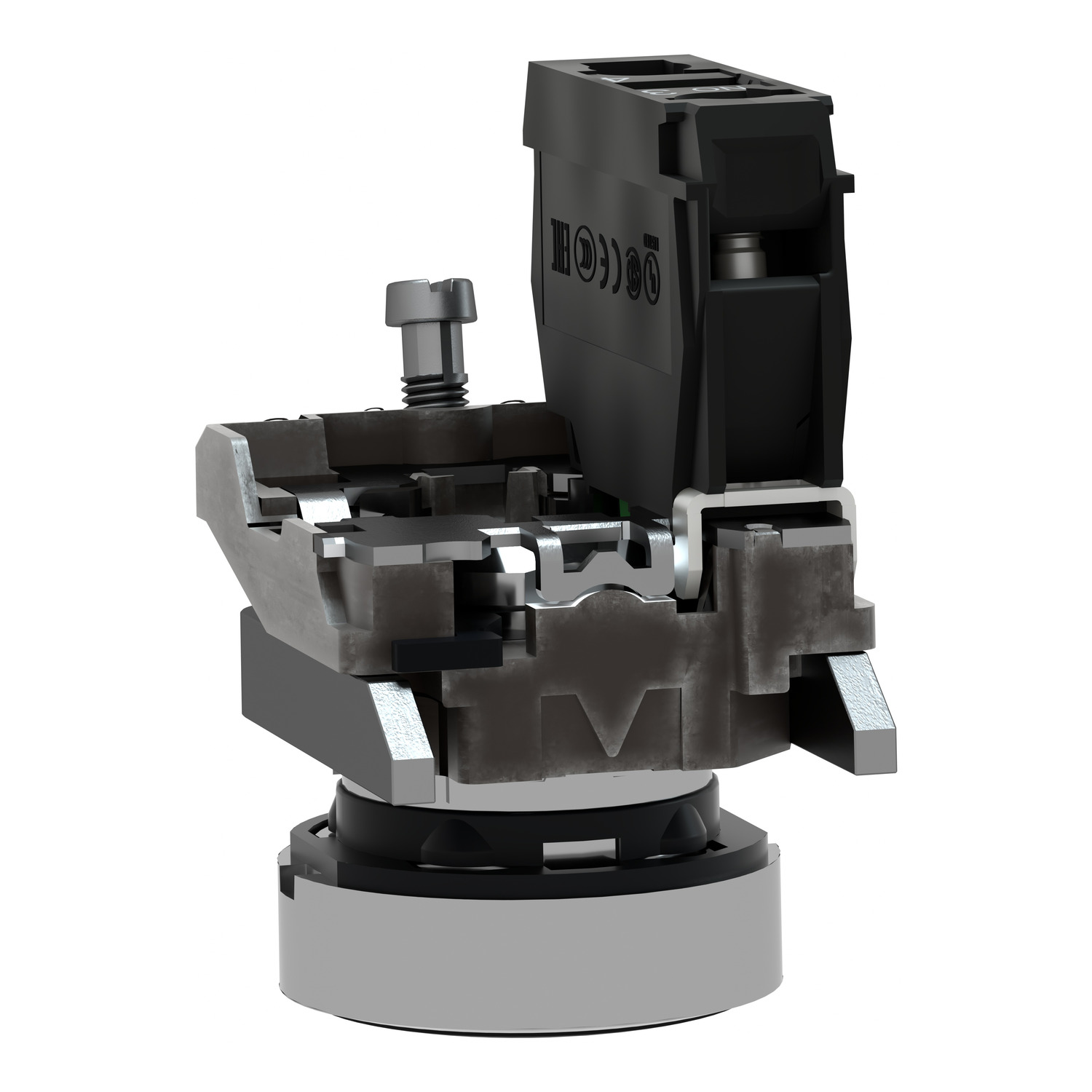

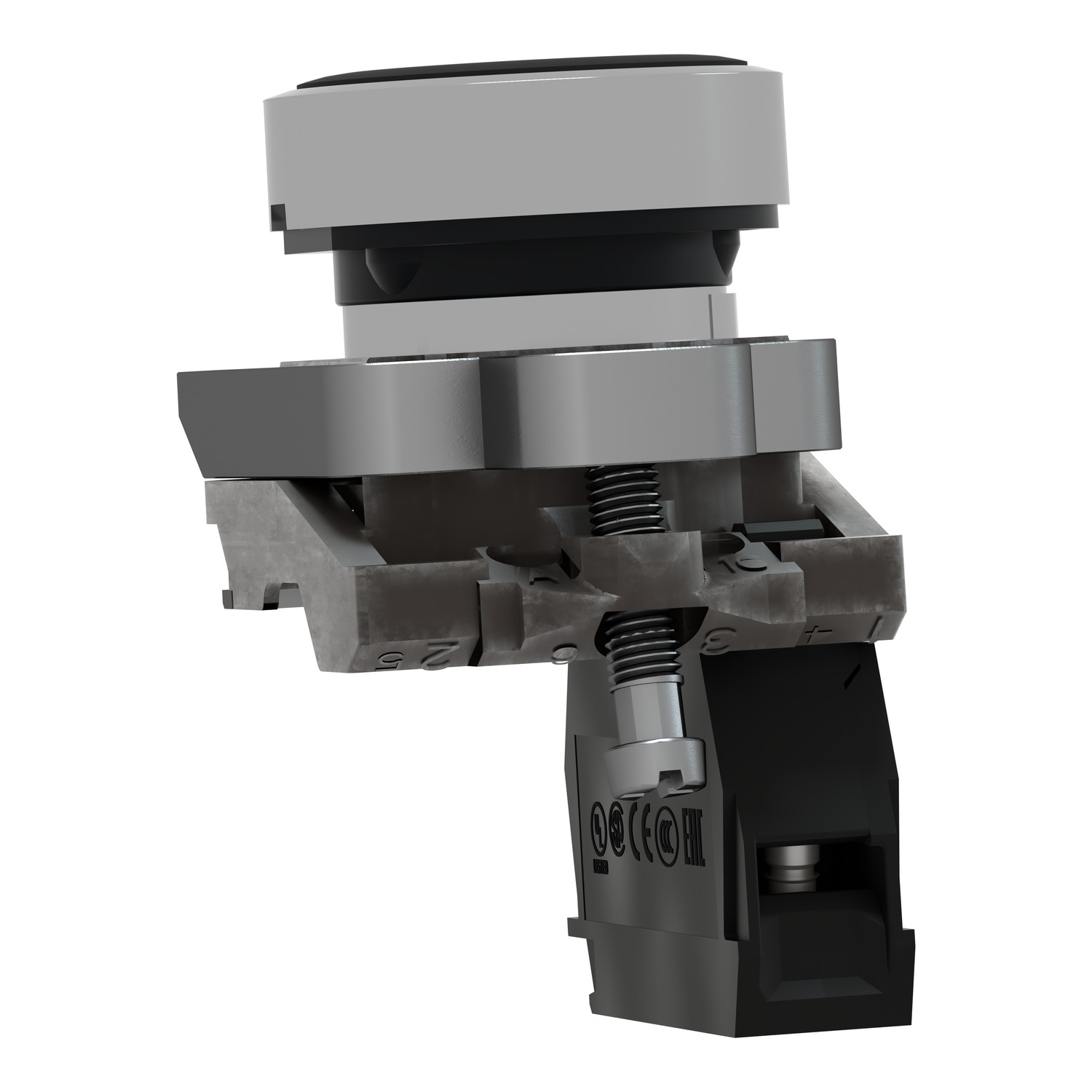

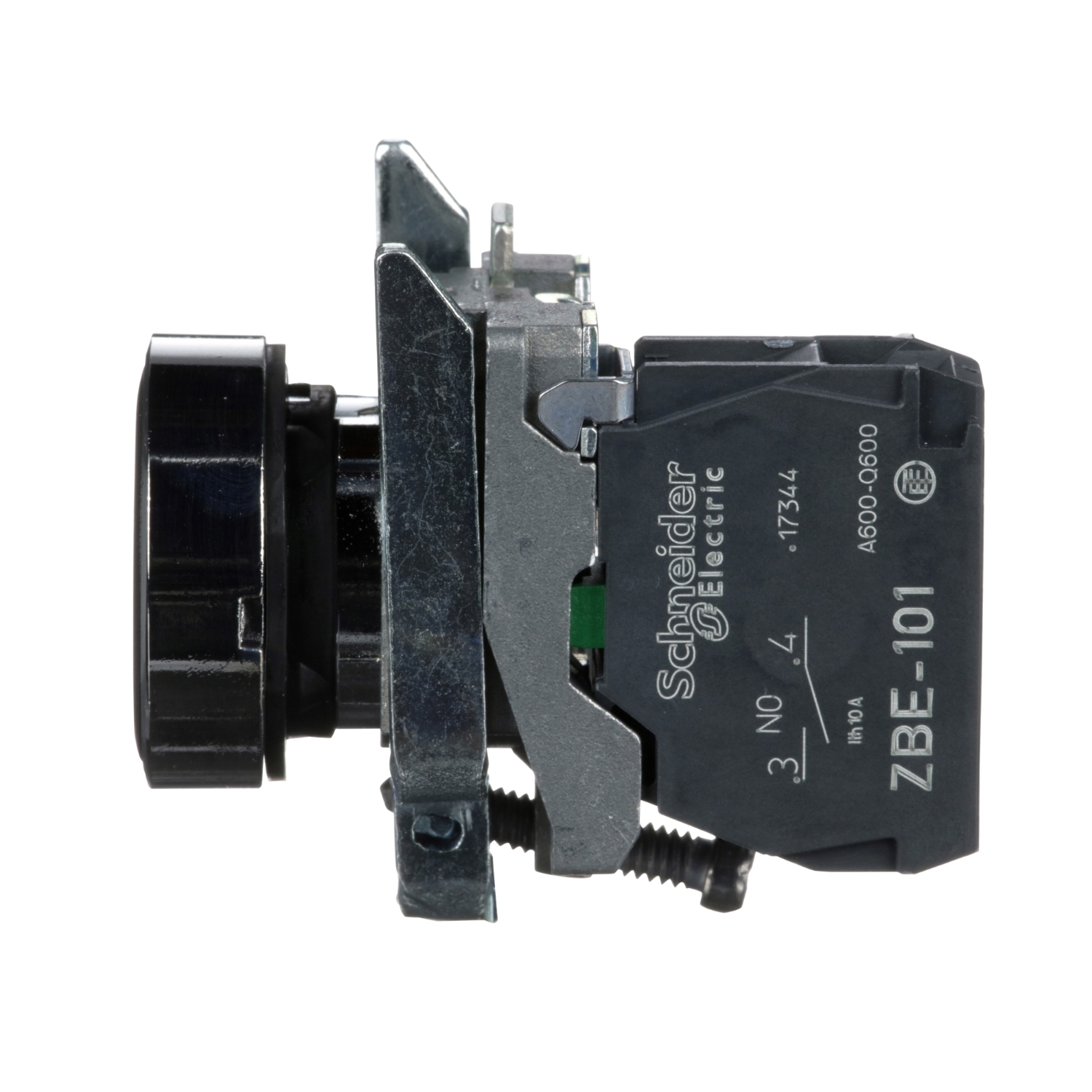

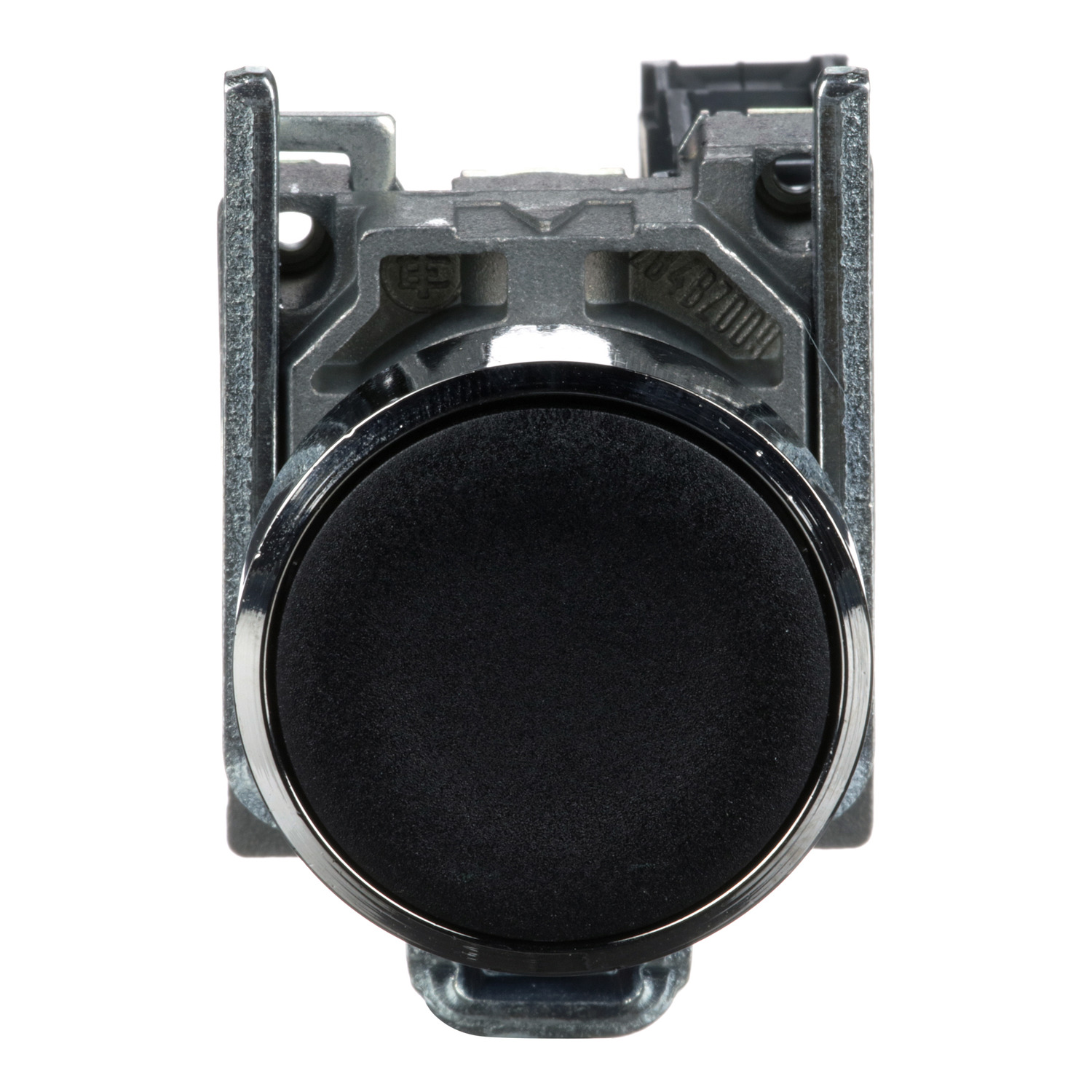

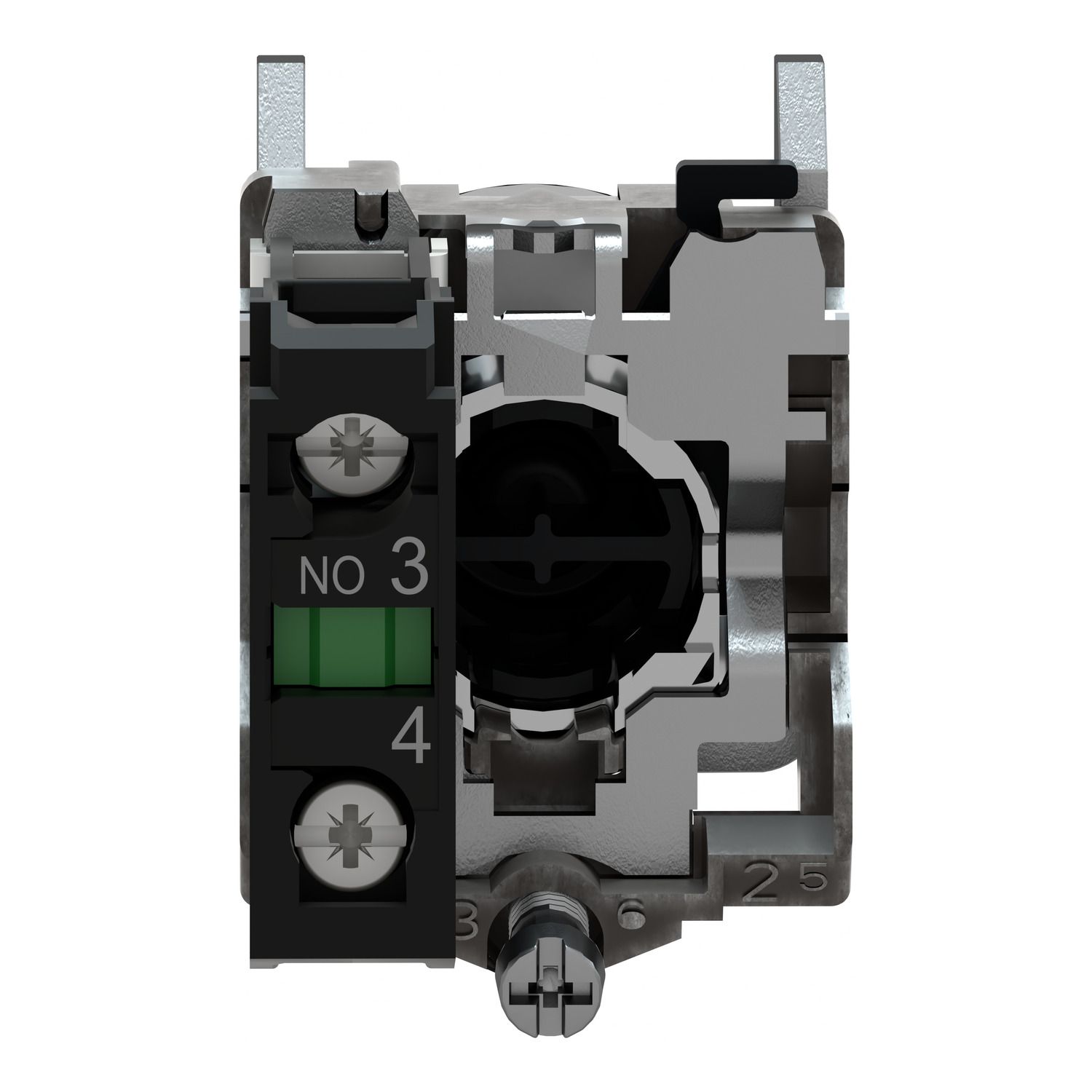

Buton incastrat complet, negru Ø22 cu revenire cu arc 1NO "nemarcat"
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Options | |
| Spring-return | Yes |
| Switching function latching | No |
| Colour | |
| Colour front ring | Chrome |
| Colour button | Black |
| Connection | |
| Type of electric connection | Screw connection |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Measurements | |
| Width opening | - |
| Hole diameter | 22.5 mm |
| Height opening | - |
| Material | |
| Material front ring | Metal |
| Electrical | |
| Supply voltage lamp | - |
| Model/type | |
| Type of button | Flat |
| Construction type lens | Round |
| With front ring | Yes |
| Number of command positions | 1 |
| Application | |
| Suitable for lighting | No |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 13 |
| Package 1 | |
| volume | 161,568 cm3 |
| weight | 80 g |
| length | 5,4 cm |
| width | 3,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110886948 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 12,456 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 150 |
| qmin | 150 |
| um | CT |
| gtin | 43389110886946 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 108,148 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 1200 |
| qmin | 1200 |
| um | PF |
