Descriere

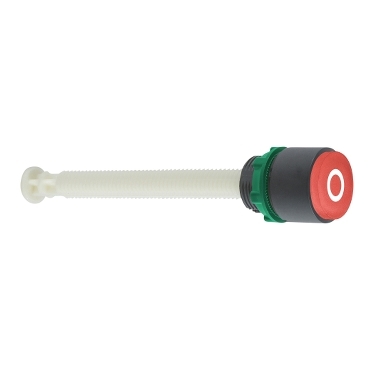

Buton Reset, Rosu Aparent Ø22 Marcat O pentru Distanta de Actionare 17, 120 Mm
Documente
Fisa tehnica
Specificatii
| Options | |
| Labelled | Yes |
| Spring-return | Yes |
| Switching function latching | No |
| Colour | |
| Colour front ring | Black |
| Colour button | Red/white |
| Model/type | |
| With protective cover | No |
| Type of button | High |
| Construction type lens | Round |
| With front ring | Yes |
| Number of command positions | 1 |
| Measurements | |
| Width opening | - |
| Hole diameter | 22.5 mm |
| Height opening | - |
| Material | |
| Material front ring | Plastic |
| Protection | |
| Degree of protection (IP), front side | IP66 |
| Degree of protection (NEMA), front side | 4X |
| Application | |
| Suitable for lighting | No |
| Package 1 | |
| volume | 331,65 cm3 |
| weight | 39 g |
| length | 13,4 cm |
| width | 5,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110102499 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 3,615 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 80 |
| qmin | 80 |
| um | CT |
| gtin | 43389110102497 |
