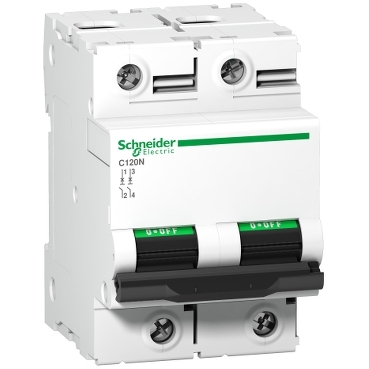

Acti9 C120N, Intreruptor, 2P, 100A, curba B
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Measurements | |
| Built-in depth | 44 mm |
| Width in number of modular spacings | 3 |
| Other | |
| Frequency | 50 Hz |
| Pollution degree | 3 |
| Electrical | |
| Rated insulation voltage Ui | 500 V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 20 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 10 kA |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated current | 100 A |
| Rated voltage | 415 V |
| Release characteristic | B |
| Voltage type | AC |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 10 kA |
| Overvoltage category | 4 |
| Current limiting class | 3 |
| Model/type | |
| Number of poles (total) | 2 |
| Number of protected poles | 2 |
| Options | |
| Additional equipment possible | Yes |
| Concurrently switching neutral conductor | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Explosion-proof | No |
| Mounting/installation | |
| Flush-mounted installation | No |
| Connection | |
| Connectable conductor cross section solid-core | 1.5 mm² |
| Connectable conductor cross section multi-wired | 1 mm² |
| Operating conditions | |
| Ambient temperature during operating | -25 °C |
| Package 1 | |
| volume | 309,944 cm3 |
| weight | 385 g |
| length | 8,6 cm |
| width | 5,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480379208 |
| Package 2 | |
| volume | 2757,504 cm3 |
| weight | 2,37 kg |
| length | 33,4 cm |
| width | 9,6 cm |
| qmax | 6 |
| qmin | 6 |
| um | BX |
| gtin | 13606480379205 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 14,711 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 36 |
| qmin | 36 |
| um | CT |
| gtin | 43606480379206 |
