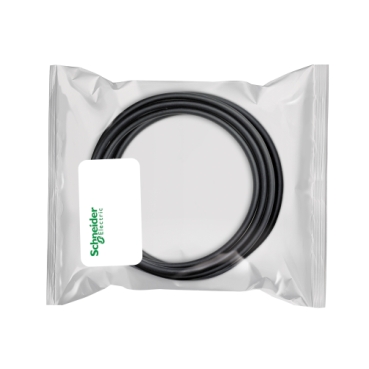

Cablu De Alimentare - Intre Servomotorul Bdh, Bsh Si Servodirectia - 4X1.5Mm²+2X
Documente
Specificatii
| Material | |
| Material outer sheath | Other |
| Measurements | |
| Length | 10 m |
| Outer diameter approximate | - |
| Other | |
| Frequency | 50 Hz |
| Colour | |
| Colour outer sheath | Grey |
| Model/type | |
| Number of cores | 6 |
| With protective conductor | No |
| Spiralized cable | No |
| With cord switch | No |
| Protection | |
| Reaction-to-fire according to EN 13501-6: Acidity | None |
| Reaction-to-fire according to EN 13501-6: Smoke production | None |
| Reaction-to-fire according to EN 13501-6: Class | None |
| Oil resistant according to EN IEC 60811-404 | Yes |
| Degree of protection (IP) | Other |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | None |
| Electrical | |
| Nominal voltage | 200 V |
| Nominal current | - |
| Connection | |
| Connection 1 | Contour plug (CEE 7/17) |
| Connection 2 | Cable end sleeve |
| Nominal cross section conductor | 1.5 mm² |
| System-oriented connector system | No |
| Operating conditions | |
| Temperature resistance | -40 °C |
| Package 1 | |
| volume | 9600 cm3 |
| weight | 2,298 kg |
| length | 40 cm |
| width | 40 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119207317 |
| Package 2 | |
| volume | 360000 cm3 |
| weight | 83,5 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 73389119207316 |
