Descriere

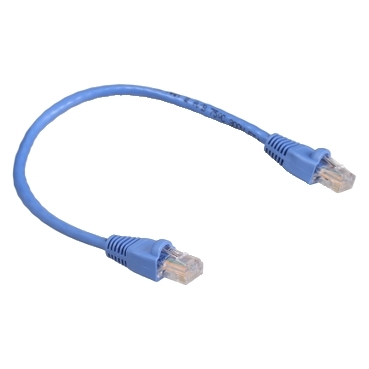

Cablu De Conectare - Demaror Motor Tesys U La Caseta De Deriv. - 2 Rj45 - 0,3 M
Documente
Fisa tehnica
Specificatii
| Connection | |
| Type of connector connection 1 | RJ45 8(8) |
| Type of connector connection 2 | RJ45 8(8) |
| Measurements | |
| Length | 0.3 m |
| AWG-size | - |
| Colour | |
| Colour outer sheath | Blue |
| Colour anti-kink sleeve | Blue |
| Other | |
| Category | - |
| Cable construction | 4x2 |
| Anti-kink sleeve | Moulded-on |
| Pin assignment | 1:1 |
| NVP value | - |
| Material | |
| Halogen free | Yes |
| Protection | |
| Fire retardant version | No |
| Oil resistant according to EN IEC 60811-404 | No |
| Model/type | |
| Cable type | Other |
| Options | |
| Locking lever | Yes |
| Approval/certification | |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
| Package 1 | |
| volume | 200 cm3 |
| weight | 19 g |
| length | 10 cm |
| width | 10 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110467482 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 1,46 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 43389110467480 |
