Descriere

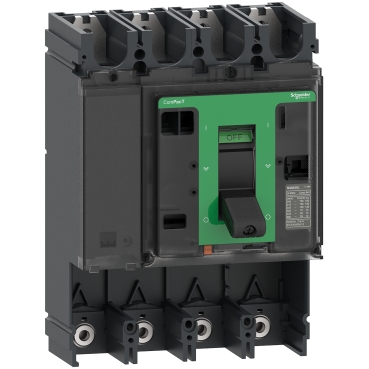

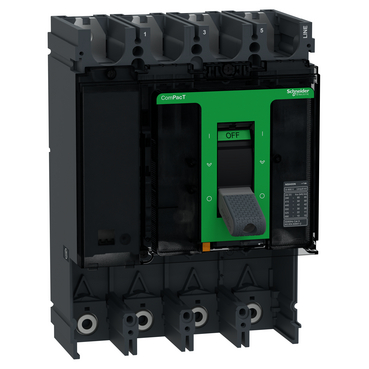

Acesta este un cadru de baza cu 4 poli pentru ComPacT NSX400N. ComPacT NSX este proiectat pentru a optimiza spatiul si capacitatea de rupere pentru toate aplicatiile standard si specifice. Acest cadru de baza este livrat fara unitate de declansare si este compatibil cu orice tip de unitate de declansare, care trebuie comandata separat. Capacitatea de rupere Icu este de 50 kA la 415 V c.a. 50/60 Hz. Tensiunea de functionare este de 690 V c.a. 50/60 Hz (limitata la 440 V c.a. 50/60 Hz daca exista o protectie la scurgeri la pamant). Poate fi echipat cu o varietate de functii si accesorii optionale. Dimensiunile sunt 185 mm x 255 mm x 110 mm. Asigura conformitatea cu standardele internationale (IEC 60947), CCC, EAC si specificatiile maritime. ComPacT NSX400N face parte din arhitectura EcoStruxure Power de la Schneider Electric.
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Position of connection for main current circuit | Front side |
| Protection | |
| Complete device with protection unit | No |
| Integrated earth fault protection | No |
| Degree of protection (IP) | IP40 |
| Model/type | |
| Type of control element | Wing knob |
| With switched-off indicator | Yes |
| Motor drive integrated | No |
| Mounting/installation | |
| DIN rail (top hat rail) mounting optional | Yes |
| Suitable for DIN rail (top hat rail) mounting | No |
| Electrical | |
| Overload release current setting | - |
| Rated voltage | 690 V |
| Rated permanent current Iu | 400 A |
| Adjustment range short-term delayed short-circuit release | - |
| Number of poles | 4 |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | 50 kA |
| With integrated under voltage release | No |
| Adjustment range undelayed short-circuit release | - |
| Options | |
| Motor drive optional | Yes |
| Other | |
| Device construction | Built-in device fixed built-in technique |
| Package 1 | |
| volume | 8700 cm3 |
| weight | 5,798 kg |
| length | 29 cm |
| width | 20 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606482003163 |
| Package 2 | |
| volume | 422400 cm3 |
| weight | 176,344 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 28 |
| qmin | 28 |
| um | PF |
| gtin | 73606482003162 |
