Descriere

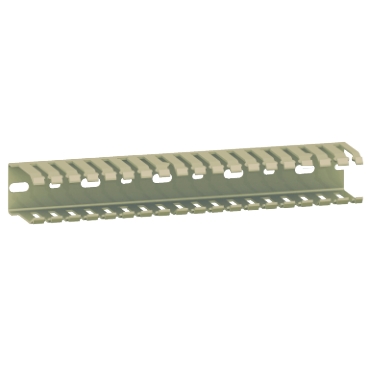

Canal de cablu - 50 X 25 Mm - Fara Capac - Gri
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Colour | |
| Colour | Grey |
| RAL-number | 7030 |
| Measurements | |
| Length | 2000 mm |
| Width | 25 mm |
| Slit width | 0 mm |
| Diameter | 0 mm |
| Distance of slots | 0 mm |
| Height | 50 mm |
| Mounting/installation | |
| Type of fastening | Bottom perforation |
| Model/type | |
| Type of side wall | Slotted |
| With cover | No |
| Options | |
| Self-extinguishing | Yes |
| Flexible | No |
| Material | |
| Material | Polyvinyl chloride (PVC) |
| Halogen free | No |
| Connection | |
| Usable cross section | 1.5 mm² |
| Package 1 | |
| volume | 1235,08 cm3 |
| weight | 375 g |
| length | 200,5 cm |
| width | 1,12 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110570359 |
| Package 2 | |
| volume | 9924,75 cm3 |
| weight | 3 kg |
| length | 200,5 cm |
| width | 9 cm |
| qmax | 8 |
| qmin | 8 |
| um | CT |
| gtin | 53389110570354 |
| Package 3 | |
| volume | 1443600 cm3 |
| weight | 320 kg |
| length | 120 cm |
| width | 200,5 cm |
| qmax | 760 |
| qmin | 760 |
| um | PF |
