Descriere

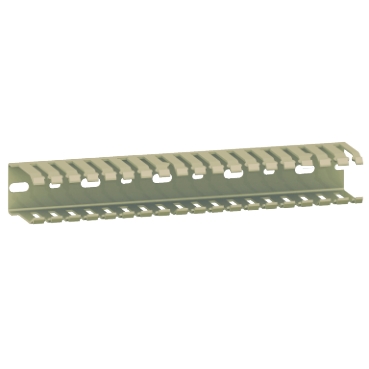

Canal de cablu - 50 X 37.5 Mm - Fara Capac - Gri
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Measurements | |
| Length | 2000 mm |
| Width | 37.5 mm |
| Diameter | 0 mm |
| Slit width | 0 mm |
| Distance of slots | 0 mm |
| Height | 50 mm |
| Colour | |
| Colour | Grey |
| RAL-number | 7030 |
| Mounting/installation | |
| Type of fastening | Bottom perforation |
| Options | |
| Self-extinguishing | Yes |
| Flexible | No |
| Model/type | |
| Type of side wall | Slotted |
| With cover | No |
| Material | |
| Material | Polyvinyl chloride (PVC) |
| Halogen free | No |
| Connection | |
| Usable cross section | 1.5 mm² |
| Package 1 | |
| volume | 1892,72 cm3 |
| weight | 500 g |
| length | 200,5 cm |
| width | 1,18 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110570373 |
| Package 2 | |
| volume | 15238 cm3 |
| weight | 4 kg |
| length | 200,5 cm |
| width | 9,5 cm |
| qmax | 8 |
| qmin | 8 |
| um | CT |
| gtin | 53389110570378 |
| Package 3 | |
| volume | 1443600 cm3 |
| weight | 295 kg |
| length | 120 cm |
| width | 200,5 cm |
| qmax | 520 |
| qmin | 520 |
| um | PF |
