Descriere

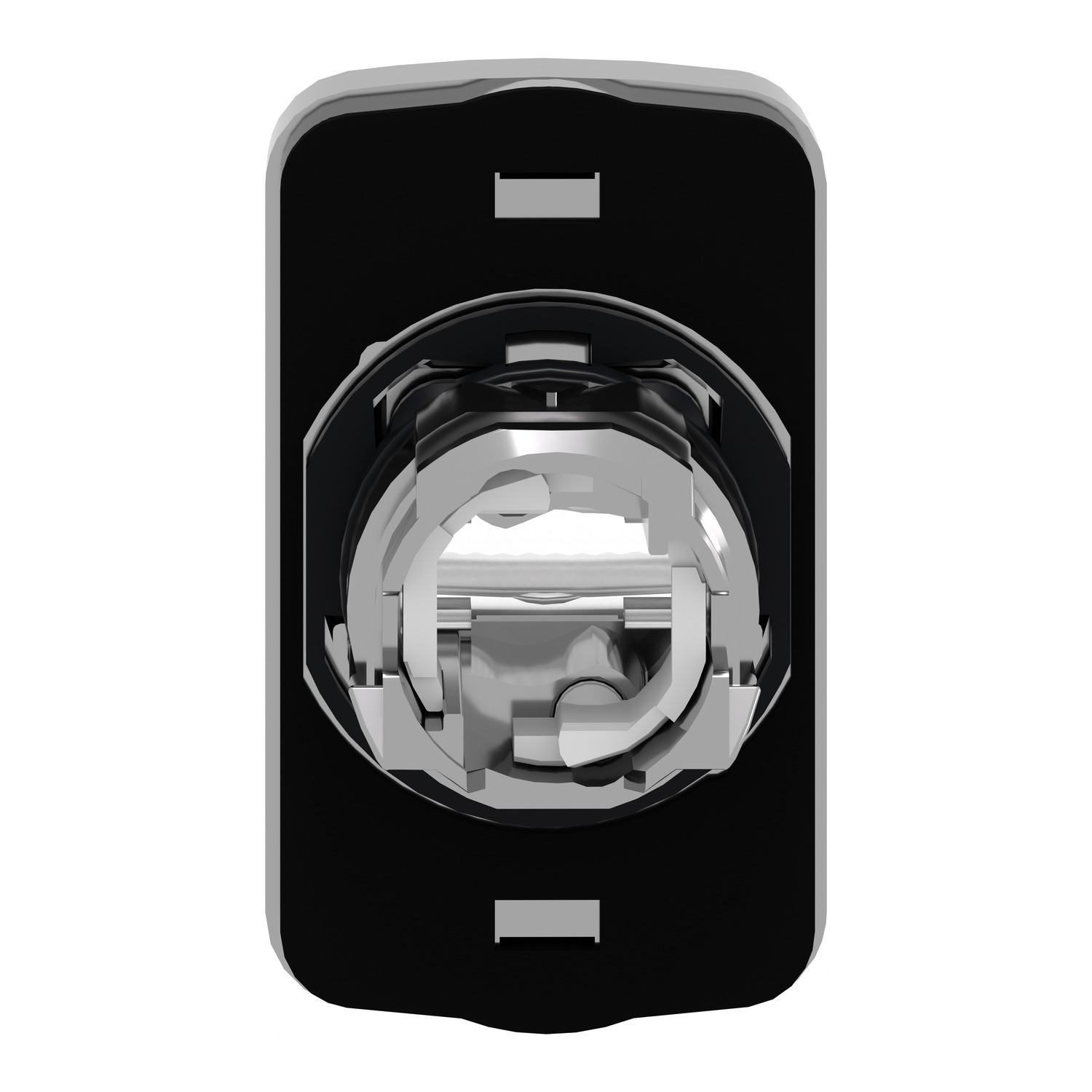

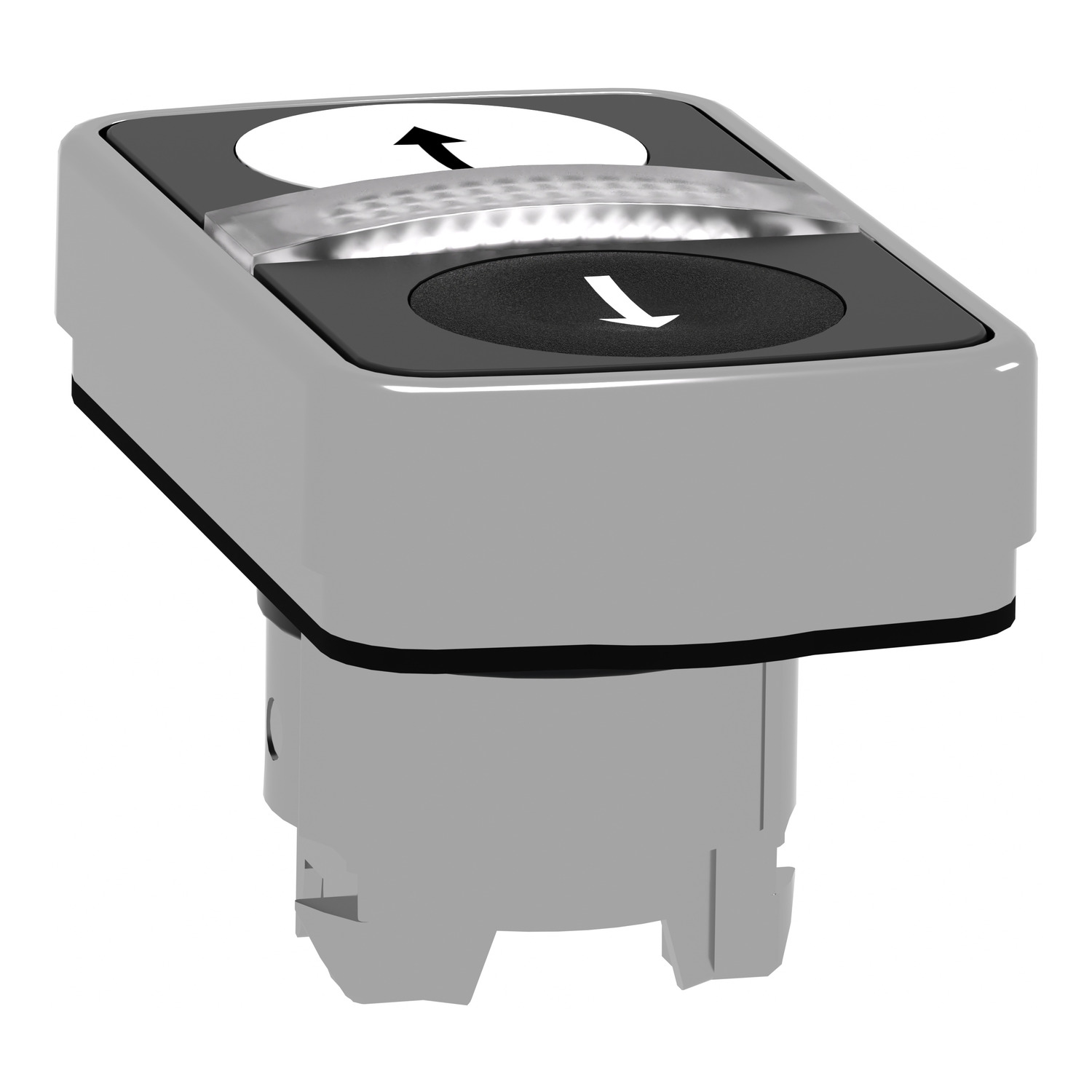

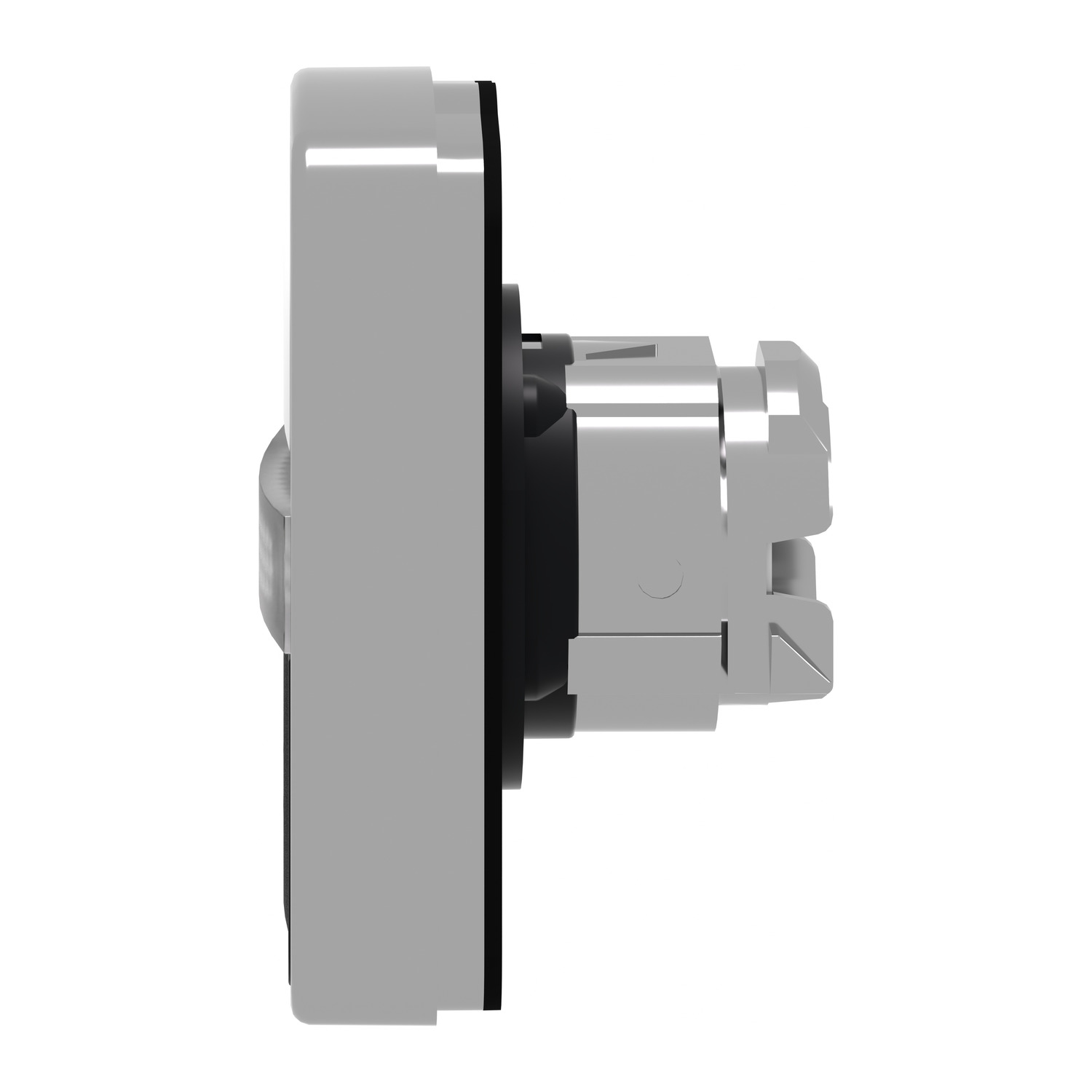

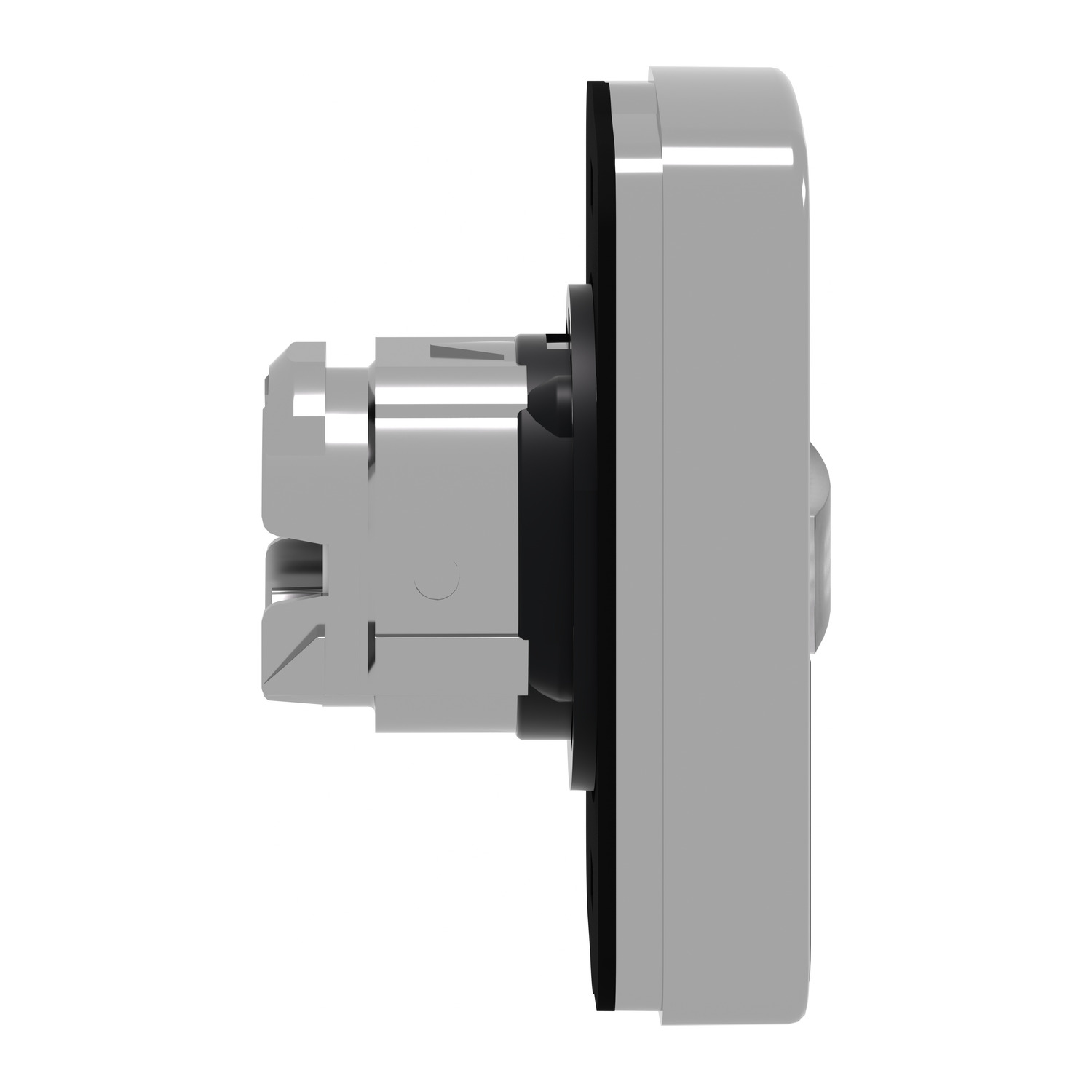

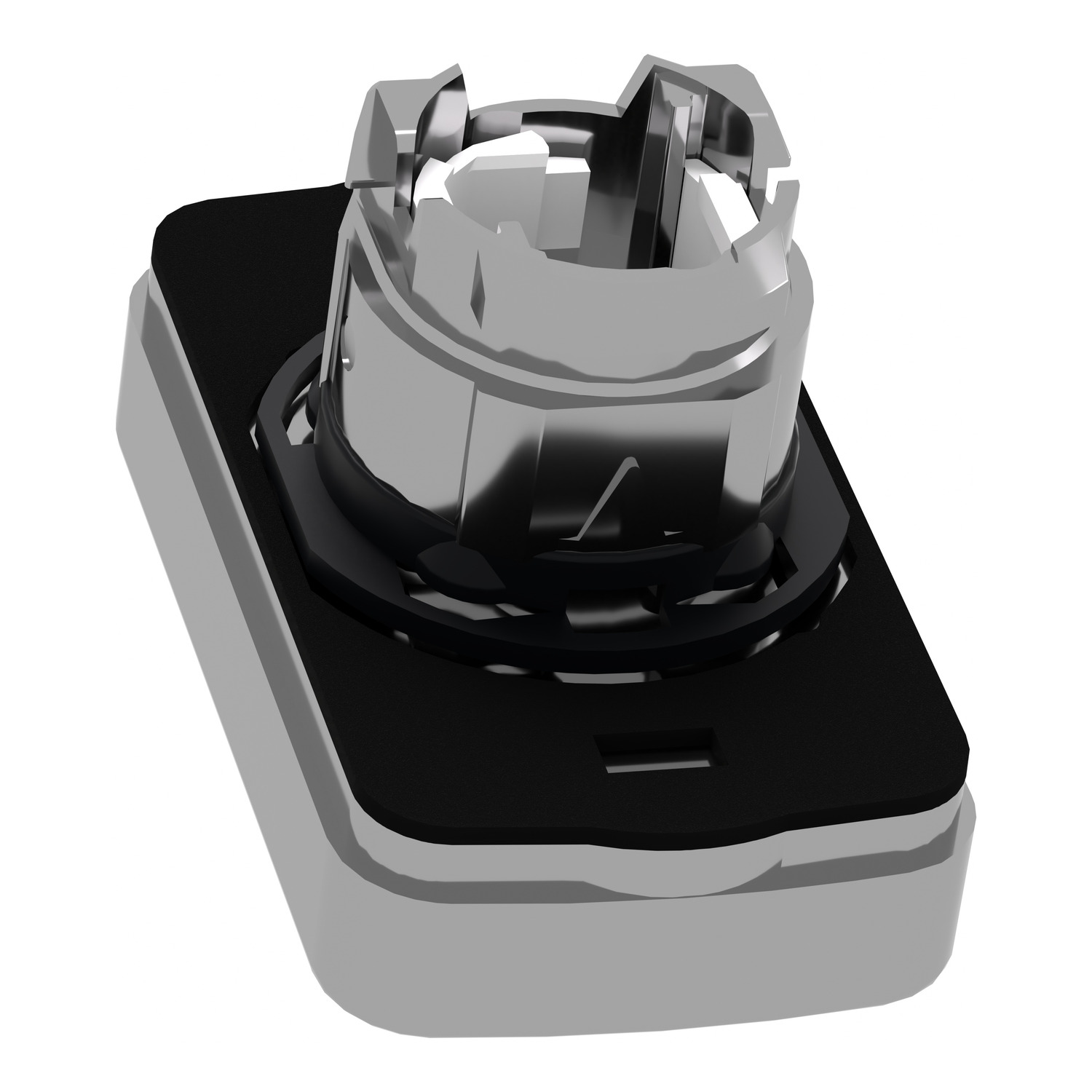

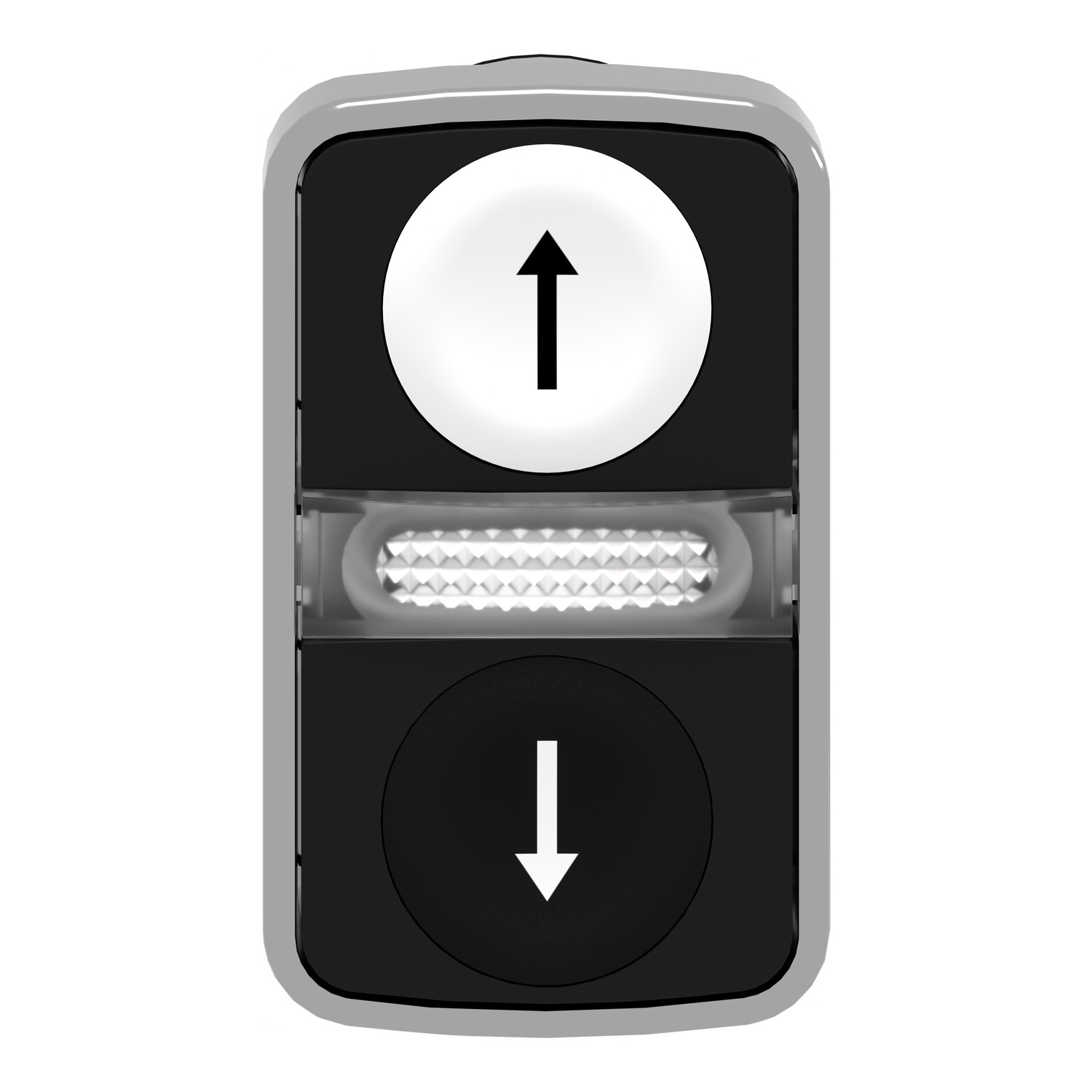

Cap Buton dublu Luminos Alb Incastrat/Negru Incastrat Ø22 cu Marcaj
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Options | |
| Labelled | Yes |
| Spring-return | Yes |
| Switching function latching | No |
| Colour | |
| Colour front ring | Chrome |
| Colour button | Black/white |
| Model/type | |
| With protective cover | No |
| Type of button | Flat |
| Construction type lens | Rectangular |
| With front ring | Yes |
| Number of command positions | 2 |
| Measurements | |
| Width opening | - |
| Hole diameter | 22.5 mm |
| Height opening | - |
| Material | |
| Material front ring | Metal |
| Protection | |
| Degree of protection (IP), front side | IP66 |
| Degree of protection (NEMA), front side | Other |
| Application | |
| Suitable for lighting | Yes |
| Package 1 | |
| volume | 59,136 cm3 |
| weight | 57 g |
| length | 4,8 cm |
| width | 4,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119603546 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 11,763 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 200 |
| qmin | 200 |
| um | CT |
| gtin | 43389119603544 |
