Descriere

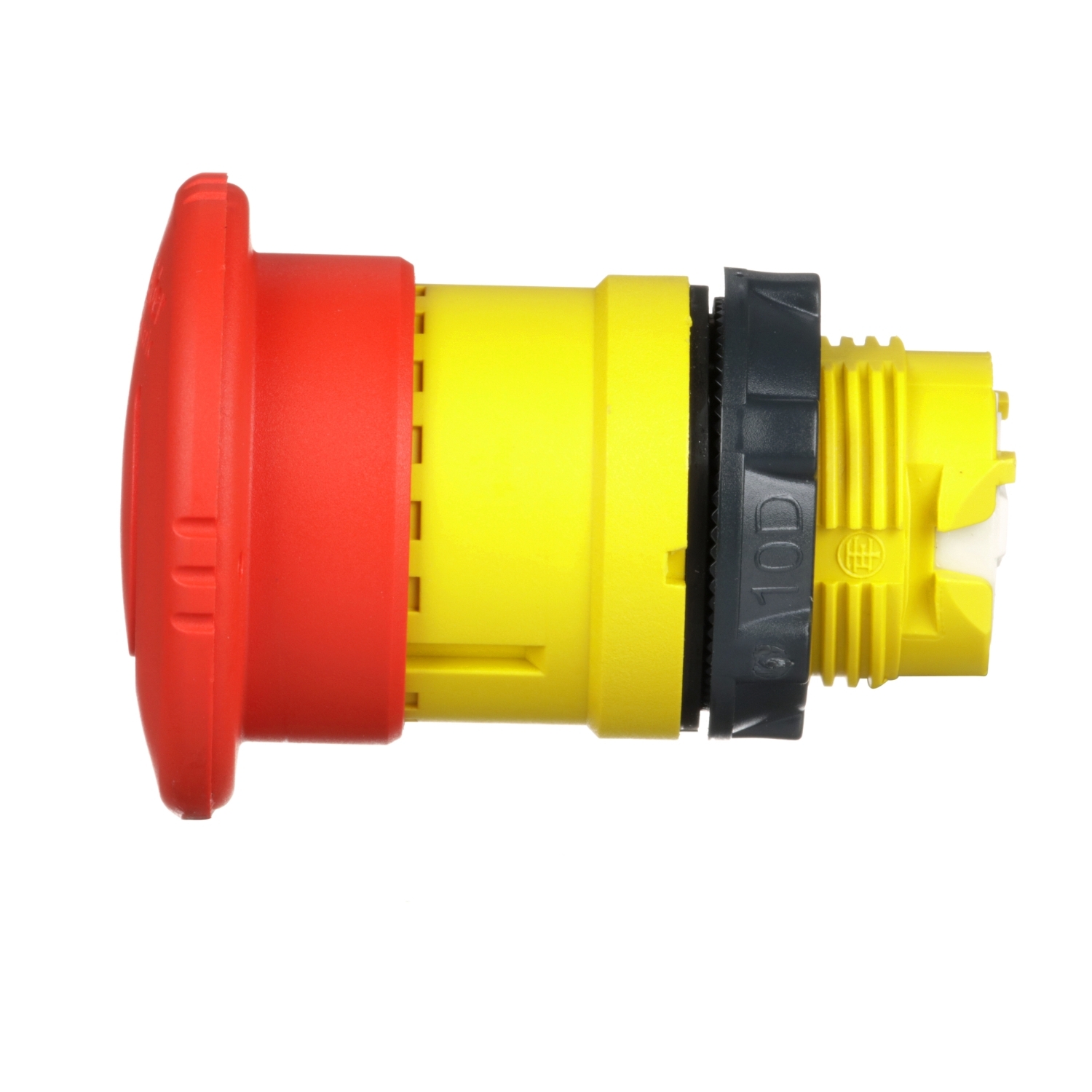

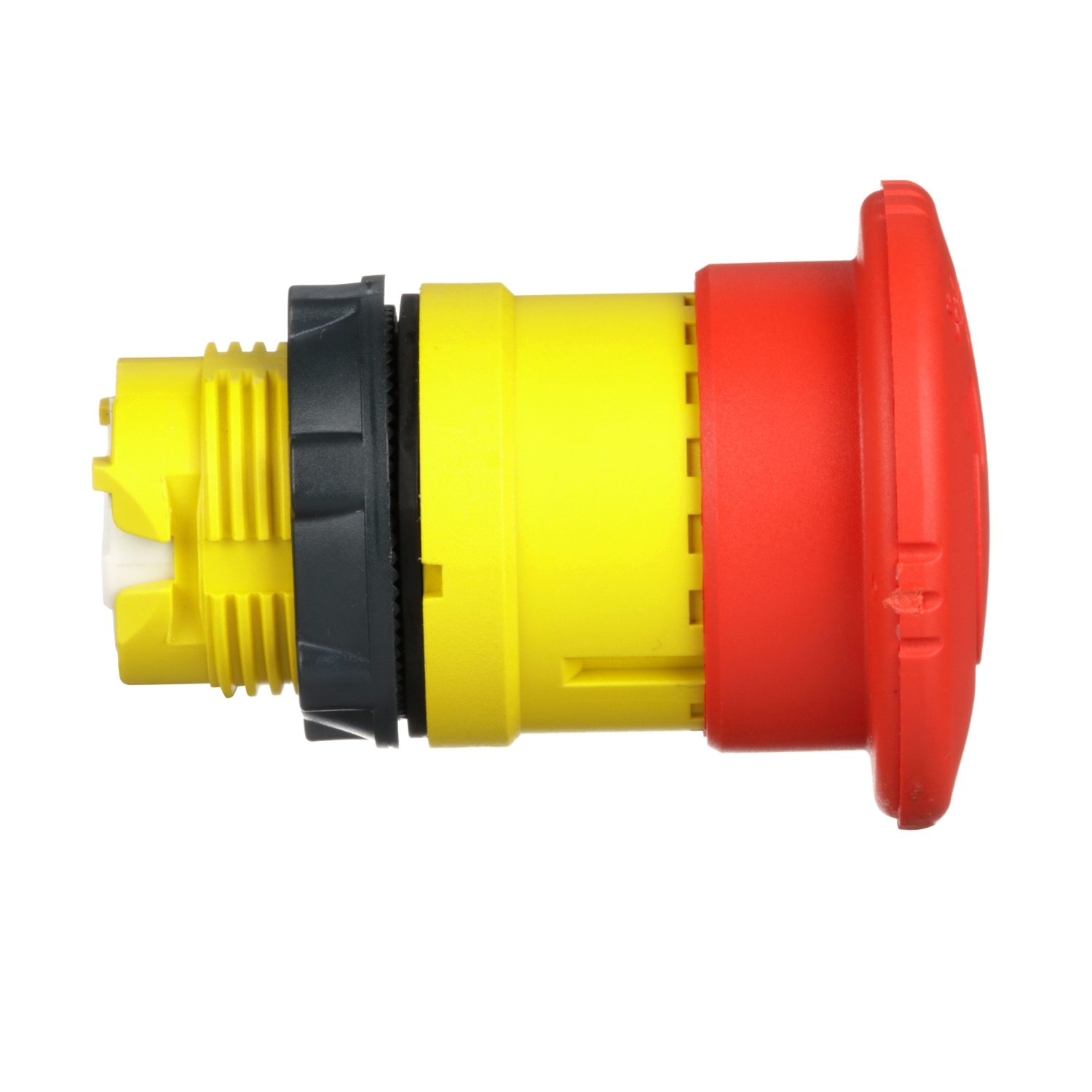

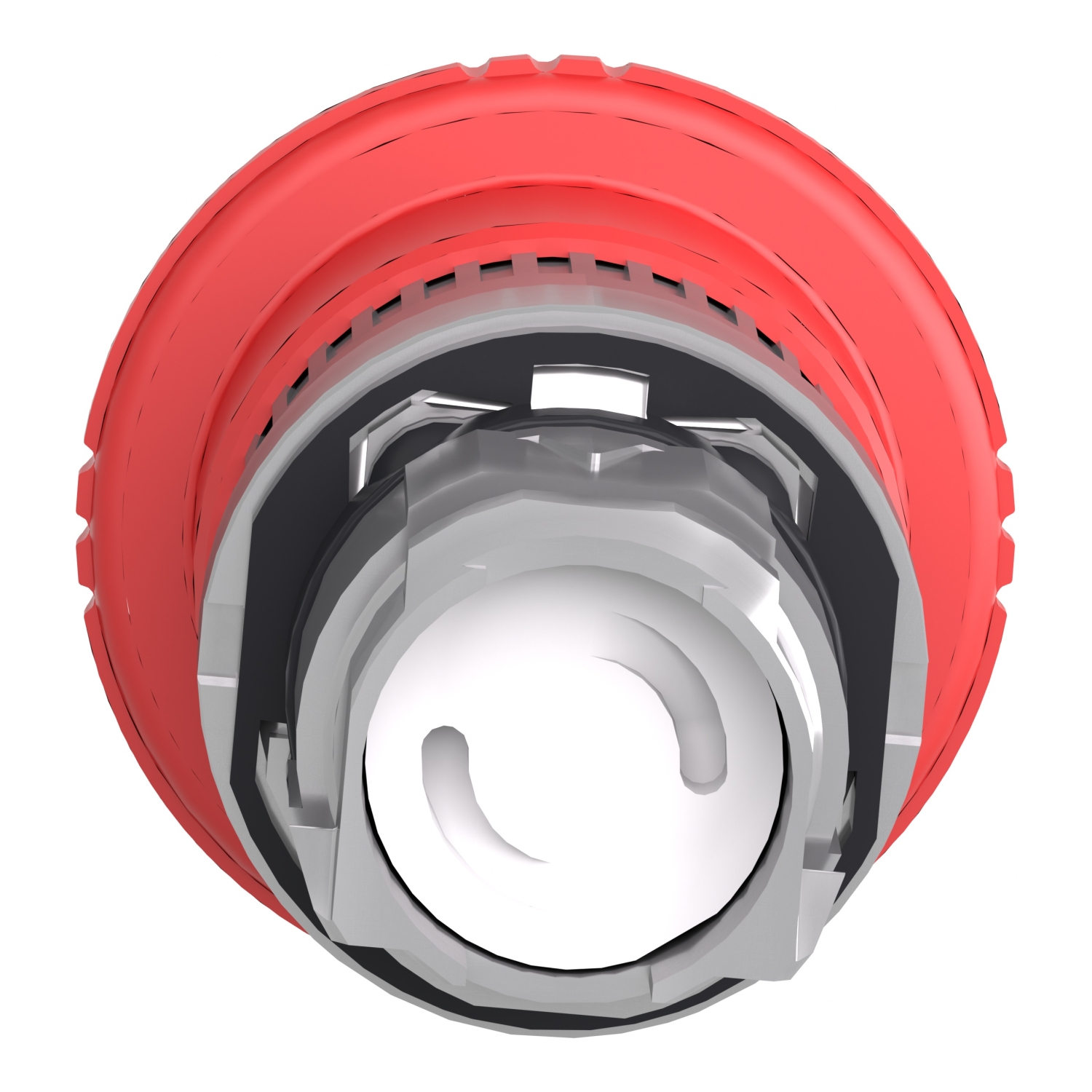

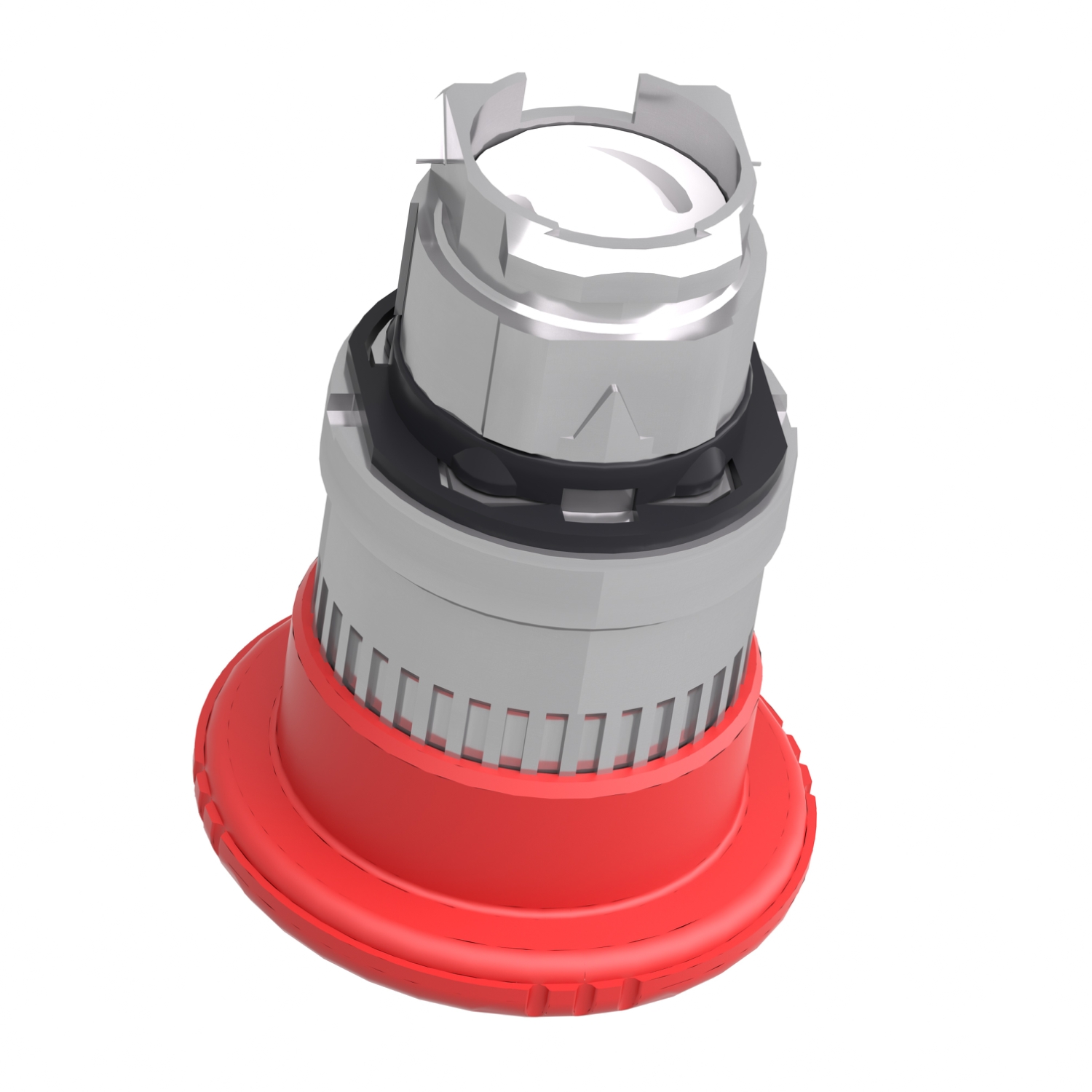

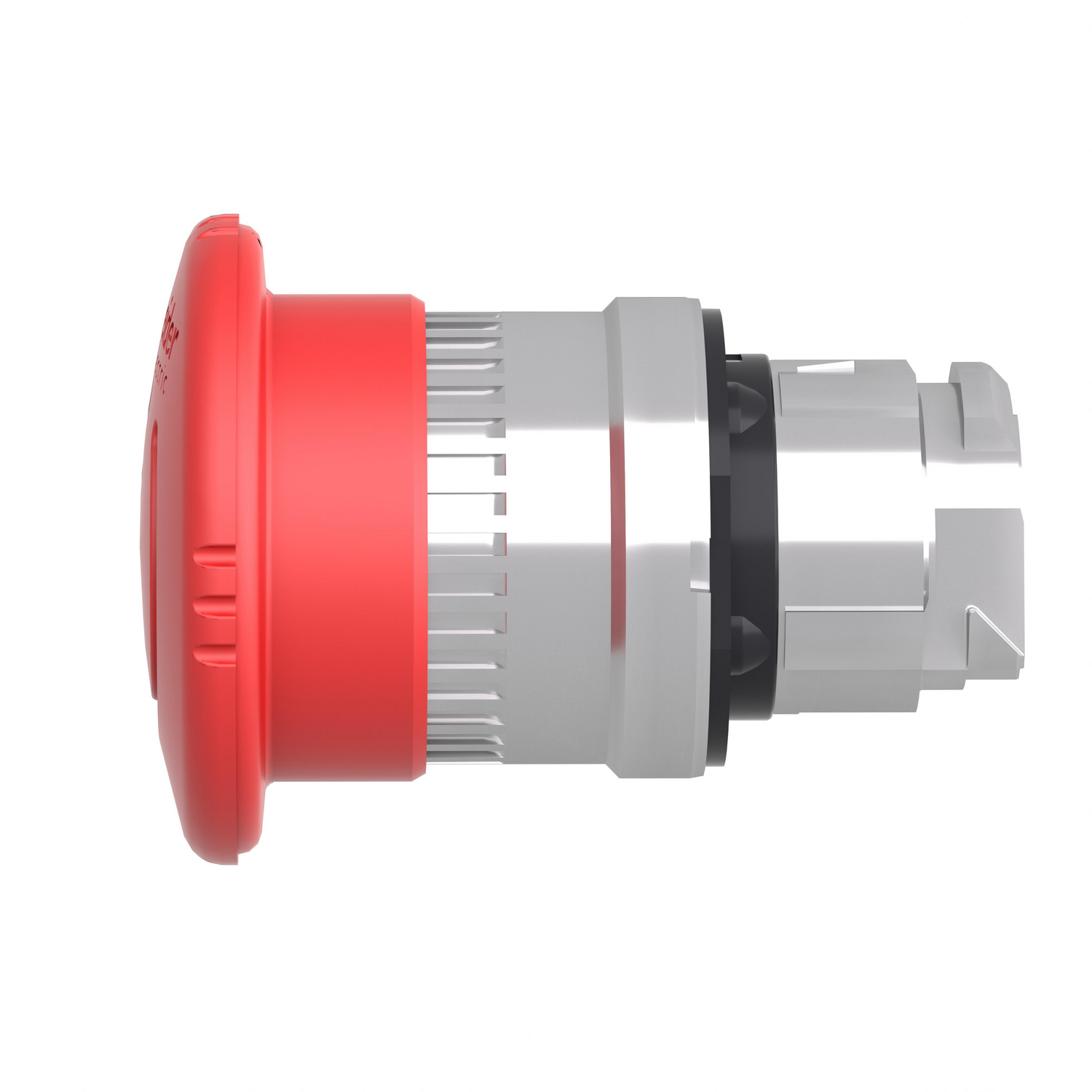

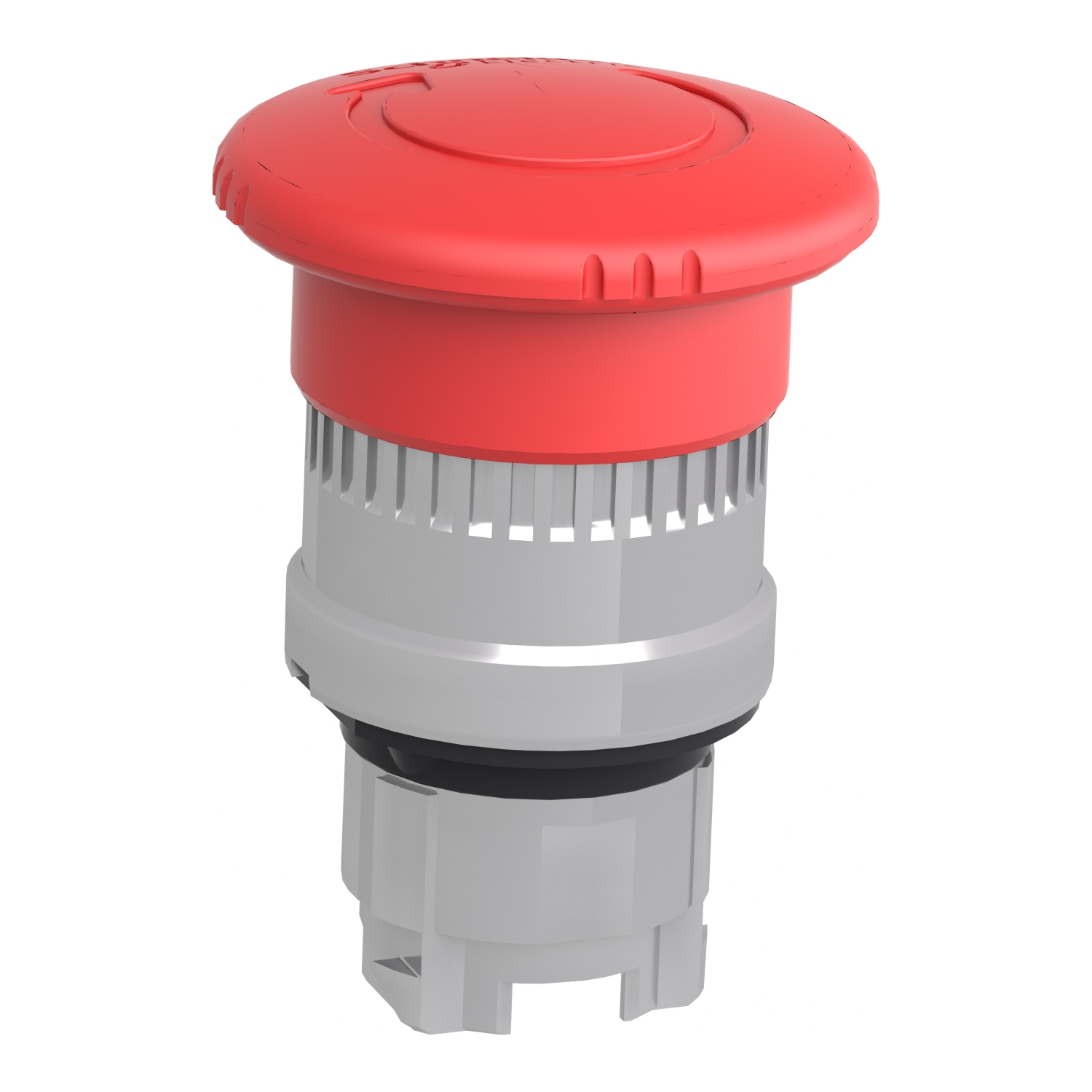

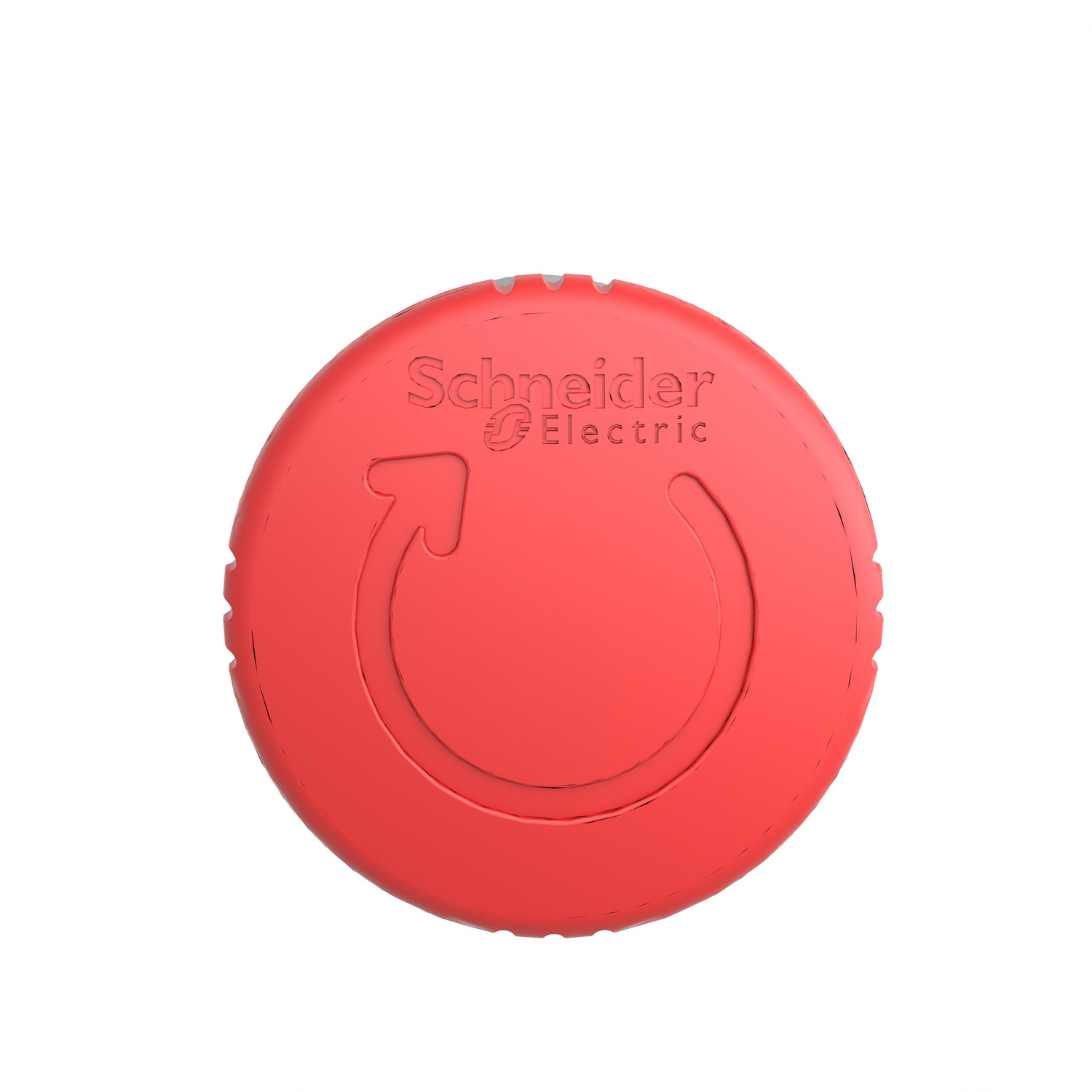

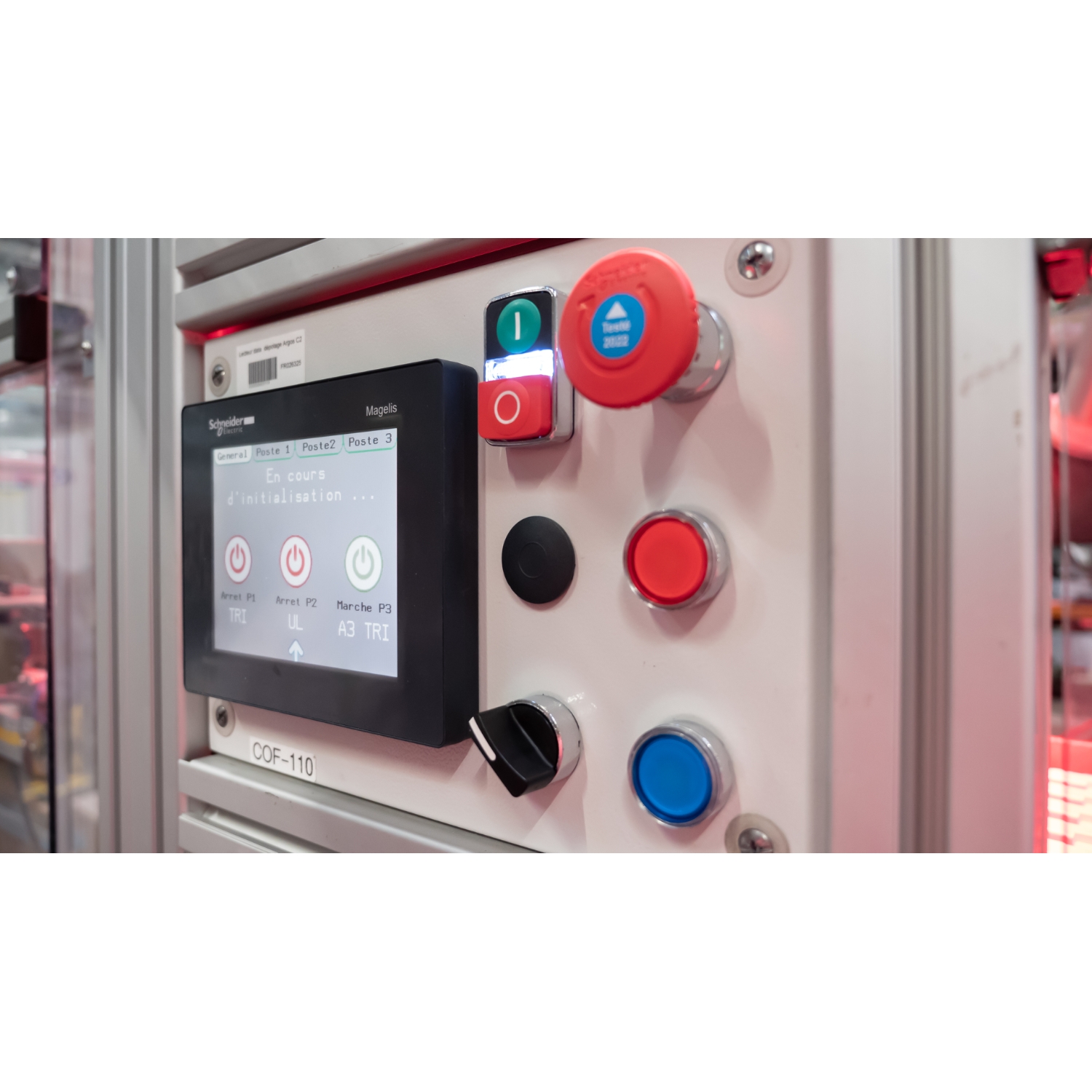

Cap Ø40 Buton Oprire de Urgenta Ø22 Rosu, declansare Si Elib. Prin Intoarcere
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Options | |
| Spring-return | No |
| Switching function latching | Yes |
| Colour | |
| Colour front ring | Chrome |
| Colour button | Red |
| Model/type | |
| With lighting | No |
| Type of button | High |
| Construction type lens | Round |
| With front ring | Yes |
| Measurements | |
| Hole diameter | 22.5 mm |
| Width opening | - |
| Diameter cap | 40 mm |
| Height opening | - |
| Material | |
| Material front ring | Metal |
| Electrical | |
| Supply voltage lamp | - |
| Application | |
| Suitable for emergency stop | Yes |
| Suitable for lighting | No |
| Other | |
| Unlocking method | Turn-release |
| Protection | |
| Degree of protection (IP) | Other |
| Degree of protection (NEMA) | 13 |
| Package 1 | |
| volume | 218,592 cm3 |
| weight | 75 g |
| length | 9,2 cm |
| width | 5,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110888867 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 7,98 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 100 |
| qmin | 100 |
| um | CT |
| gtin | 43389110888865 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 75,004 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 800 |
| qmin | 800 |
| um | PF |
