Descriere

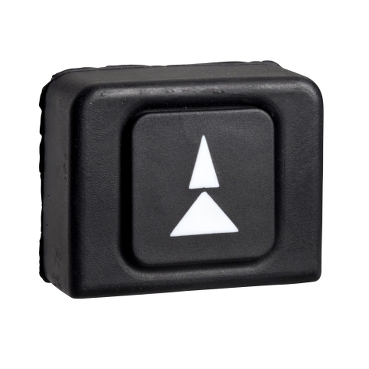

Cap Cu Manson Pentru Buton - Xac-A - Scade, Incet-Repede
Documente
Fisa tehnica
Specificatii
| Options | |
| Labelled | No |
| Spring-return | Yes |
| Switching function latching | No |
| Colour | |
| Colour front ring | Black |
| Colour button | Grey |
| Model/type | |
| With protective cover | No |
| Type of button | Flat |
| Construction type lens | Square |
| With front ring | Yes |
| Number of command positions | 1 |
| Material | |
| Material front ring | Plastic |
| Measurements | |
| Hole diameter | 22.5 mm |
| Width opening | - |
| Height opening | - |
| Protection | |
| Degree of protection (IP), front side | IP65/IP67 |
| Degree of protection (NEMA), front side | - |
| Application | |
| Suitable for lighting | No |
| Package 1 | |
| volume | 35 cm3 |
| weight | 10 g |
| length | 5 cm |
| width | 3,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110740158 |
| Package 2 | |
| volume | 9000 cm3 |
| weight | 697 g |
| length | 40 cm |
| width | 15 cm |
| qmax | 50 |
| qmin | 50 |
| um | CT |
| gtin | 43389110740156 |
