Descriere

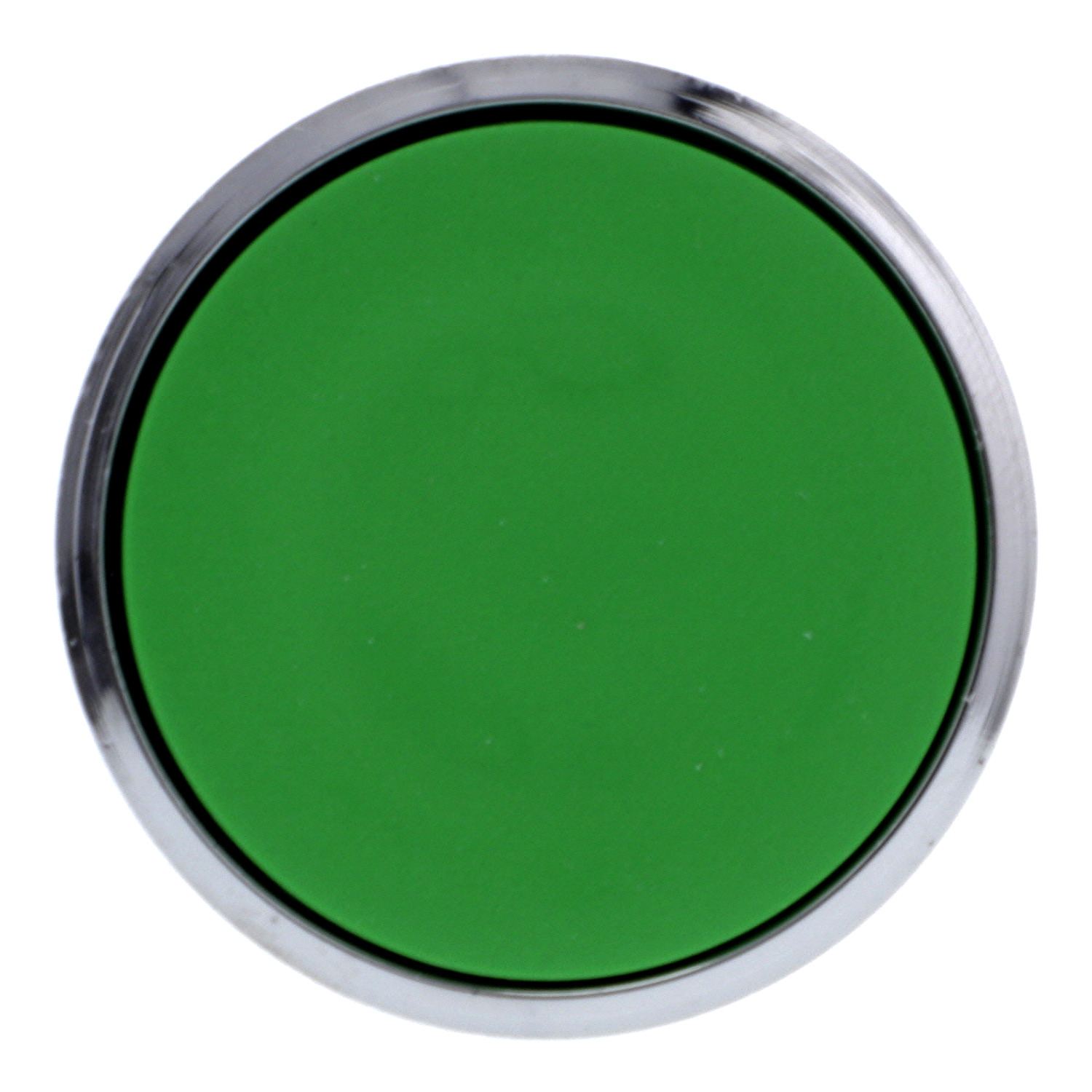

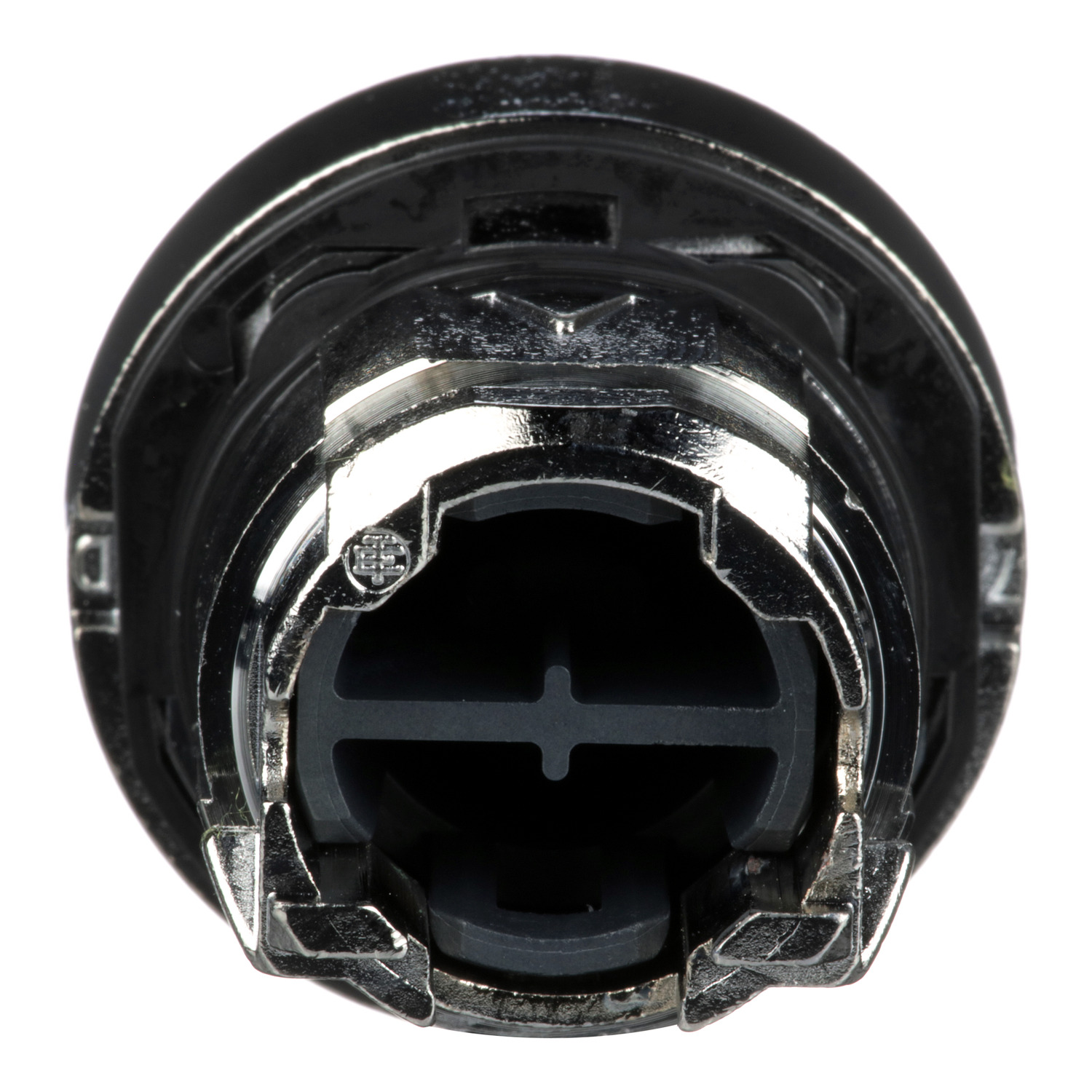

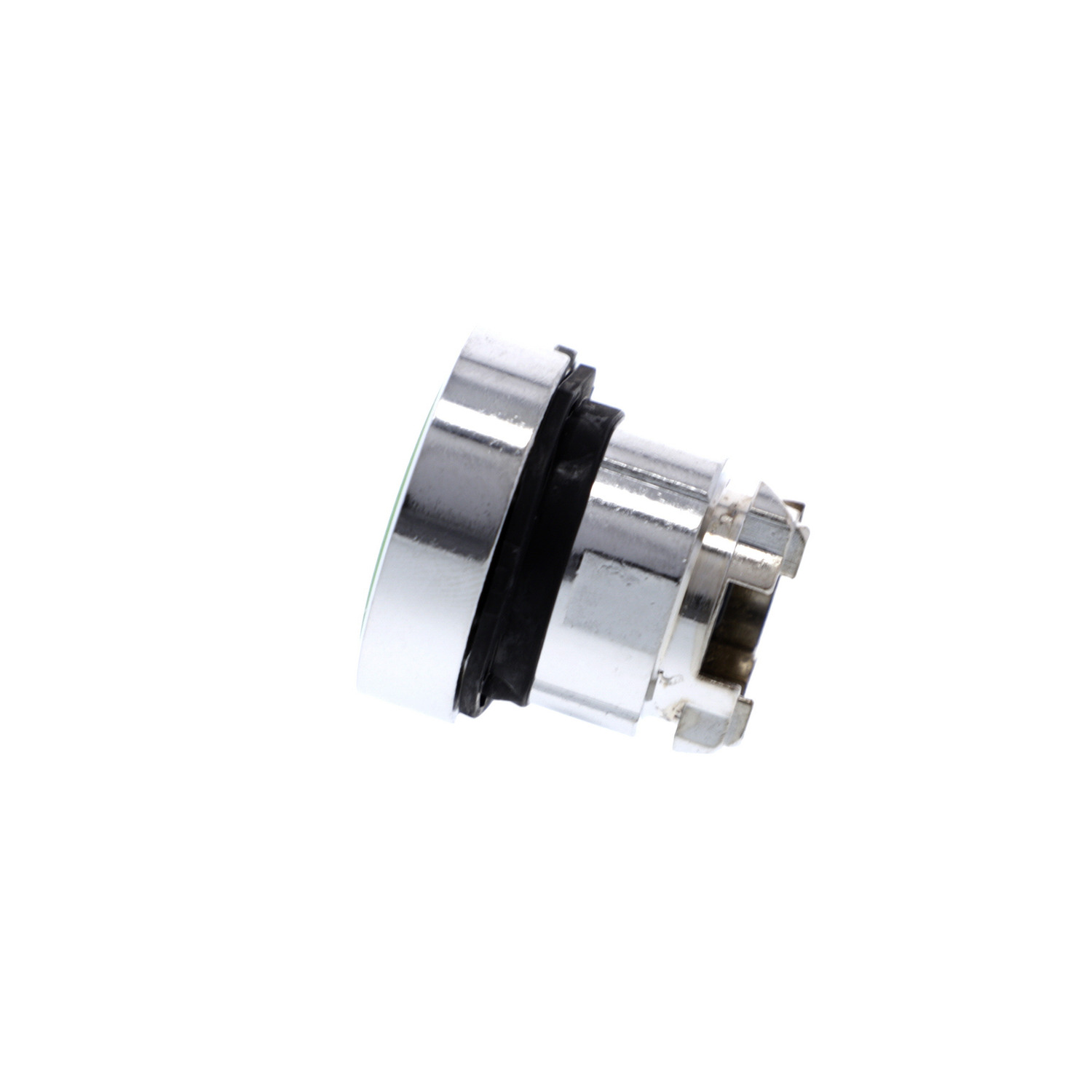

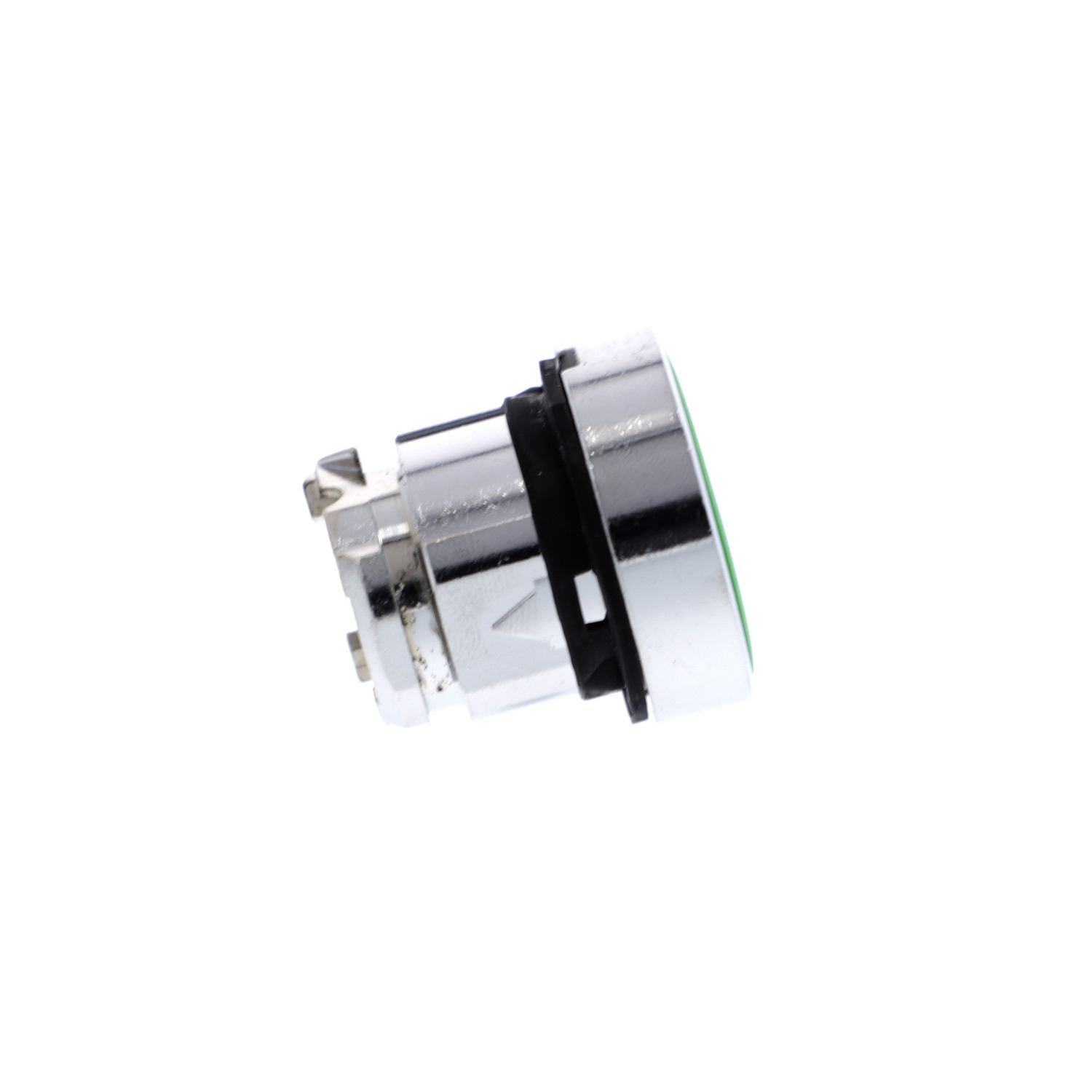

Cap de Buton Incastrat Verde Ø 22, Revenire cu Arc, Nemarcat
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Options | |
| Labelled | No |
| Spring-return | Yes |
| Switching function latching | No |
| Colour | |
| Colour front ring | Chrome |
| Colour button | Green |
| Model/type | |
| With protective cover | No |
| Type of button | Flat |
| Construction type lens | Round |
| With front ring | Yes |
| Number of command positions | 1 |
| Material | |
| Material front ring | Metal |
| Measurements | |
| Hole diameter | 22.5 mm |
| Width opening | - |
| Height opening | - |
| Protection | |
| Degree of protection (IP), front side | IP66 |
| Degree of protection (NEMA), front side | 13 |
| Application | |
| Suitable for lighting | No |
| Package 1 | |
| volume | 88,128 cm3 |
| weight | 28 g |
| length | 5,4 cm |
| width | 3,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110895742 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 8,939 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 300 |
| qmin | 300 |
| um | CT |
| gtin | 43389110895740 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 81,404 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 2400 |
| qmin | 2400 |
| um | PF |
