Descriere

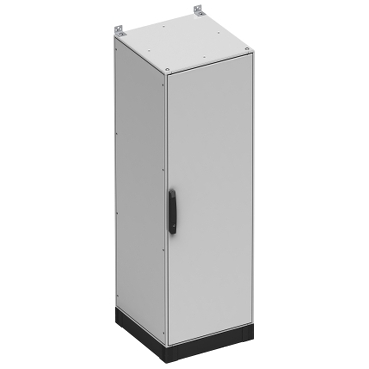

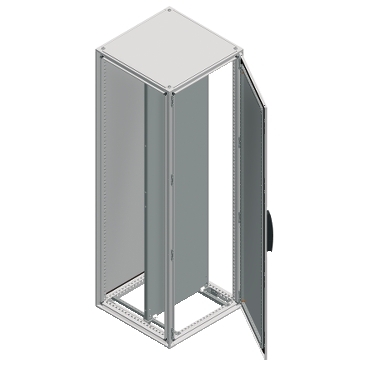

Spacial Sf Carcasa Cu Placa De Montaj - Asamblata - 2000X800X600 Mm
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Options | |
| Couplable | No |
| Mounting/installation | |
| With mounting plate | Yes |
| Suitable for metrical mounting | Yes |
| Intermediate mounting | No |
| Suitable for wall mounting | No |
| Suitable for wall built-in | No |
| Mounting plate depth-adjustable | Yes |
| Pole fastening | No |
| Model/type | |
| Freestanding | No |
| With glazed door | No |
| Pitched roof | No |
| Floor standing wall model | Yes |
| Number of doors | 1 |
| Number of locks | 1 |
| Corner model | No |
| With ventilation door | No |
| EMC-version | No |
| With rear door | No |
| Colour | |
| RAL-number | 7035 |
| Colour | Grey |
| Measurements | |
| Height | 2000 mm |
| Width | 800 mm |
| Depth | 600 mm |
| Protection | |
| Degree of protection (IP) | IP55 |
| Degree of protection (NEMA) | 12 |
| Material | |
| Surface finishing | Powder coating |
| Material | Steel |
| Material quality | Other |
| Application | |
| Suitable for outdoor set-up | No |
| Performance | |
| Max. permitted load of the mounting plate according to IEC 62208 | 300 N |
| Max. permitted load of the enclosure according to IEC 62208 | 1000 N |
| Max. permitted load of the door(s) according to IEC 62208 | 60 N |
| Other | |
| Impact strength | IK10 |
| Energy efficiency/environmental | |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 | - |
| Package 1 | |
| volume | 1241896,5 cm3 |
| weight | 132 kg |
| length | 213 cm |
| width | 84,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606485117690 |
