Descriere

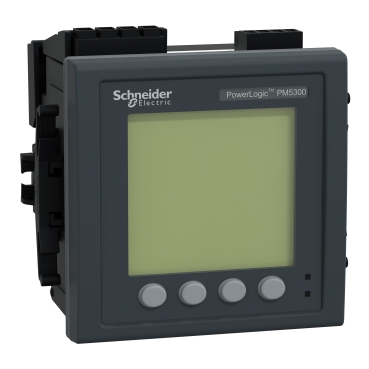

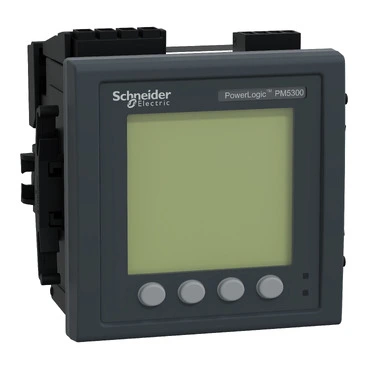

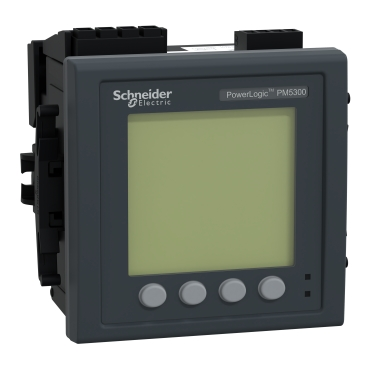

Pm5330 Contor Putere Cu Moddbus - Pana La 31St H - 256K 2Di/2Do 35Alarme
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Max. current (Imax) | 8.5 A |
| Voltage type | AC/DC |
| Nominal current (In) | 5 A |
| Options | |
| Effective power | Yes |
| Power factor | Yes |
| Min. value storage | Yes |
| Calibrated | No |
| Frequency measurement | Yes |
| Apparent power | Yes |
| Measured value memory | Yes |
| Harmonics measurement | Yes |
| Reactive power | Yes |
| Step angle (cos phi) | No |
| Max. value storage | Yes |
| Model/type | |
| Model | Measurement transformer |
| Pole type | Three conductor/four conductor |
| Measurement type load profile | Yes |
| Other | |
| Pulse output | Electrical |
| Measuring range | 35 V |
| Indication | Graphic |
| Measurements | |
| Height | 112 mm |
| Width | 102 mm |
| Communication | |
| Wth communication interface M-Bus | No |
| With communication interface according to EN 62056-21 | No |
| Supporting protocol for Modbus | Yes |
| With communication interface RS-485 | Yes |
| Supporting protocol for LON | No |
| With communication interface KNX | No |
| Mounting/installation | |
| Mounting method | Front mounting |
| Performance | |
| Accuracy class | 0.5 |
| Package 1 | |
| volume | 1898,65 cm3 |
| weight | 503 g |
| length | 12,7 cm |
| width | 11,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480614026 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 6,667 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 43606480614024 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 63,336 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 96 |
| qmin | 96 |
| um | PF |
