Descriere

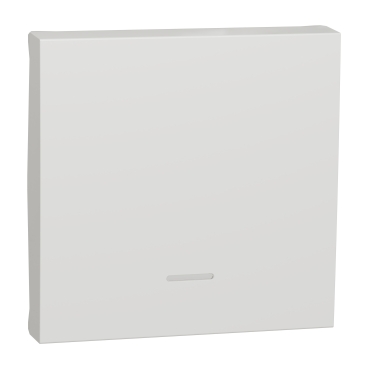

Noua Unica, Clapeta pentru intrerupator indicator luminos 2m alb
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Specificatii
| Colour | |
| Colour | White |
| RAL-number (similar) | 9003 |
| Material | |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Measurements | |
| Width | 45 mm |
| Depth | 9 mm |
| Height | 45 mm |
| Model/type | |
| Model | One-part rocker |
| With exchangeable lens/symbol | No |
| With label area | No |
| Mounting/installation | |
| Type of fastening | Engage (snap) |
| Application | |
| Suitable for touch sensor connector for bus system | No |
| Utilization | Switch/push button |
| Protection | |
| Suitable for degree of protection (IP) | IP40 |
| Other | |
| Imprint/indication | None |
| Impact strength | IK04 |
| Options | |
| Monitoring window/light outlet | Yes |
| Anti-bacterial treatment | No |
| Scannable symbol/barrier free | No |
| Package 1 | |
| volume | 20,25 cm3 |
| weight | 6 g |
| length | 4,5 cm |
| width | 4,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489458683 |
| Package 2 | |
| volume | 1479,075 cm3 |
| weight | 118 g |
| length | 18,5 cm |
| width | 12,3 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606489458680 |
| Package 3 | |
| volume | 9000 cm3 |
| weight | 677 g |
| length | 40 cm |
| width | 15 cm |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 43606489458681 |
| Package 4 | |
| weight | 30,17 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 1280 |
| qmin | 1280 |
| um | PF |
