Descriere

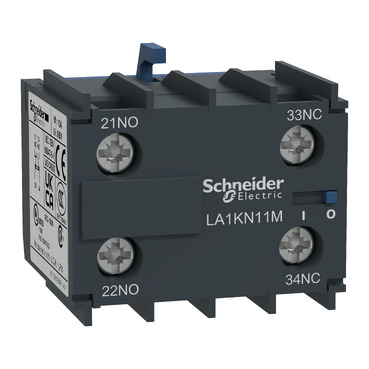

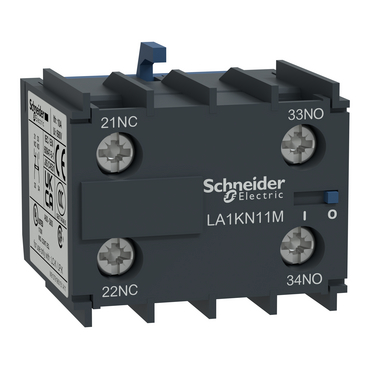

Bloc De Contacte Auxiliar Tesys - 1 No + 1 Nc - Borne Tip Clema Cu Surub
Documente
Fisa tehnica
Specificatii
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Type of electric connection | Screw connection |
| Model/type | |
| Model | Clip-on |
| Lamp holder | - |
| Number of fault-signal switches | 0 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 10 A |
| Mounting/installation | |
| Mounting method | Front fastening |
| Package 1 | |
| volume | 46,41 cm3 |
| weight | 31 g |
| length | 3,9 cm |
| width | 3,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110428407 |
| Package 2 | |
| volume | 1200 cm3 |
| weight | 313 g |
| length | 16 cm |
| width | 15 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13389110428404 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 3,61 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 100 |
| qmin | 100 |
| um | CT |
| gtin | 23389110428401 |
