Descriere

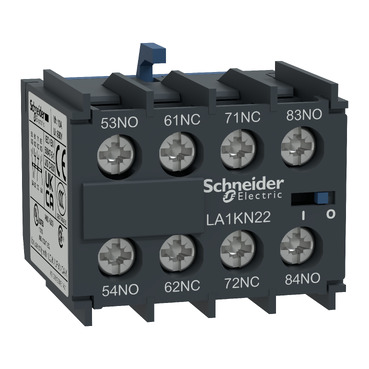

Bloc De Contacte Auxiliar Tesys - 4 No - Borne Tip Clema Cu Surub
Documente
Fisa tehnica
Specificatii
| Connection | |
| Number of contacts as normally open contact | 4 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Screw connection |
| Model/type | |
| Model | Clip-on |
| Lamp holder | - |
| Number of fault-signal switches | 0 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 10 A |
| Mounting/installation | |
| Mounting method | Front fastening |
| Package 1 | |
| volume | 59,2 cm3 |
| weight | 40 g |
| length | 4 cm |
| width | 4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110500073 |
| Package 2 | |
| volume | 1445 cm3 |
| weight | 401 g |
| length | 17 cm |
| width | 17 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13389110500070 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 4,5 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 100 |
| qmin | 100 |
| um | CT |
| gtin | 23389110500077 |
