Descriere
Bloc terminal cu surub, 4 pct, 2.5 MM², gri
Documente
Specificatii
| Connection | |
| Type of electrical connection 2 | Spring clamp connection |
| Number of levels | 2 |
| Type of electrical connection 1 | Spring clamp connection |
| Connectable conductor cross section solid-core | 0.08 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.2 mm² |
| Connectable conductor cross section multi-wired | 0.08 mm² |
| Number of clamp positions per level | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.08 mm² |
| Colour | |
| Colour | Grey |
| Measurements | |
| Width | 5.2 mm |
| Depth | 78 mm |
| Height | 55 mm |
| Electrical | |
| Rated voltage | 500 V |
| Rated current In | 22 A |
| Options | |
| Internally connected stages | No |
| Protection | |
| Inflammability class of insulation material according to UL94 | V0 |
| Explosion-tested version 'Ex e' | Yes |
| Mounting/installation | |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Operating conditions | |
| Closing plate required | Yes |
| Operating temperature | -40 °C |
| Material | |
| Material insulation body | Thermoplastic |
| Package 1 | |
| volume | 275,4 cm3 |
| weight | 12 g |
| length | 5,4 cm |
| width | 8,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480532627 |
| Package 2 | |
| volume | 1377 cm3 |
| weight | 612 g |
| length | 27 cm |
| width | 8,5 cm |
| qmax | 50 |
| qmin | 50 |
| um | BX |
| gtin | 13606480532624 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 11,546 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 900 |
| qmin | 900 |
| um | CT |
| gtin | 43606480532625 |
| Package 4 | |
| weight | 102,332 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 7200 |
| qmin | 7200 |
| um | PF |

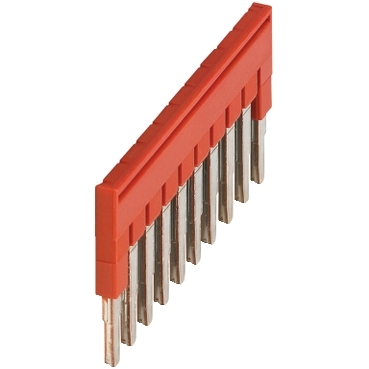

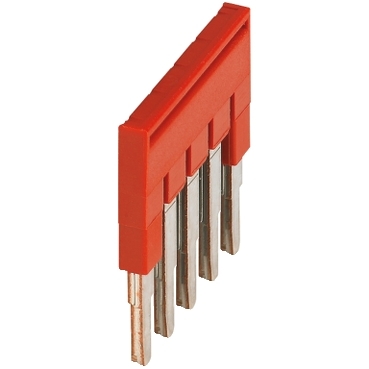

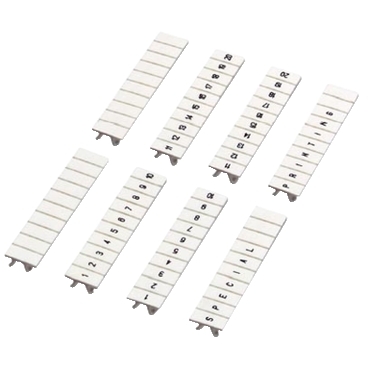

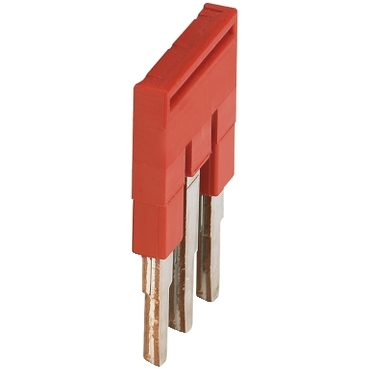

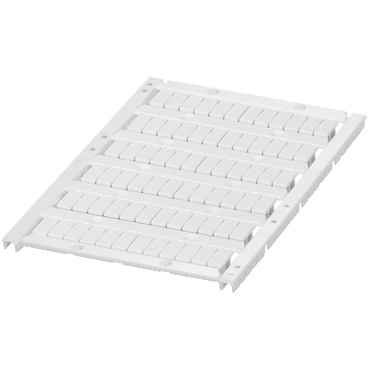

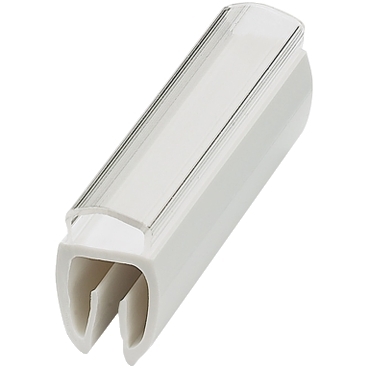

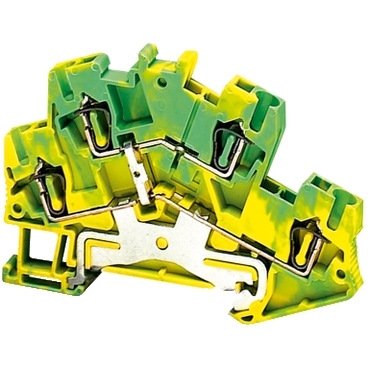

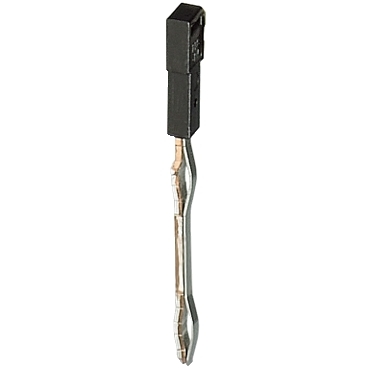

Accesorii
