Descriere
Prisma PlusSuport Pt 100 X 10 Mm Bara VerticalaTablou De Comanda Deconectabil
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Specificatii
| Connection | |
| Type of electrical connection 2 | Spring clamp connection |
| Number of levels | 1 |
| Type of electrical connection 1 | Spring clamp connection |
| Connectable conductor cross section solid-core | 0.08 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.08 mm² |
| Connectable conductor cross section multi-wired | 0.08 mm² |
| Number of clamp positions per level | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.08 mm² |
| Colour | |

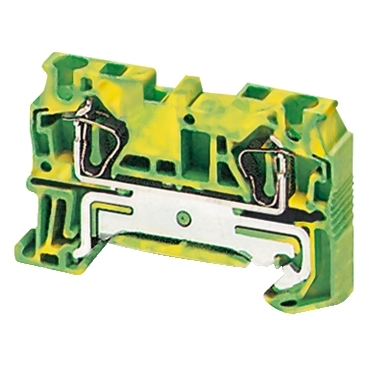

| Colour | Green/yellow |
| Measurements | |
| Width | 6.2 mm |
| Depth | 56 mm |
| Height | 36.5 mm |
| Protection | |
| Inflammability class of insulation material according to UL94 | V0 |
| Mounting/installation | |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Options | |
| PEN function possible | No |
| Operating conditions | |

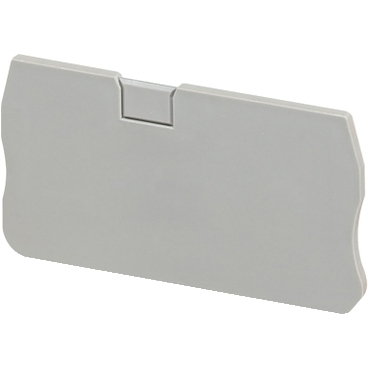

| Closing plate required | Yes |
| Operating temperature | -40 °C |
| Material | |
| Material insulation body | Thermoplastic |
| Package 1 | |
| volume | 257,6 cm3 |
| weight | 12 g |
| length | 8 cm |
| width | 7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480532702 |
| Package 2 | |
| volume | 1030,4 cm3 |
| weight | 648 g |
| length | 32 cm |
| width | 7 cm |
| qmax | 50 |
| qmin | 50 |
| um | BX |
| gtin | 13606480532709 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 11,396 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 850 |
| qmin | 850 |
| um | CT |
| gtin | 43606480532700 |
