Descriere
Bloc Terminal Cu Impamantare Linergy2.5Mm² 1Nivel 1X2 Conex. Cu ArcVerde-Galben
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Specificatii
| Colour | |
| Colour | Blue |
| Connection | |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 1 |
| Type of electrical connection 1 | Screw connection |
| Connectable conductor cross section solid-core | 16 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | - |
| Connectable conductor cross section multi-wired | - |
| Number of clamp positions per level | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve | 25 mm² |
| Electrical | |
| Rated voltage | 1000 V |
| Rated current In | 192 A |
| Measurements | |
| Width | 20.3 mm |
| Depth | 70.5 mm |
| Height | 87.5 mm |
| Options | |
| Internally connected stages | - |
| Protection | |
| Inflammability class of insulation material according to UL94 | V0 |
| Explosion-tested version 'Ex e' | No |
| Mounting/installation | |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Operating conditions | |
| Closing plate required | Yes |
| Operating temperature | -40 °C |
| Material | |
| Material insulation body | Thermoplastic |
| Package 1 | |
| volume | 1893,084 cm3 |
| weight | 142,9 g |
| length | 18,05 cm |
| width | 11,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480794209 |
| Package 2 | |
| volume | 3786,168 cm3 |
| weight | 1,638 kg |
| length | 36,1 cm |
| width | 11,4 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480794206 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 10,299 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 43606480794207 |

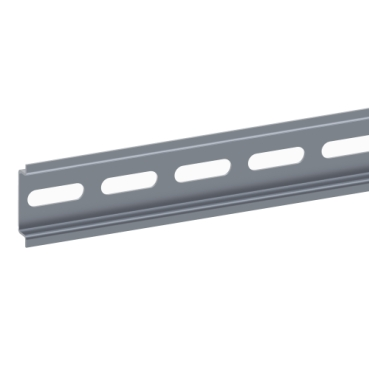

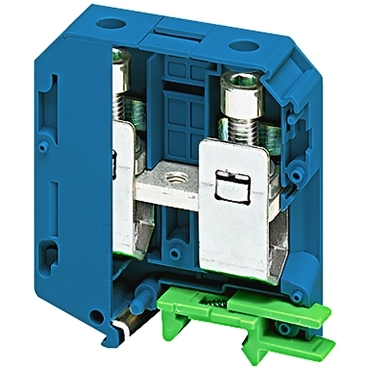

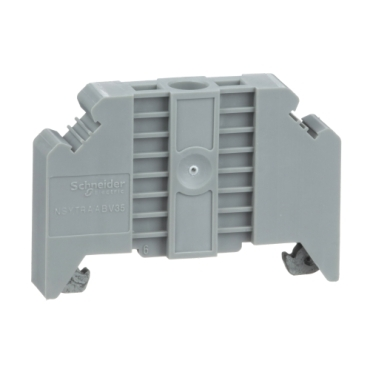

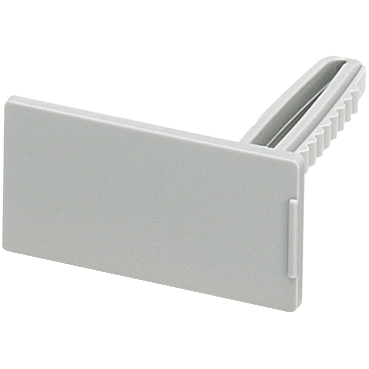

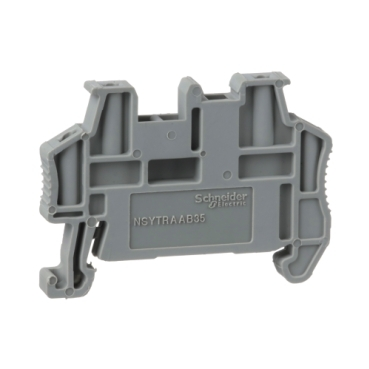

Accesorii
