Descriere

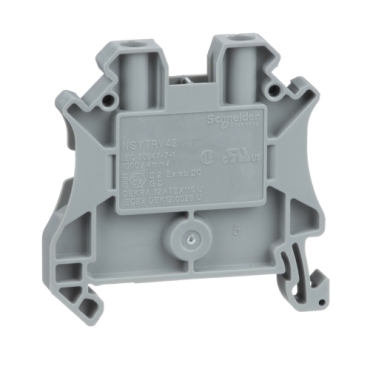

Bloc Terminal De Trecere Mini Linergy2.5Mm² 24A 1Nivel 2X2 Conex. Cu ArcAlbastru
Documente
Specificatii
| Connection | |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 1 |
| Type of electrical connection 1 | Screw connection |
| Connectable conductor cross section solid-core | 0.14 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.2 mm² |
| Connectable conductor cross section multi-wired | 0.14 mm² |
| Number of clamp positions per level | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.14 mm² |
| Colour | |
| Colour | Grey |
| Measurements | |
| Width | 6.2 mm |
| Depth | 47.7 mm |
| Height | 47.5 mm |
| Electrical | |
| Rated voltage | 1000 V |
| Rated current In | 32 A |
| Options | |
| Internally connected stages | No |
| Protection | |
| Inflammability class of insulation material according to UL94 | V0 |
| Explosion-tested version 'Ex e' | Yes |
| Mounting/installation | |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Operating conditions | |
| Closing plate required | Yes |
| Operating temperature | -40 °C |
| Material | |
| Material insulation body | Thermoplastic |
| Package 1 | |
| volume | 19,6 cm3 |
| weight | 9 g |
| length | 5 cm |
| width | 4,9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480531897 |
| Package 2 | |
| volume | 960 cm3 |
| weight | 471 g |
| length | 32 cm |
| width | 6 cm |
| qmax | 50 |
| qmin | 50 |
| um | BX |
| gtin | 13606480531894 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 114,048 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 10400 |
| qmin | 10400 |
| um | CT |
| gtin | 23606480531891 |
