Descriere

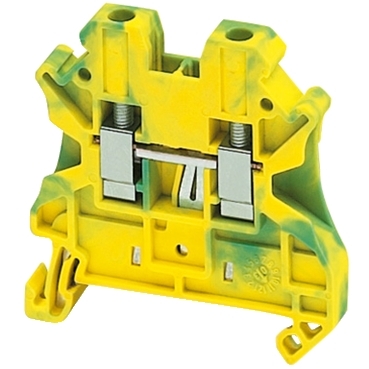

SCREW TERMINAL, PROTECTIVE EARTH, 2 POINTS, 4MM², GREEN-YELLOW
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Specificatii
| Connection | |
| Number of levels | 1 |
| Type of electrical connection 2 | Screw connection |
| Type of electrical connection 1 | Screw connection |
| Connectable conductor cross section solid-core | 0.14 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.14 mm² |
| Connectable conductor cross section multi-wired | 0.14 mm² |
| Number of clamp positions per level | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.14 mm² |
| Colour | |
| Colour | Green/yellow |
| Measurements | |
| Width | 6.2 mm |
| Depth | 47.7 mm |
| Height | 47.5 mm |
| Protection | |
| Inflammability class of insulation material according to UL94 | V0 |
| Mounting/installation | |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Options | |
| PEN function possible | No |
| Operating conditions | |
| Closing plate required | Yes |
| Operating temperature | -40 °C |
| Material | |
| Material insulation body | Thermoplastic |
| Package 1 | |
| volume | 18,432 cm3 |
| weight | 13 g |
| length | 4,8 cm |
| width | 4,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480531965 |
| Package 2 | |
| volume | 928 cm3 |
| weight | 673 g |
| length | 32 cm |
| width | 5,8 cm |
| qmax | 50 |
| qmin | 50 |
| um | BX |
| gtin | 13606480531962 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 151,944 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 10400 |
| qmin | 10400 |
| um | CT |
| gtin | 73606480531964 |
