Descriere

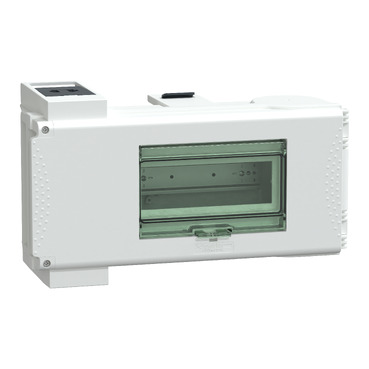

Canalis - Cofret Modular - 63 A - Module 8 X 18 Mm - 3L + Pen
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Measurements | |
| Length | 444 mm |
| Width | 133 mm |
| Height | 220 mm |
| Colour | |
| Colour | White |
| RAL-number | 9001 |
| Model/type | |
| Number of other socket outlets | 0 |
| Number of CEE socket outlets (IEC 60309) | 0 |
| With locking | No |
| Type of socket outlets | Other |
| Branch off type | Pipe in-lead |
| Number of NEMA socket outlets | 0 |
| Protection | |
| Protection | None |
| Degree of protection (IP) | IP55 |
| Degree of protection (NEMA) | - |
| Electrical | |
| Number of conductors (without earthing) | 4 |
| Rated current AC 50 Hz | 63 A |
| Number of poles | 3 |
| Rated voltage AC 50 Hz | 230 V |
| Options | |
| Phase selection | No |
| Package 1 | |
| volume | 11595,36 cm3 |
| weight | 1,98 kg |
| length | 35,7 cm |
| width | 20,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480006142 |
| Package 2 | |
| volume | 1872000 cm3 |
| weight | 100,34 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 38 |
| qmin | 38 |
| um | PF |
| gtin | 73606480006141 |
