Descriere

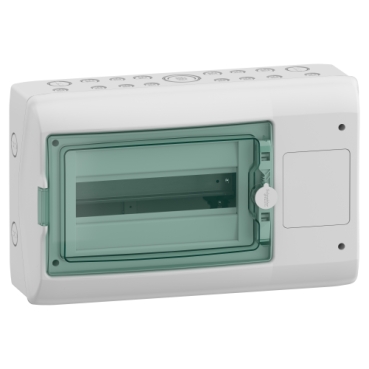

Cofret Kaedra, Multifunctionala, 448 X 280 Mm, 12 Module, 1 deschidere
Documente
Specificatii
| Mounting/installation | |
| With mounting plate | Yes |
| Mounting method | Surface mounted |
| Measurements | |
| Built-in depth | - |
| Width in number of modular spacings | 18 |
| Built-in height | - |
| Height | 280 mm |
| Inner depth | 88 mm |
| Width | 448 mm |
| Built-in width | - |
| Depth | 160 mm |
| Model/type | |
| Type of covering | Door |
| Transparent cover/door | Yes |
| Cover model | Closed |
| Type of closure | Other |
| Number of rows | 1 |
| With lock | No |
| EMC-version | No |
| Earthing terminal block | Yes |
| Neutral terminal block | No |
| Options | |
| Extension possible | Yes |
| Signal passing door | Yes |
| DIN-rail | Yes |
| Colour | |
| RAL-number | 7035 |
| Colour | Grey |
| Protection | |
| Degree of protection (IP) | IP65 |
| Material | |
| Housing material | Plastic |
| Package 1 | |
| volume | 23868 cm3 |
| weight | 2,485 kg |
| length | 46,8 cm |
| width | 30 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430139904 |
| Package 2 | |
| volume | 768000 cm3 |
| weight | 101,46 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 36 |
| qmin | 36 |
| um | PF |
| gtin | 73303430139903 |
