Descriere

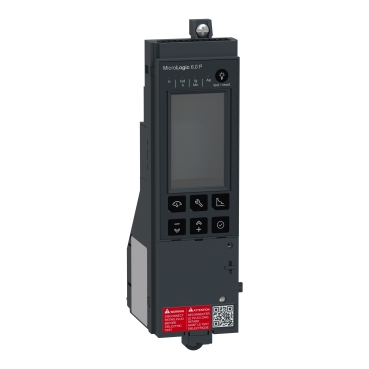

Unitate de declansare MicroLogic 6.0P, ComPacT NS630b..NS1600 debrosabil, cu operare manuala, protectie selectiva si la punere la pamant
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Type of motor protection | Electronic release |
| With ground fault protection function | Yes |
| Electrical | |
| Number of poles | - |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Rated control supply voltage DC | 24 V |
| Voltage type for actuating | Self powered |
| End value adjustment range undelayed short-circuit release | 24000 A |
| Overload release current setting | 252 A |
| Rated permanent current Iu | 1600 A |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | 3200 A |
| Other | |
| Short-circuit release function | Delayed |
| Package 1 | |
| volume | 4 cm3 |
| weight | 10 g |
| length | 2 cm |
| width | 1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606482098428 |
