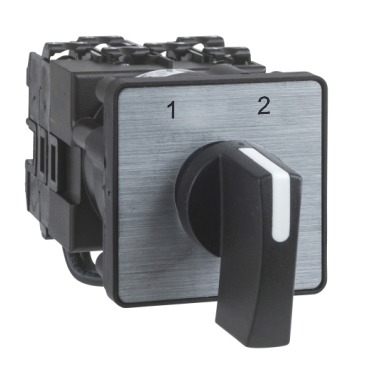

Comutator Cu Came - 1 Pol - 60° - 10 A - Pentru Ø 16 Sau 22 Mm
Documente
Specificatii
| Model/type | |
| With retraction in 0-position | No |
| With zero (off) position | No |
| Model | Reverser |
| Type of control element | Long rotary handle |
| Complete device in housing | Yes |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Electrical | |
| Rated operation power at AC-3, 400 V | - |
| Rated permanent current Iu | 10 A |
| Number of poles | 1 |
| Rated operation current Ie at AC-3, 400 V | 2 A |
| Material | |
| Housing material | Other |
| Protection | |
| Degree of protection (IP), front side | IP65/IP67 |
| Degree of protection (NEMA), front side | Other |
| Mounting/installation | |
| Suitable for front mounting | Yes |
| Suitable for intermediate mounting | Yes |
| Suitable for floor mounting | No |
| Application | |
| Suitable for distribution board installation | No |
| Package 1 | |
| volume | 131,2 cm3 |
| weight | 54 g |
| length | 4,1 cm |
| width | 4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110076707 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 4,695 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 80 |
| qmin | 80 |
| um | CT |
| gtin | 23389110076701 |
