Descriere

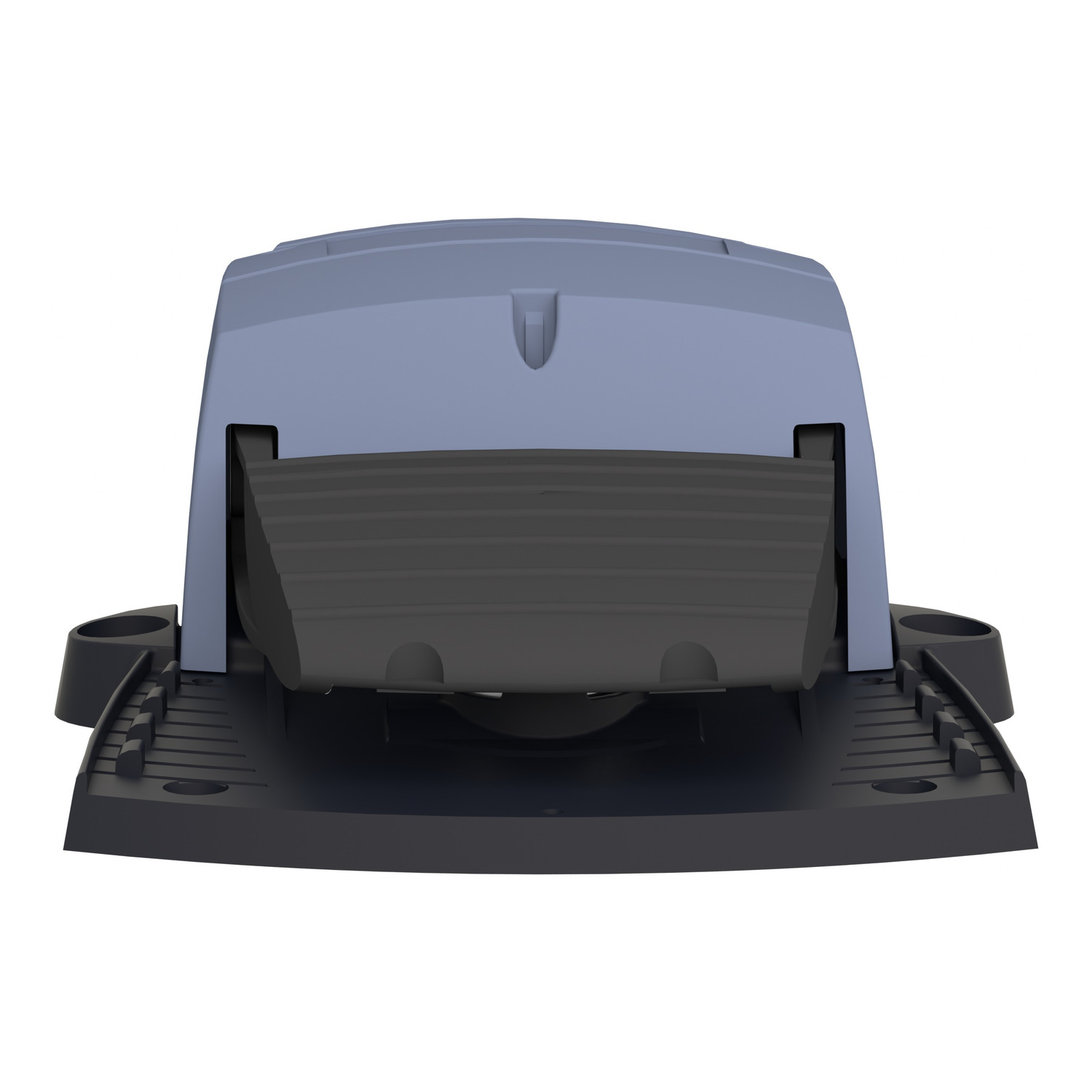

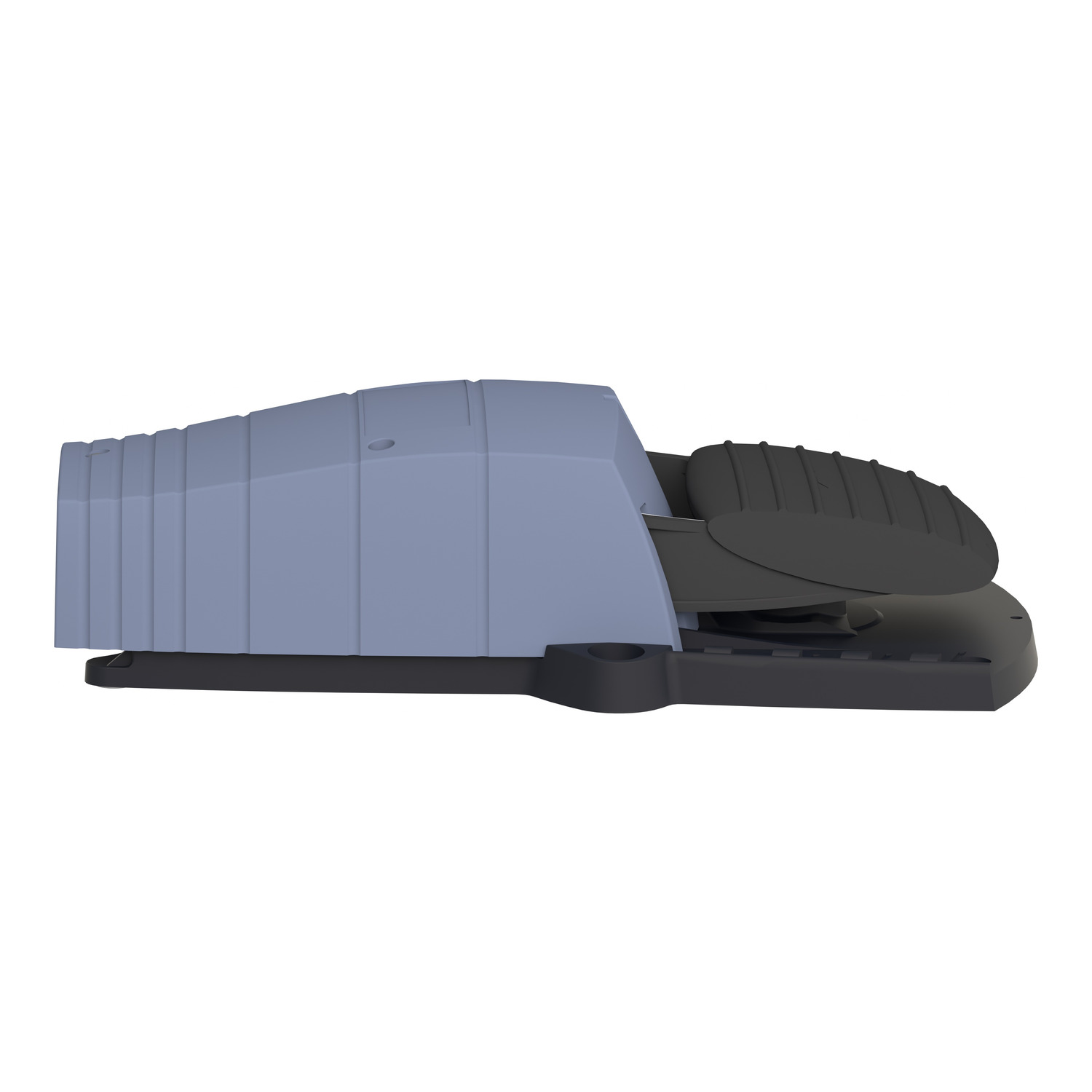

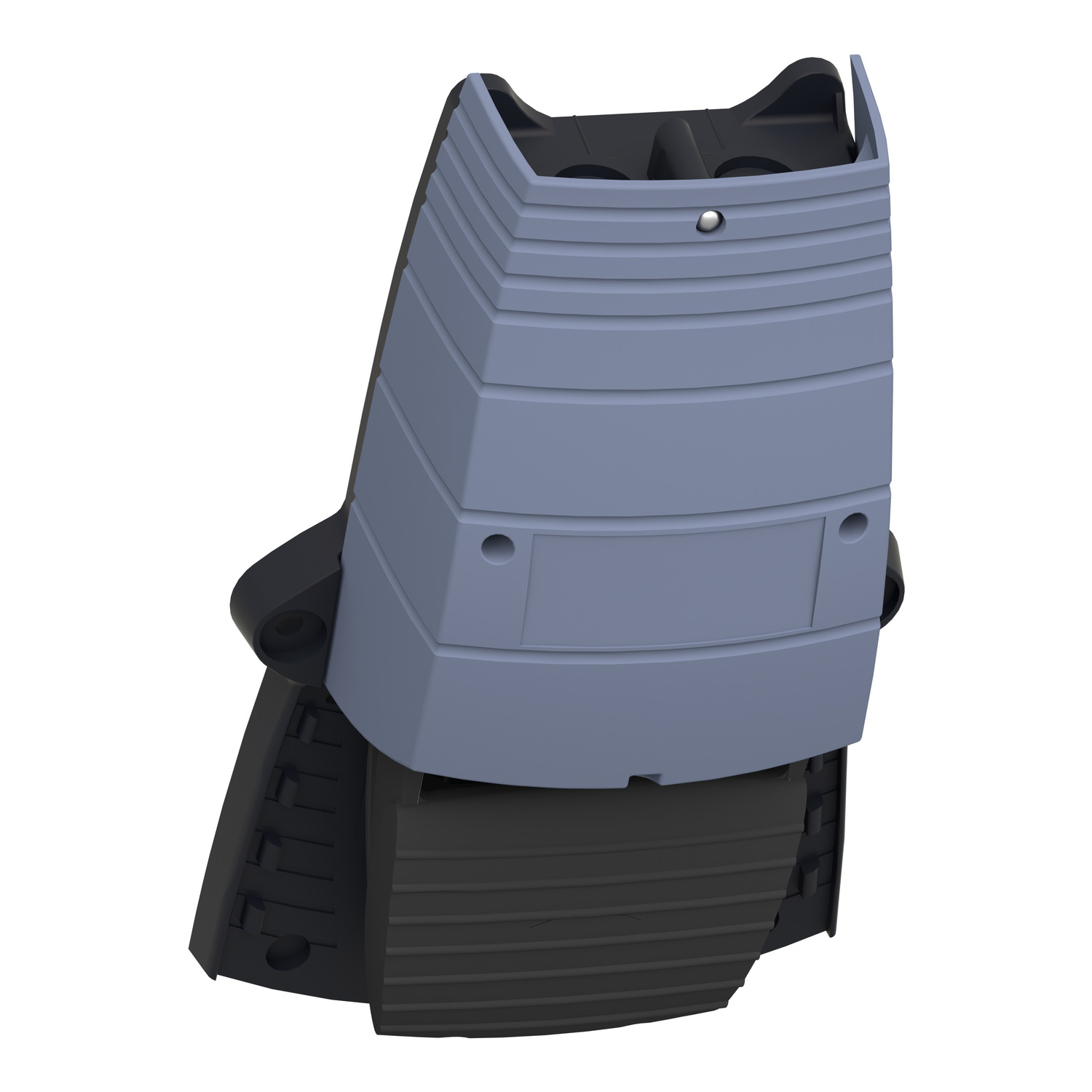

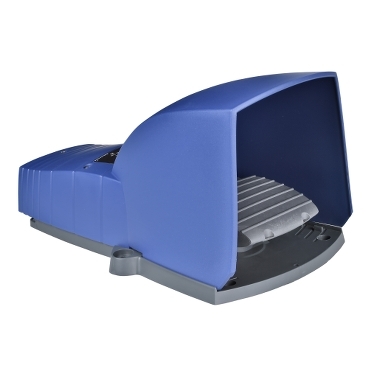

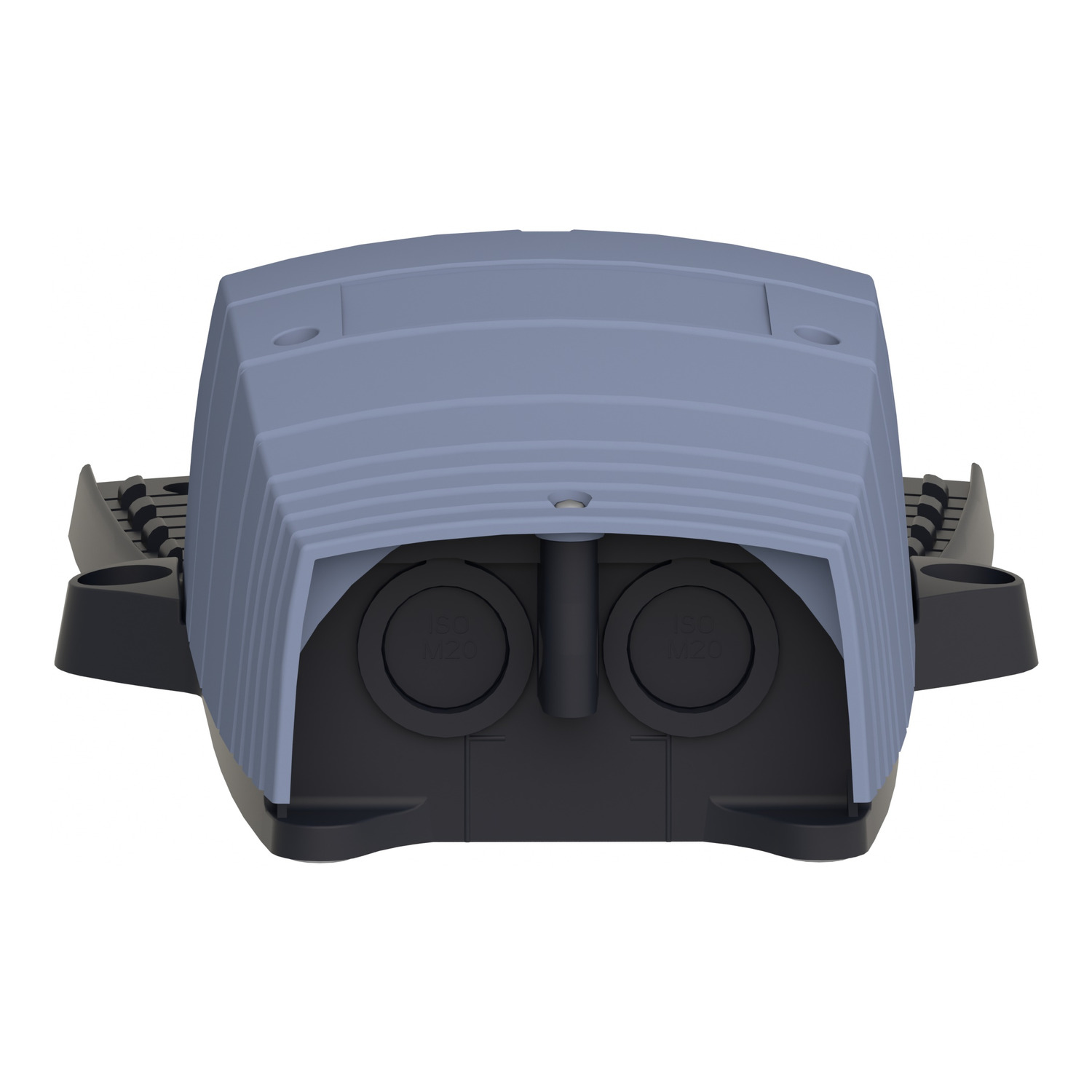

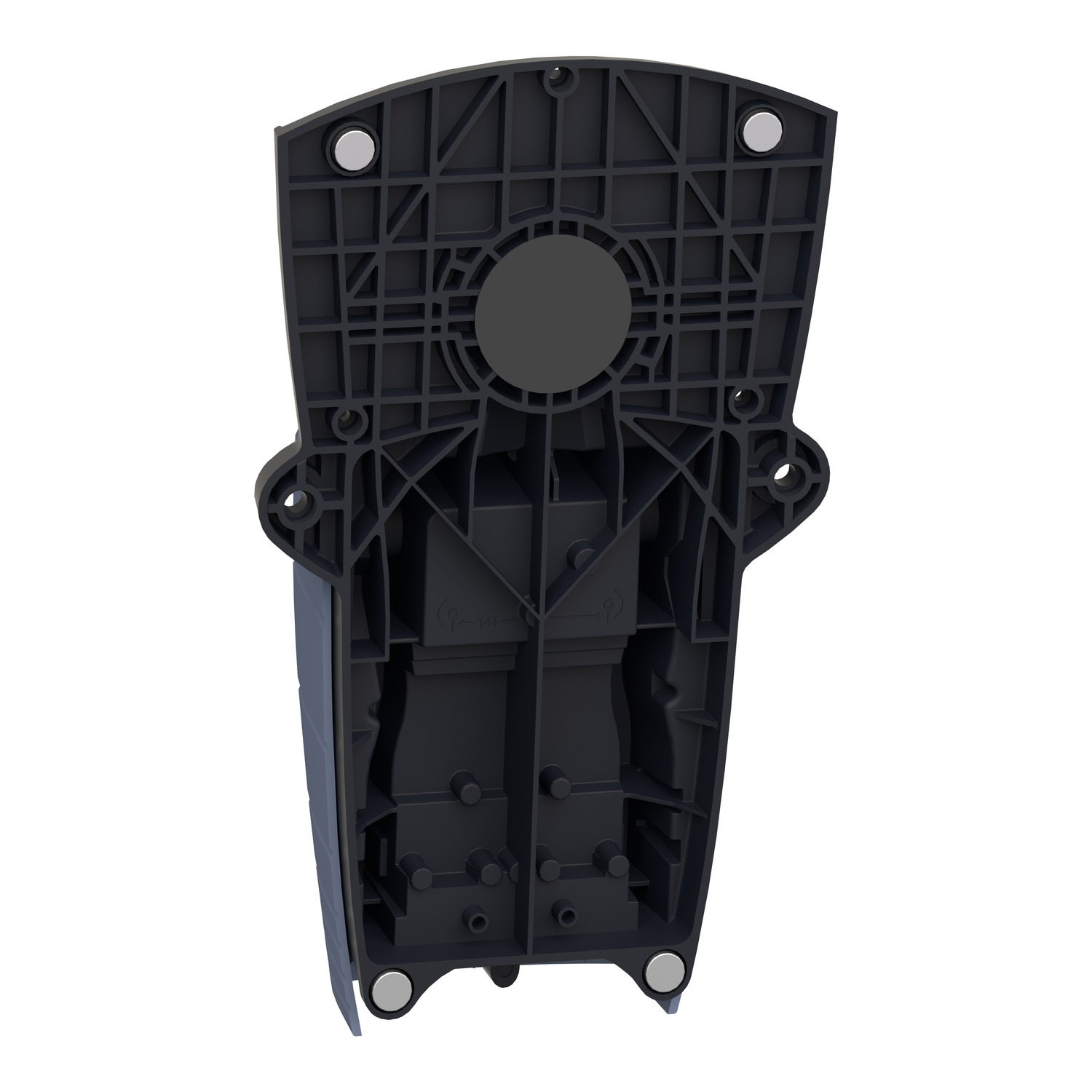

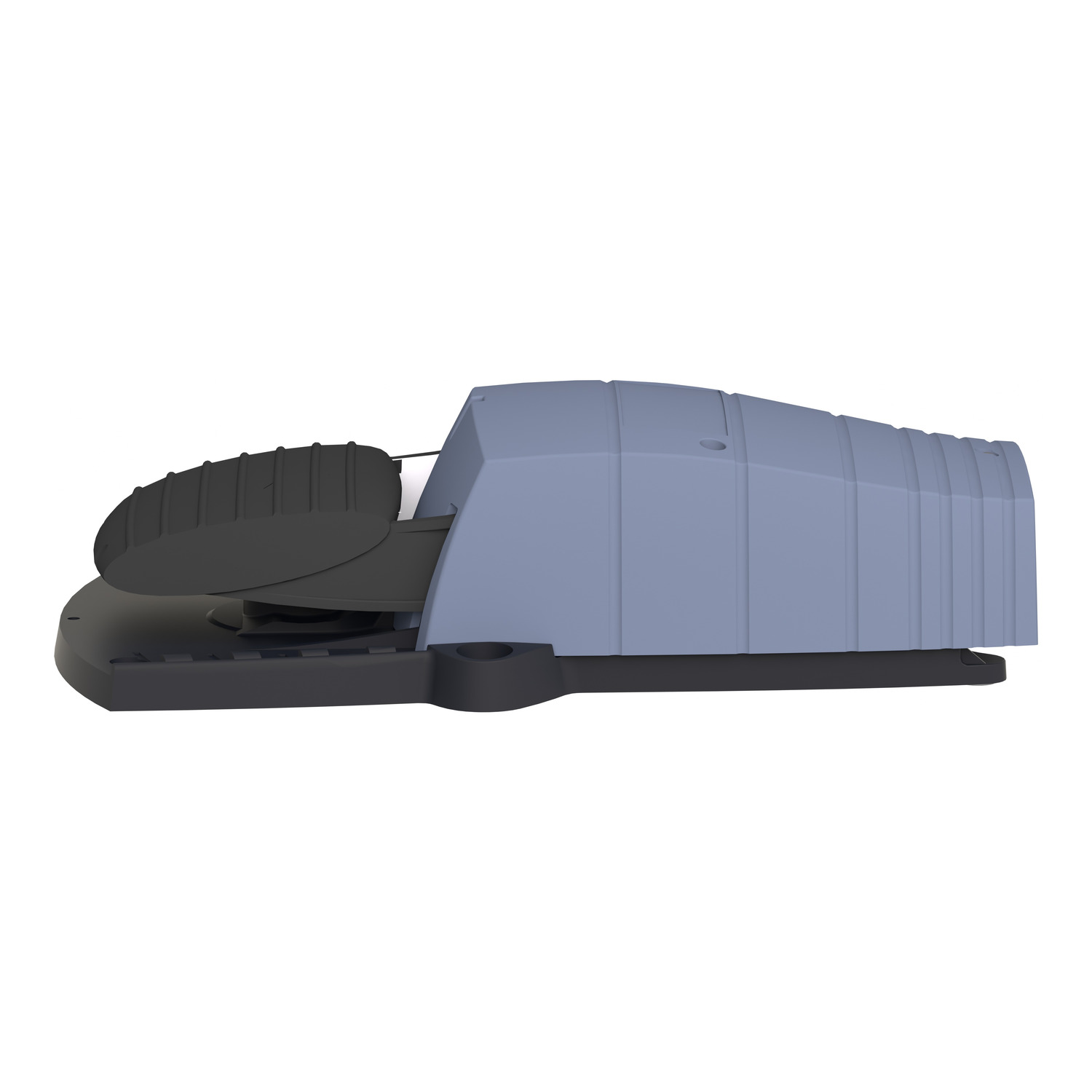

Intreruptor Pedala Simplu - Ip66 - Fara Capac - Plastic - Albastru - 1Ni + 1Nd
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Colour | |
| Colour | Blue |
| Measurements | |
| Width | 165 mm |
| Depth | 282 mm |
| Height | 74 mm |
| Setting/control | |
| Number of switch positions | 1 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Model/type | |
| With protective insulation | No |
| With protection hood | No |
| Type of command | On or off |
| With interlocking | No |
| Application | |
| Suitable for safety functions | Yes |
| Material | |
| Material | Plastic |
| Options | |
| Switching function latching | No |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 4445,7 cm3 |
| weight | 809 g |
| length | 29,2 cm |
| width | 17,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110165654 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 10,575 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 43389110165652 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 52,004 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 48 |
| qmin | 48 |
| um | PF |
