Descriere

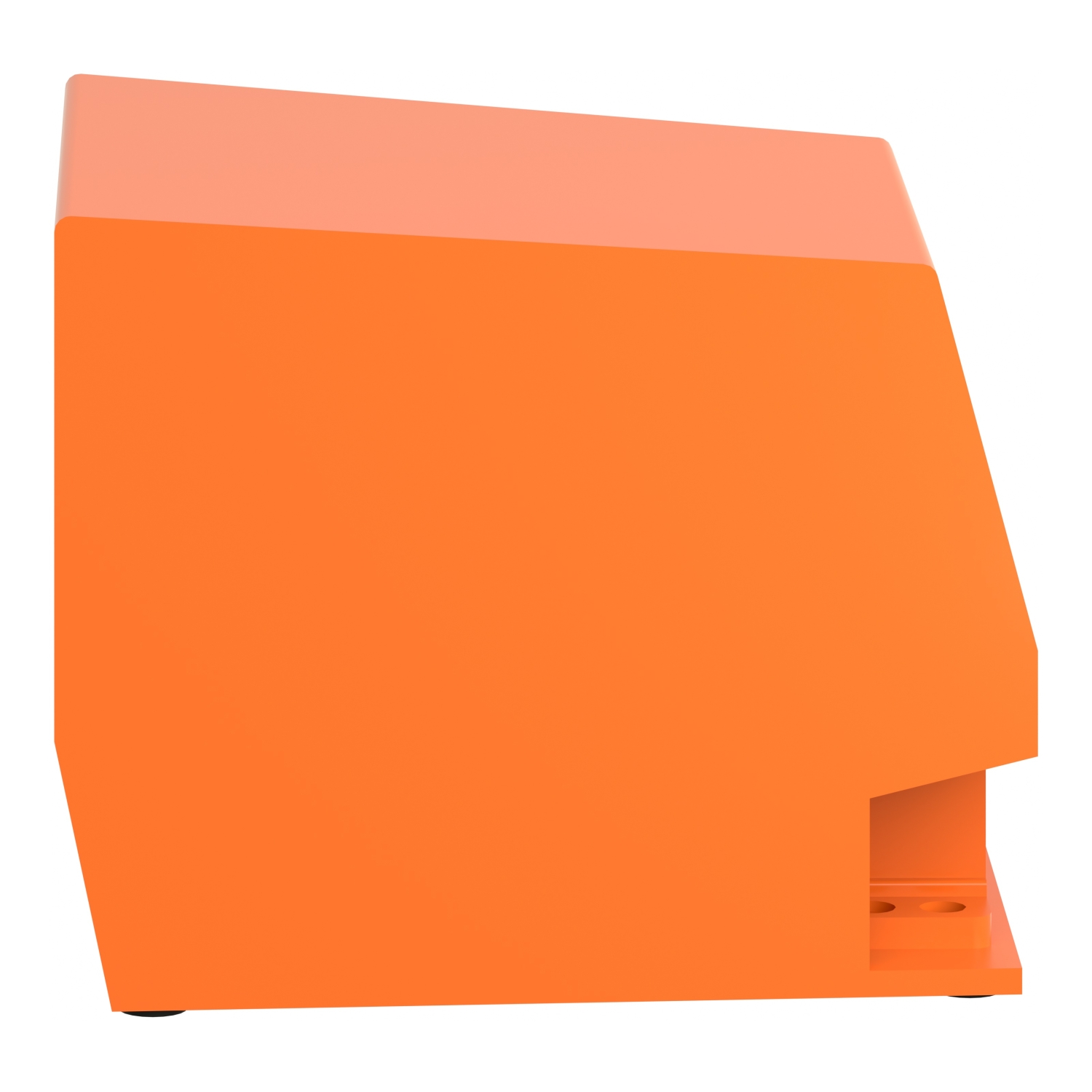

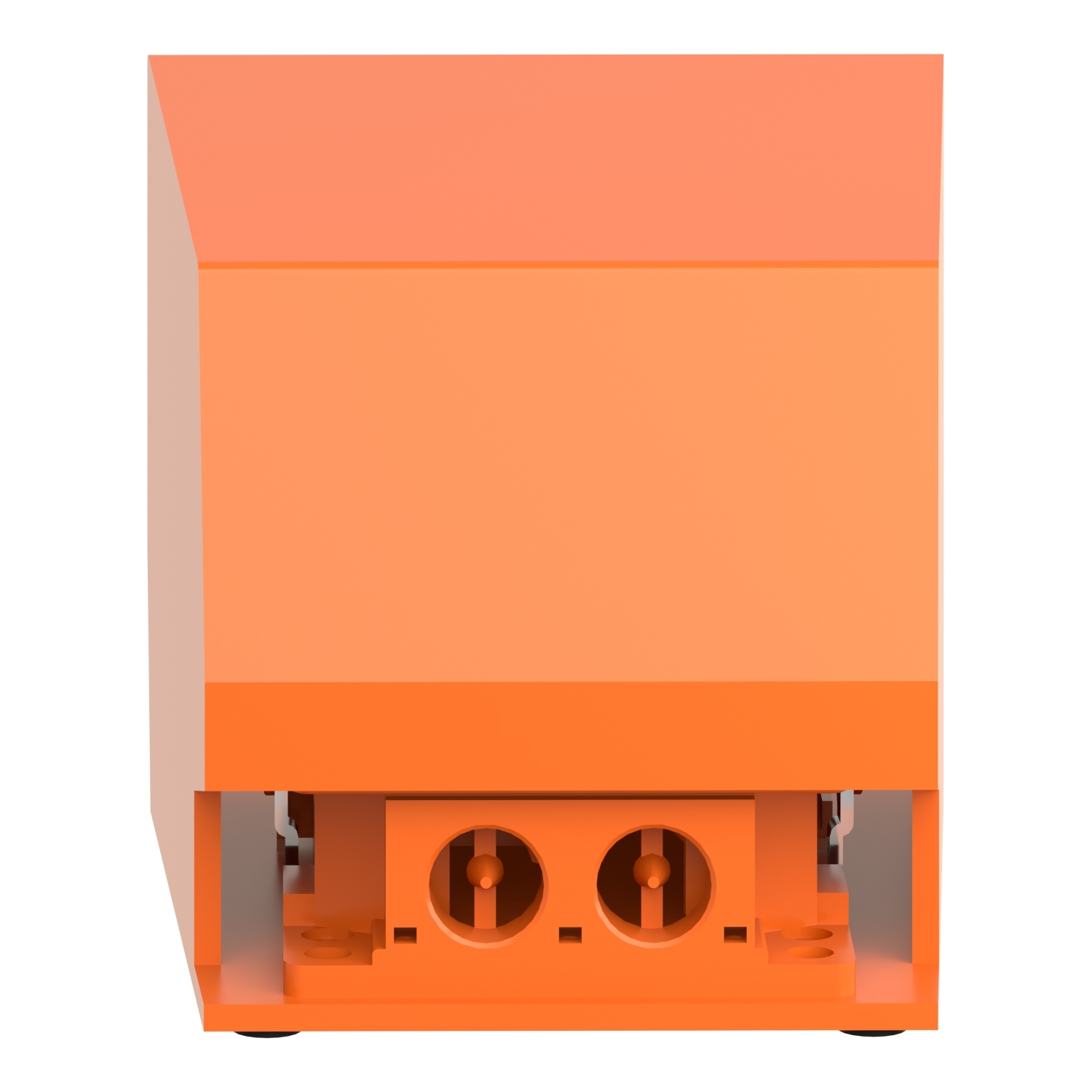

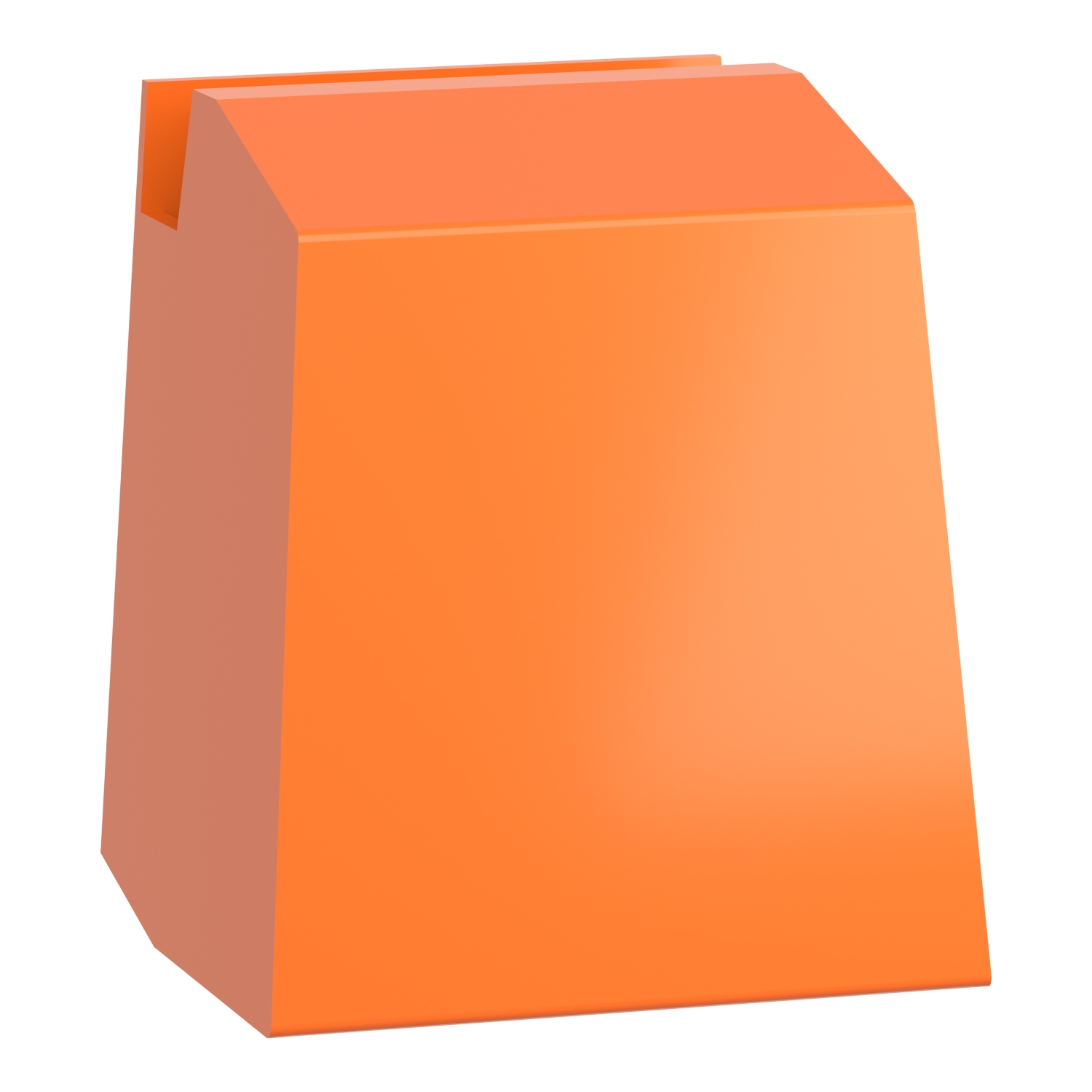

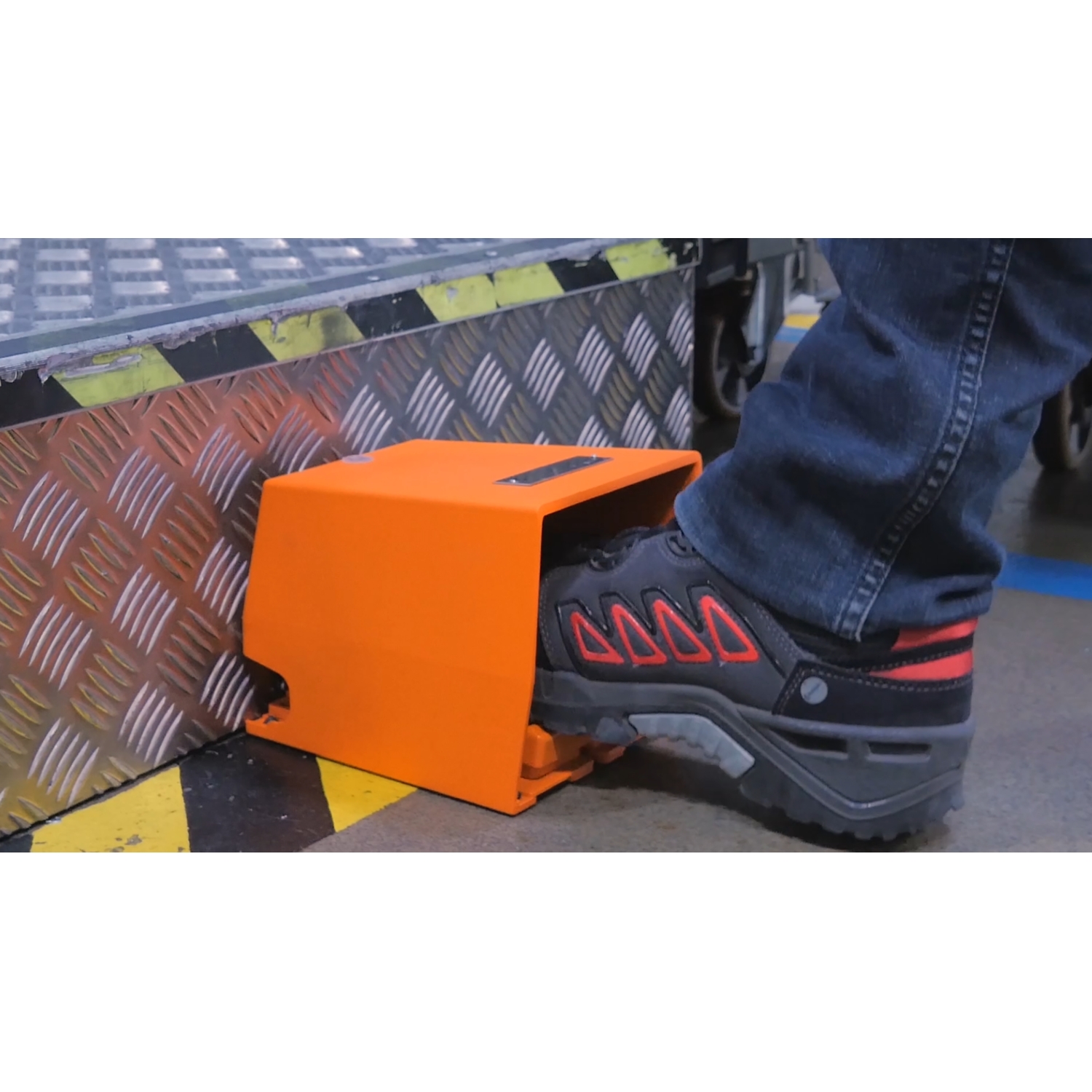

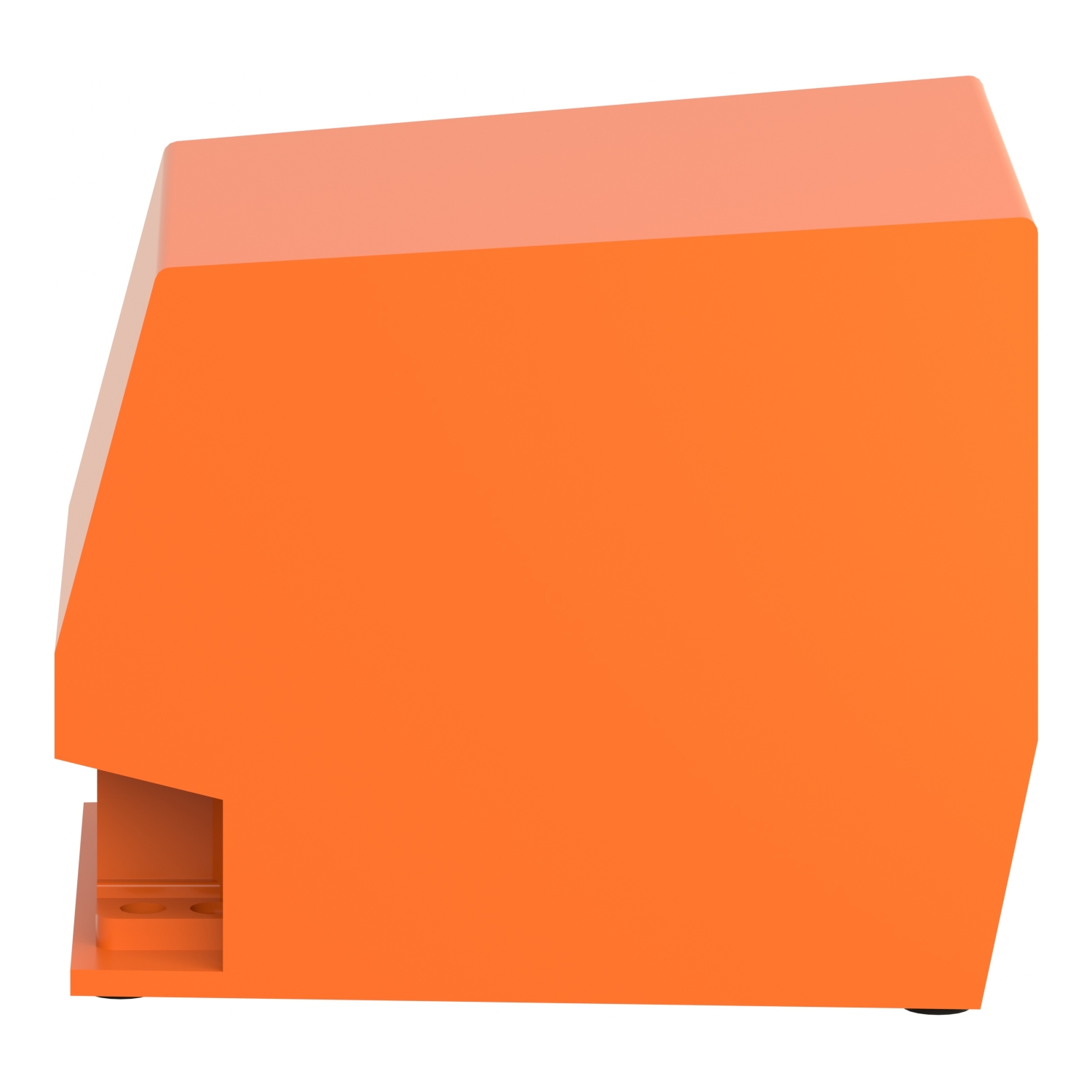

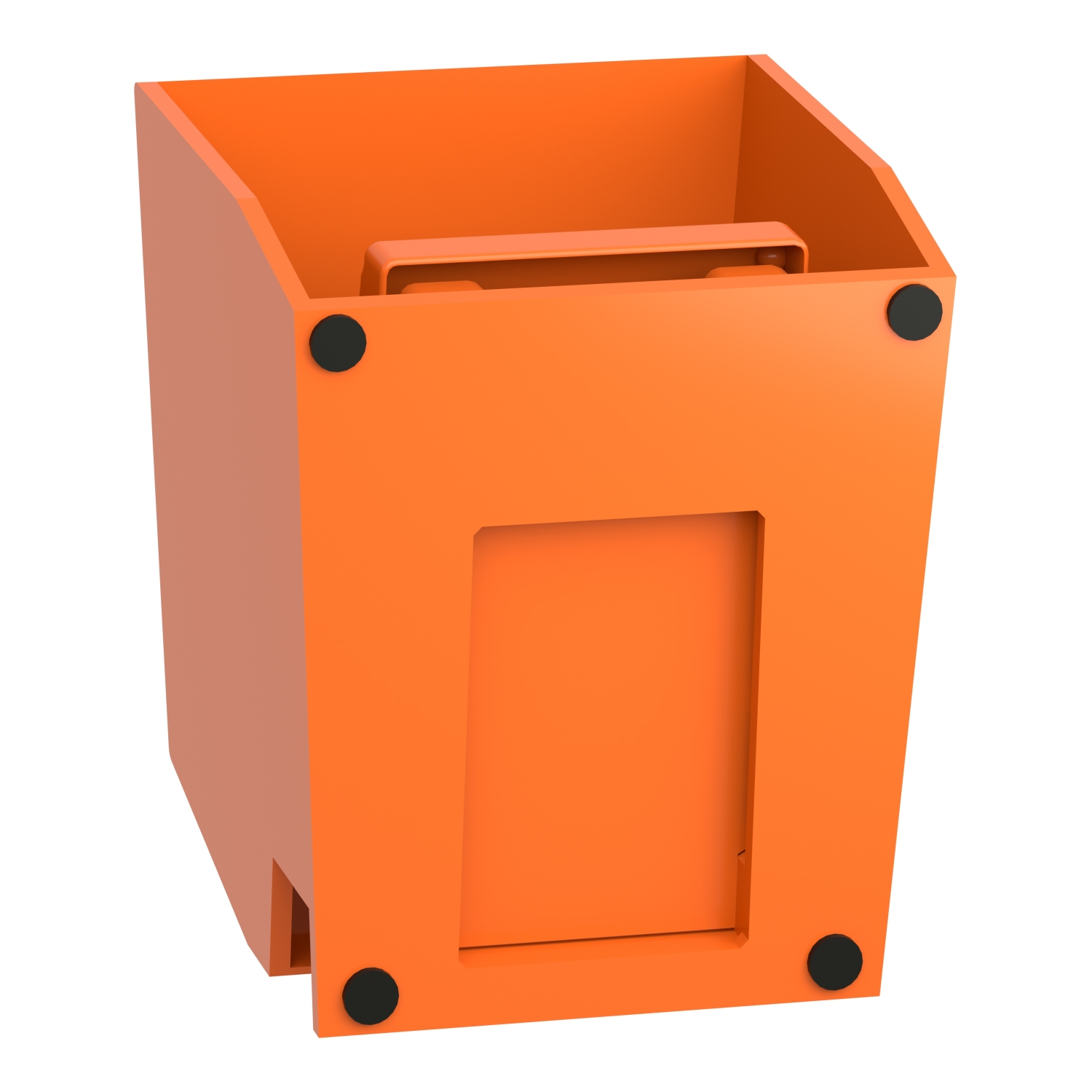

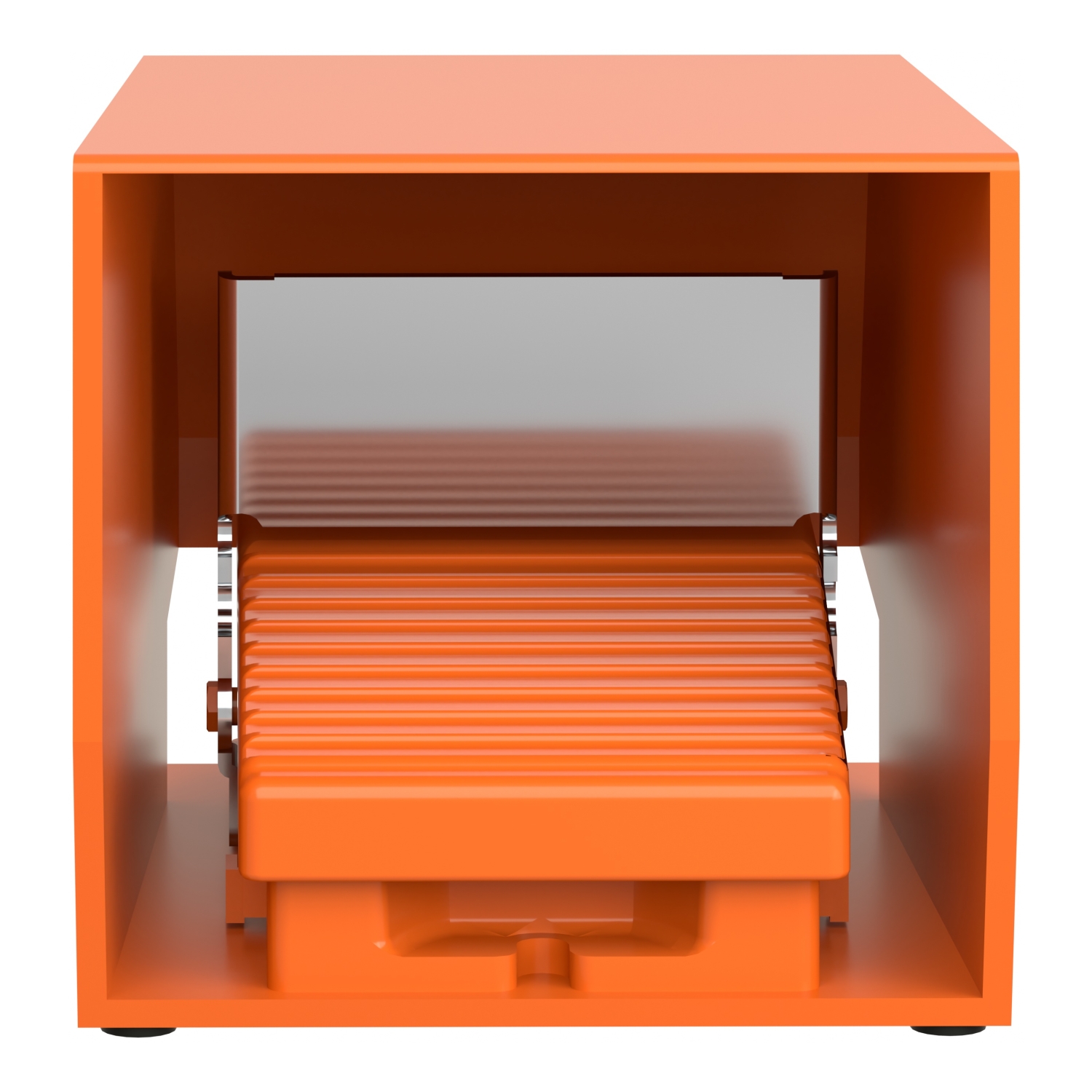

Comutator Picior Simplu - Ip66 -Cu Capac -Metalic -Portocaliu - 1 Nc + 1 No
Documente
Fisa tehnica
Instructiuni
Altele
Specificatii
| Colour | |
| Colour | Orange |
| Measurements | |
| Width | 160 mm |
| Depth | 186 mm |
| Height | 135 mm |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Setting/control | |
| Number of switch positions | 1 |
| Material | |
| Material | Metal |
| Application | |
| Suitable for safety functions | Yes |
| Model/type | |
| With protection hood | Yes |
| With protective insulation | No |
| Type of command | On or off |
| With interlocking | Yes |
| Options | |
| Switching function latching | No |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 5445 cm3 |
| weight | 2,634 kg |
| length | 20 cm |
| width | 16,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110470956 |
| Package 2 | |
| volume | 360000 cm3 |
| weight | 87,49 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 73389110470955 |
