Descriere

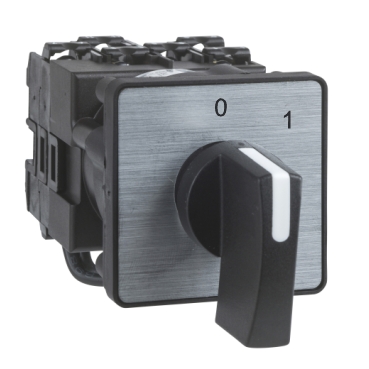

Comutator Cu Came - 2 Poli - 45° - 12 A - Montare Cu Suruburi
Documente
Fisa tehnica
Instructiuni
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Model/type | |
| With zero (off) position | Yes |
| With retraction in 0-position | No |
| Type of control element | Long rotary handle |
| Model | On/off switch |
| Complete device in housing | Yes |
| Electrical | |
| Rated operation power at AC-3, 400 V | 1.5 kW |
| Rated permanent current Iu | 12 A |
| Number of poles | 2 |
| Rated operation current Ie at AC-3, 400 V | 3.3 A |
| Material | |
| Housing material | Plastic |
| Protection | |
| Degree of protection (IP), front side | IP40 |
| Degree of protection (NEMA), front side | - |
| Mounting/installation | |
| Suitable for front mounting | Yes |
| Suitable for intermediate mounting | Yes |
| Suitable for floor mounting | No |
| Application | |
| Suitable for distribution board installation | No |
| Package 1 | |
| volume | 464,75 cm3 |
| weight | 131 g |
| length | 11 cm |
| width | 6,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110079326 |
| Package 2 | |
| volume | 9000 cm3 |
| weight | 1,441 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 23389110079320 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 54,112 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 320 |
| qmin | 320 |
| um | PF |
