Descriere

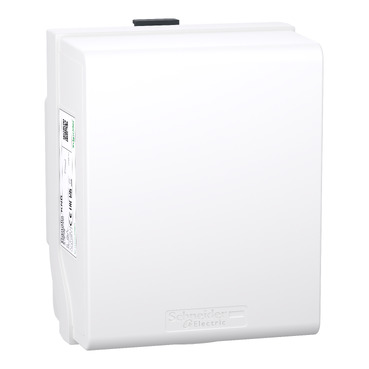

Canalis - Cofret Derivatie Pentru Siguranta Bs88 - A1 - 20 A - 3L + N + Pe
Documente
Fisa tehnica
Specificatii
| Colour | |
| Colour | White |
| RAL-number | 9001 |
| Measurements | |
| Length | 135 mm |
| Width | 90 mm |
| Height | 165 mm |
| Protection | |
| Protection | None |
| Degree of protection (IP) | IP55 |
| Degree of protection (NEMA) | - |
| Model/type | |
| Number of other socket outlets | 0 |
| Number of CEE socket outlets (IEC 60309) | 0 |
| With locking | No |
| Type of socket outlets | Other |
| Branch off type | Pipe in-lead |
| Number of NEMA socket outlets | 0 |
| Electrical | |
| Number of conductors (without earthing) | 4 |
| Rated current AC 50 Hz | 20 A |
| Number of poles | 4 |
| Rated voltage AC 50 Hz | 230 V |
| Options | |
| Phase selection | No |
| Package 1 | |
| volume | 2844,576 cm3 |
| weight | 634 g |
| length | 13,6 cm |
| width | 16,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480006173 |
| Package 2 | |
| volume | 768000 cm3 |
| weight | 107 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 144 |
| qmin | 144 |
| um | PF |
| gtin | 73606480006172 |
