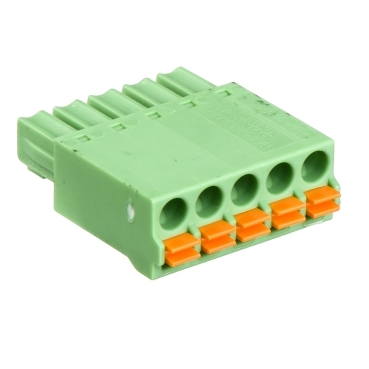

Set De 12 Conectori Cu Arc 5 Pini Ti24
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electric connection | Spring clamp connection |
| Number of power contacts | 0 |
| Connectable conductor cross section solid-core | 0.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25 mm² |
| Connectable conductor cross section multi-wired | 0.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.25 mm² |
| Model/type | |
| With wire protection | Yes |
| With protective conductor | No |
| Contact type | Pin |
| Contact insert without contacts | No |
| Electrical | |
| Rated surge voltage | 2.5 kV |
| Number of poles | 5 |
| Overvoltage category | III |
| Rated voltage | 24 V |
| Rated current In | 8 A |
| Material | |
| Material connector insert | Thermoplastic |
| Material of contact surface | - |
| Material of contact insert | - |
| Material contact | Nickel |
| Other | |
| Min. number of insertion cycles | 100 |
| Pollution degree | 2 |
| Measurements | |
| Height | 7.8 mm |
| Width | 19.54 mm |
| Depth | 22.9 mm |
| Diameter plug-in contact | 2.2 mm |
| Setting/control | |
| Number of control contacts | 5 |
| Operating conditions | |
| Ambient temperature | 0 °C |
| Operating temperature | 0 °C |
| Protection | |
| Inflammability class of insulation material according to UL94 | V0 |
| Package 1 | |
| volume | 237,5 cm3 |
| weight | 40 g |
| length | 12,5 cm |
| width | 9,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480437274 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 4,341 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 100 |
| qmin | 100 |
| um | CT |
| gtin | 43606480437272 |
