Descriere

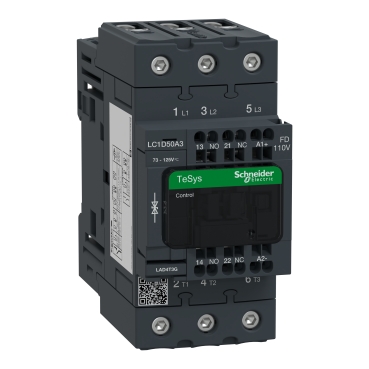

Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 50A, 110V DC standard coil, spring terminals
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Spring clamp connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Rated operation power at AC-3, 400 V | 22 kW |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 80 A |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-3, 400 V | 50 A |
| Rated operation current Ie at AC-4, 400 V | 25 A |
| Rated control supply voltage DC | 110 V |
| Rated operation power at AC-4, 400 V | 11 kW |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 1260 cm3 |
| weight | 850 g |
| length | 15 cm |
| width | 14 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389118327894 |
