Descriere

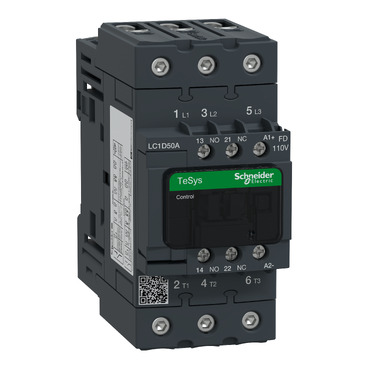

TeSys D contactor - 3P(3 NO) - c.a.-3 - <= 440 V 50 A - 110 V c.c. bobina standard
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Rated operation power at AC-3, 400 V | 22 kW |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 80 A |
| Rated operation current Ie at AC-3, 400 V | 50 A |
| Rated operation current Ie at AC-4, 400 V | 25 A |
| Voltage type for actuating | DC |
| Rated control supply voltage DC | 110 V |
| Rated operation power at AC-4, 400 V | 11 kW |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 1299,582 cm3 |
| weight | 995 g |
| length | 15,3 cm |
| width | 13,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119408813 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 10,288 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 43389119408811 |
