Descriere

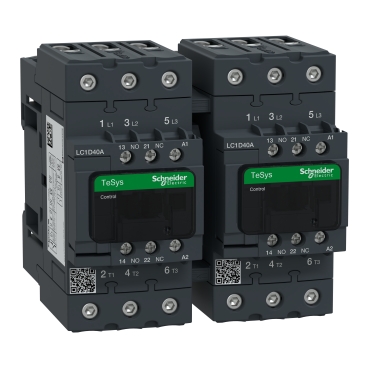

TeSys D contactor invers, 3P(3 NO), c.a.-3, <= 440 V 40 A, 48 V c.a. bobina
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 48 V |
| Rated control supply voltage AC 60 Hz | 48 V |
| Rated operation power at AC-3, 400 V | 18.5 kW |
| Rated operation power NEMA | 22.4 kW |
| Rated operation current Ie at AC-1, 400 V | 60 A |
| Rated control supply voltage DC | - |
| Rated operation current Ie at AC-3, 400 V | 40 A |
| Voltage type for actuating | AC |
| Mounting/installation | |
| Suitable for rail mounting | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Model/type | |
| Function | Reversing contactor |
| Package 1 | |
| volume | 4490,64 cm3 |
| weight | 2,073 kg |
| length | 19,8 cm |
| width | 16,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119409483 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 8,782 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 4 |
| qmin | 4 |
| um | CT |
| gtin | 43389119409481 |
