Descriere

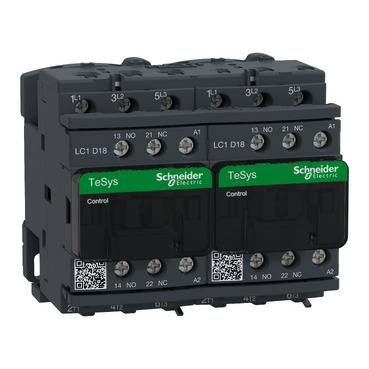

Reversing Contactor, TeSys Deca, 3P(3NO),AC-3, <=440V 18A,220V AC 50/60Hz coil, screw clamp terminals
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 220 V |
| Rated control supply voltage AC 60 Hz | 220 V |
| Rated operation power at AC-3, 400 V | 7.5 kW |
| Rated operation power NEMA | 7.46 kW |
| Rated operation current Ie at AC-1, 400 V | 32 A |
| Rated control supply voltage DC | - |
| Rated operation current Ie at AC-3, 400 V | 18 A |
| Voltage type for actuating | AC |
| Mounting/installation | |
| Suitable for rail mounting | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Model/type | |
| Function | Reversing contactor |
| Package 1 | |
| volume | 1500,24 cm3 |
| weight | 807 g |
| length | 11,4 cm |
| width | 9,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110386462 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 5,209 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 43389110386460 |
