Descriere

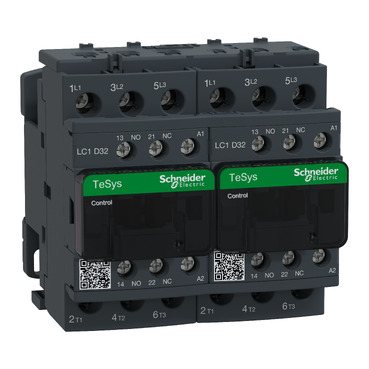

Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, <=440V, 32A, 380V AC 50/60Hz coil, screw clamp terminals
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 380 V |
| Rated control supply voltage AC 60 Hz | 380 V |
| Rated operation power at AC-3, 400 V | 15 kW |
| Rated operation power NEMA | 14.9 kW |
| Rated operation current Ie at AC-1, 400 V | 50 A |
| Rated operation current Ie at AC-3, 400 V | 32 A |
| Rated control supply voltage DC | - |
| Voltage type for actuating | AC |
| Mounting/installation | |
| Suitable for rail mounting | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Model/type | |
| Function | Reversing contactor |
| Package 1 | |
| volume | 1466,268 cm3 |
| weight | 815 g |
| length | 11,8 cm |
| width | 11,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110391589 |
