Descriere

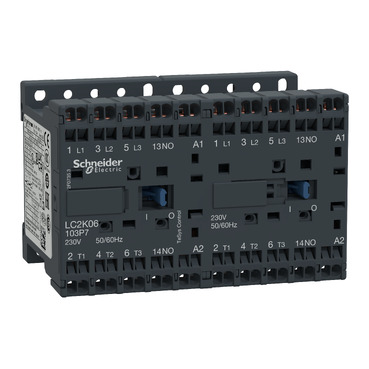

Contactor Reversibil Tesys Lc2-K - 3 Poli - Ac-3 440 V 6 A - Bobina 230 V C.A.
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Spring clamp connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 V |
| Rated control supply voltage AC 60 Hz | 230 V |
| Rated operation power at AC-3, 400 V | 2.2 kW |
| Rated operation power NEMA | 2.24 kW |
| Rated operation current Ie at AC-1, 400 V | - |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-3, 400 V | 6 A |
| Rated control supply voltage DC | - |
| Mounting/installation | |
| Suitable for rail mounting | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Model/type | |
| Function | Reversing contactor |
| Package 1 | |
| volume | 193,44 cm3 |
| weight | 226 g |
| length | 6,5 cm |
| width | 6,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110242539 |
| Package 2 | |
| volume | 9000 cm3 |
| weight | 8,336 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 36 |
| qmin | 36 |
| um | CT |
| gtin | 13389110242536 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 274,752 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 1152 |
| qmin | 1152 |
| um | PF |
