Descriere

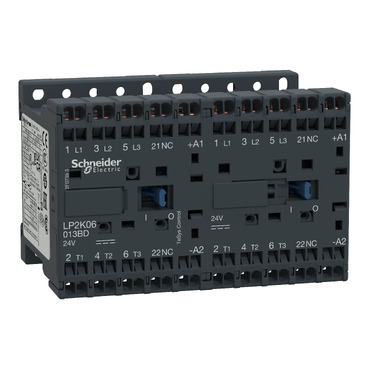

Tesys K Contactor Reversibil - 3P - Ac-3
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Spring clamp connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Type of electrical connection for auxiliary- and control current circuit | Spring clamp connection |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Rated operation power at AC-3, 400 V | 4 kW |
| Rated operation power NEMA | 3.73 kW |
| Rated operation current Ie at AC-1, 400 V | - |
| Rated operation current Ie at AC-3, 400 V | 9 A |
| Voltage type for actuating | DC |
| Rated control supply voltage DC | 24 V |
| Mounting/installation | |
| Suitable for rail mounting | No |
| Model/type | |
| Function | Reversing contactor |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 386,694 cm3 |
| weight | 448 g |
| length | 9,3 cm |
| width | 6,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110242904 |
