Descriere

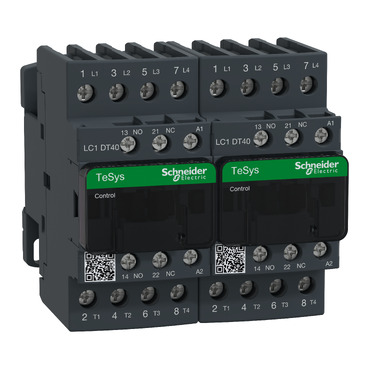

TeSys D contactor de comutare- 4P(4 NO) - c.a.-1 - <= 440 V 40 A - 230 V c.a. bobina
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 2 |
| Number of normally open contacts as main contact | 2 |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 V |
| Rated control supply voltage AC 60 Hz | 230 V |
| Rated operation power at AC-3, 400 V | - |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 40 A |
| Rated operation current Ie at AC-3, 400 V | - |
| Rated control supply voltage DC | - |
| Voltage type for actuating | AC |
| Mounting/installation | |
| Suitable for rail mounting | Yes |
| Model/type | |
| Function | Changeover contactor |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 1787,66 cm3 |
| weight | 1,016 kg |
| length | 11,3 cm |
| width | 14 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110246988 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 5,387 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 43389110246986 |
| Package 3 | |
| volume | 216000 cm3 |
| weight | 53,14 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 40 |
| qmin | 40 |
| um | PF |
