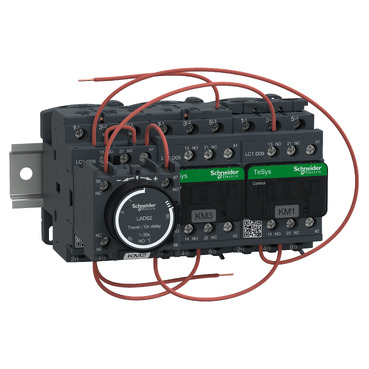

CONT. STEA TIUNGHI, SINA 230V 50 61

Cod produs: LC3D090AP7

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3389110545586

Demaror Stea-Triunghi Pe Sina - Tesys Lc3-D - Bobina 230 V C.A.

Connection
Type of electrical connection of main circuit	Screw connection
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Type of electrical connection for auxiliary- and control current circuit	Screw connection
Electrical
Rated control supply voltage AC 50 Hz	230 V
Rated control supply voltage AC 60 Hz	230 V
Rated operation power at AC-3, 400 V	7.5 kW
Rated operation power NEMA	3.73 kW
Rated operation current Ie at AC-1, 400 V	20 A
Rated control supply voltage DC	-
Voltage type for actuating	AC
Rated operation current Ie at AC-3, 400 V	9 A
Mounting/installation
Suitable for rail mounting	Yes
Protection
Degree of protection (IP)	IP20
Degree of protection (NEMA)	Other
Model/type
Function	Star-delta contactor
Package 1
volume	6768 cm3
weight	1,462 kg
length	23,5 cm
width	18 cm
qmax	1
qmin	1
um	C62
gtin	3389110545586
Package 2
volume	72000 cm3
weight	10,024 kg
length	60 cm
width	40 cm
qmax	6
qmin	6
um	CT
gtin	43389110545584

Afiseaza mai multe specificatii
