Descriere

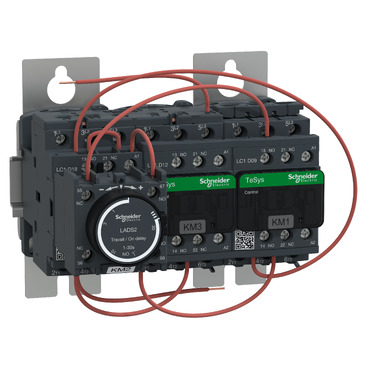

Demaror Stea-Triunghi Pe Placa De Montare - Tesys Lc3-D - Bobina 24 V C.A.
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 24 V |
| Rated control supply voltage AC 60 Hz | 24 V |
| Rated operation power at AC-3, 400 V | 11 kW |
| Rated operation power NEMA | 5.59 kW |
| Rated operation current Ie at AC-1, 400 V | 25 A |
| Rated control supply voltage DC | - |
| Rated operation current Ie at AC-3, 400 V | 12 A |
| Voltage type for actuating | AC |
| Mounting/installation | |
| Suitable for rail mounting | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Model/type | |
| Function | Star-delta contactor |
| Package 1 | |
| volume | 6488,112 cm3 |
| weight | 1,584 kg |
| length | 23,2 cm |
| width | 17,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110545630 |
| Package 2 | |
| volume | 352800 cm3 |
| weight | 55,93 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 27 |
| qmin | 27 |
| um | CT |
| gtin | 43389110545638 |
