Descriere

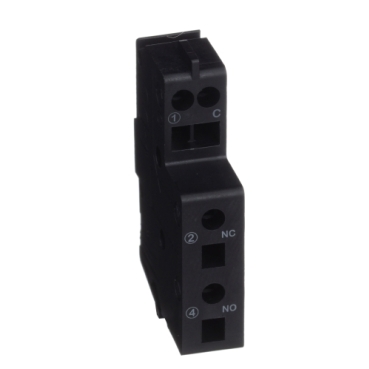

Contact Auxiliar (Arc) Of/Sd - 1 No/Nc
Documente
Fisa tehnica
Specificatii
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Spring clamp connection |
| Model/type | |
| Model | Integrable |
| Lamp holder | None |
| Number of fault-signal switches | 1 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Mounting/installation | |
| Mounting method | Other |
| Package 1 | |
| volume | 94,5 cm3 |
| weight | 25 g |
| length | 10,5 cm |
| width | 7,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606485444215 |
| Package 2 | |
| volume | 1750 cm3 |
| weight | 257 g |
| length | 25 cm |
| width | 14 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606485444212 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 6,3 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 220 |
| qmin | 220 |
| um | CT |
| gtin | 43606485444213 |
| Package 4 | |
| weight | 60,4 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 1760 |
| qmin | 1760 |
| um | PF |
